How To Replace Chart Recorders with a Dewesoft Digital DAQ System

In this article, we will discuss how you can replace oscillographic chart recorders with the SIRIUS digital DAQ (Data Acquisition System). By reading this article you will:

  • See how digital DAQ systems can be easier to use than old-fashioned chart recorders

  • Learn how digital DAQ systems provide enhanced capabilities

  • Understand the advantages of digital DAQ systems, including lower cost and reduced maintenance

Are you ready? Let’s begin…

Introduction

Everyone focuses on computer-based DAQ devices today, but there are still test and measurement applications where 1980’s style chart recorders are being used. Since the 1980s, as most industries moved away from chart recorders and replaced them with PC-based data acquisition products, engineers and technicians in certain applications continued using them. In fact, today you will still find a relatively large number of chart recorders in daily use at many power plants.

Why is this?

Nuclear power plant

Power companies (particularly nuclear ones) must document a wide range of parameters according to strict regulations. Chart recorders have long been the main way of documenting these. Forty and fifty years ago, the ability of these instruments to produce a paper output was a real convenience. There were few (if any) notebook computers available for testing, and most engineers didn’t even have a computer at their desks.

Today, computers that are connected (wired and wirelessly) to local and networked printers are everywhere, and accessible to virtually everyone. It’s much less expensive to print charts, graphs, and reports using office printers compared to the proprietary thermal paper that most recorders require. In addition, charts and graphs printed on thermal paper fade away over time and have to be photocopied onto office paper for data preservation.

Despite the fact that the availability of computers has changed dramatically, there is a long history of chart recorder usage at some power companies, which continue using them today. In this article, we will show how these recorders are being replaced with better, smaller, and more modern DAQ systems.

What is a chart recorder?

Chart recorders are electromechanical instruments that write data onto a moving strip or a fixed sheet of paper. There are several main types:

  • Strip Chart Recorders

  • Circular Chart Recorders

  • X-Y Recorders

  • Oscillographic Recorders

Strip chart recorders

Strip Chart Recorders are low bandwidth and often use colored ink pens to draw signals onto a roll or fanfold paper. Strip chart recorders are often permanently mounted into a panel, although benchtop models are also available for temporary use applications. Strip chart recorders are most often used to record data from electrical signals, temperature, and humidity in manufacturing and process applications.

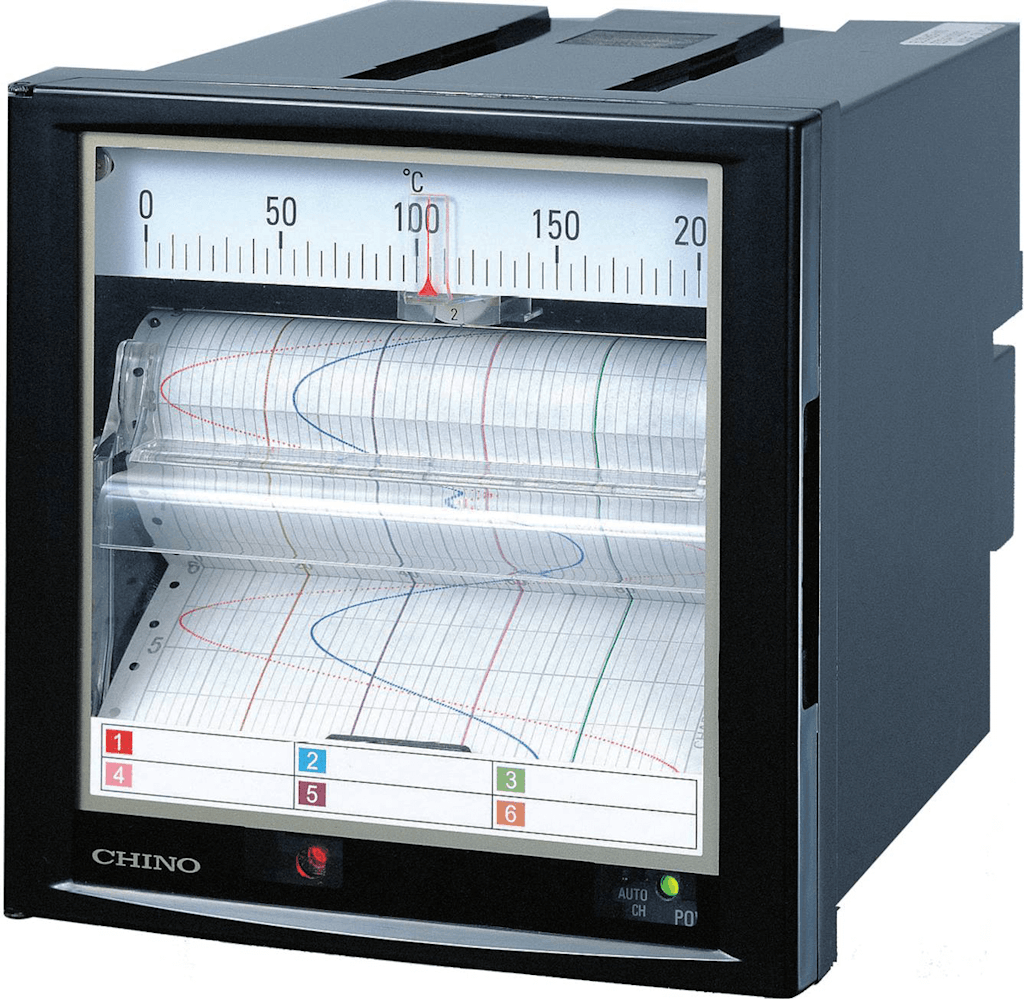

EL3000 strip chart recorder

Circular chart recorders

Circular Chart Recorders are written onto a single piece of round paper that rotates slowly, usually over a period of days or weeks. These instruments are mostly used for long-term documentation of temperature and humidity in manufacturing and process applications.

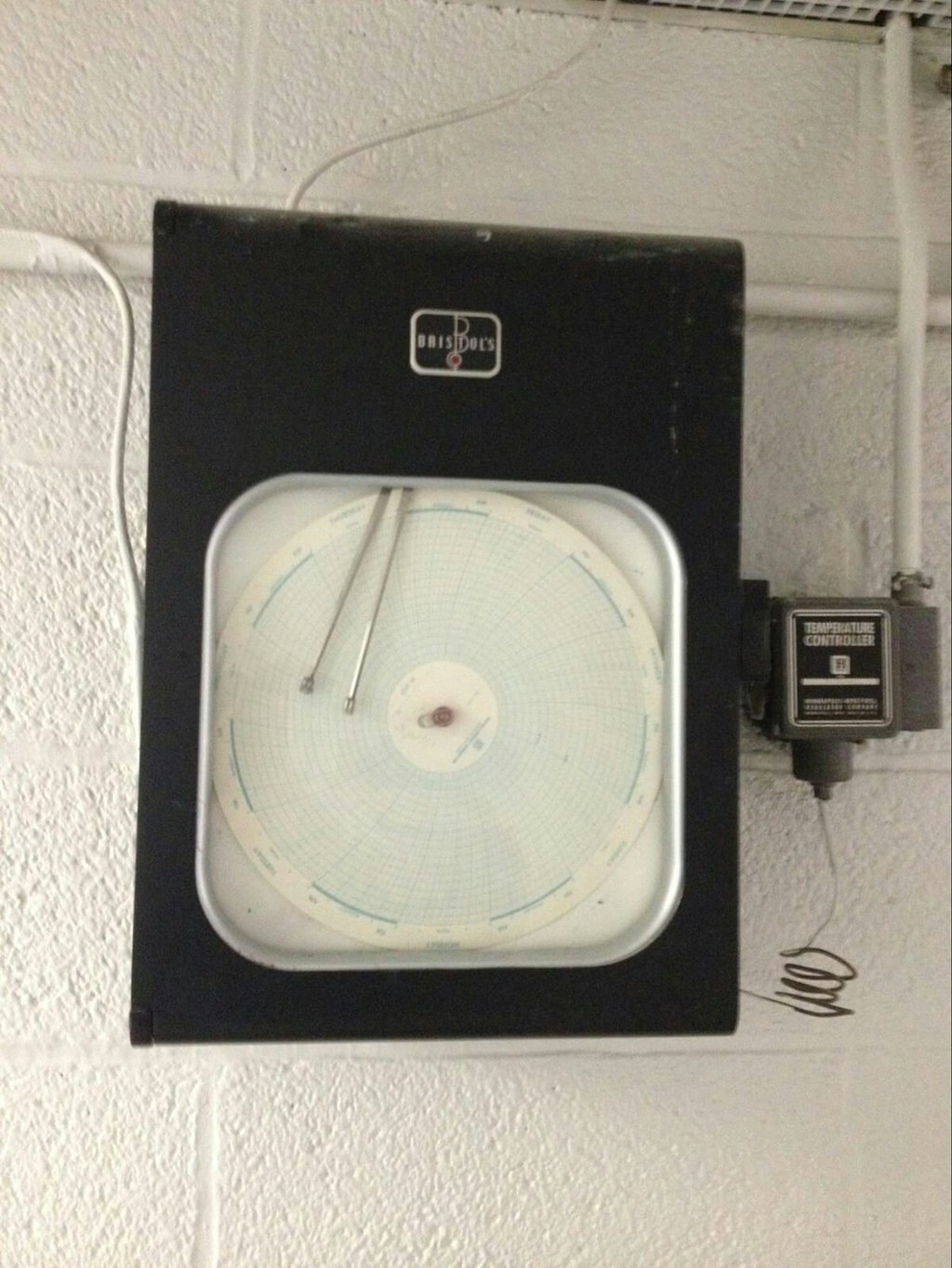

Circular chart recorder

X-Y recorders

X-Y recorders use one or more pens to draw on a fixed piece of rectangular paper. Unlike the other types mentioned, they do not plot data against time, but rather they plot one signal versus another. For example, they may be used in a process environment to plot pressure versus deflection, speed versus torque, etc.

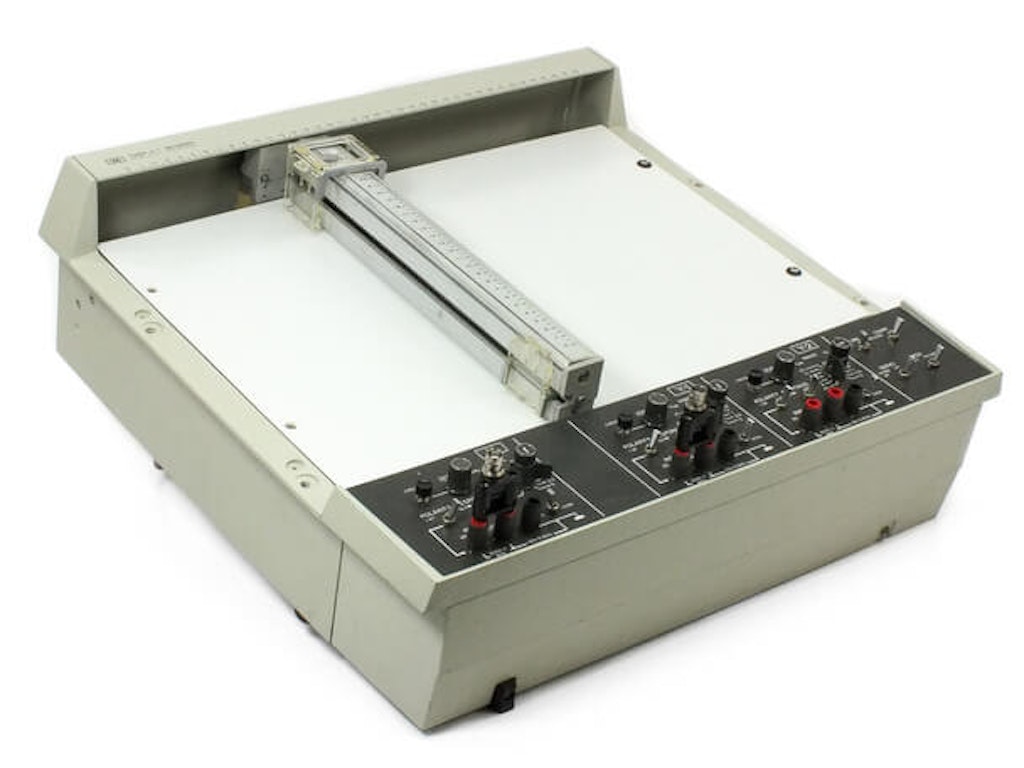

7046B Flatbed X-Y Recorder

There are also Data Loggers on the market, but they are meant for low-speed measurements and lack a paper output, so they are not part of this article. You can learn more about data loggers in this article:

Oscillographic chart recorders

In this article, we are focusing on replacing Oscillographic Chart Recorders, not the lower speed strip chart, circular or X-Y chart types mentioned above. Oscillographic recorders offer relatively high bandwidth and a Y-T presentation of data on moving paper.

Early oscillographic recorders had only a paper output, while today they also provide a video display of the data, and can capture data into RAM memory or a hard disk drive. The paper can be used to print during or after data recording. Some models even forego the paper entirely and are called “paperless recorders.”

Oscillographic chart recorders accept voltage inputs, and may often have signal conditioning circuitry that allows them to handle other physical phenomena, such as temperature, vibration, strain, and pressure. Some models can accept pulse inputs for measuring RPM and event counting applications.

Oscillographic chart recorders are usually configured with 8 or 16 analog signal input channels. Because they handle higher-speed data than strip chart recorders, oscillographic recorders typically employ a thermal array printhead that prints the data, text, and even the background grids onto thermally sensitive paper.

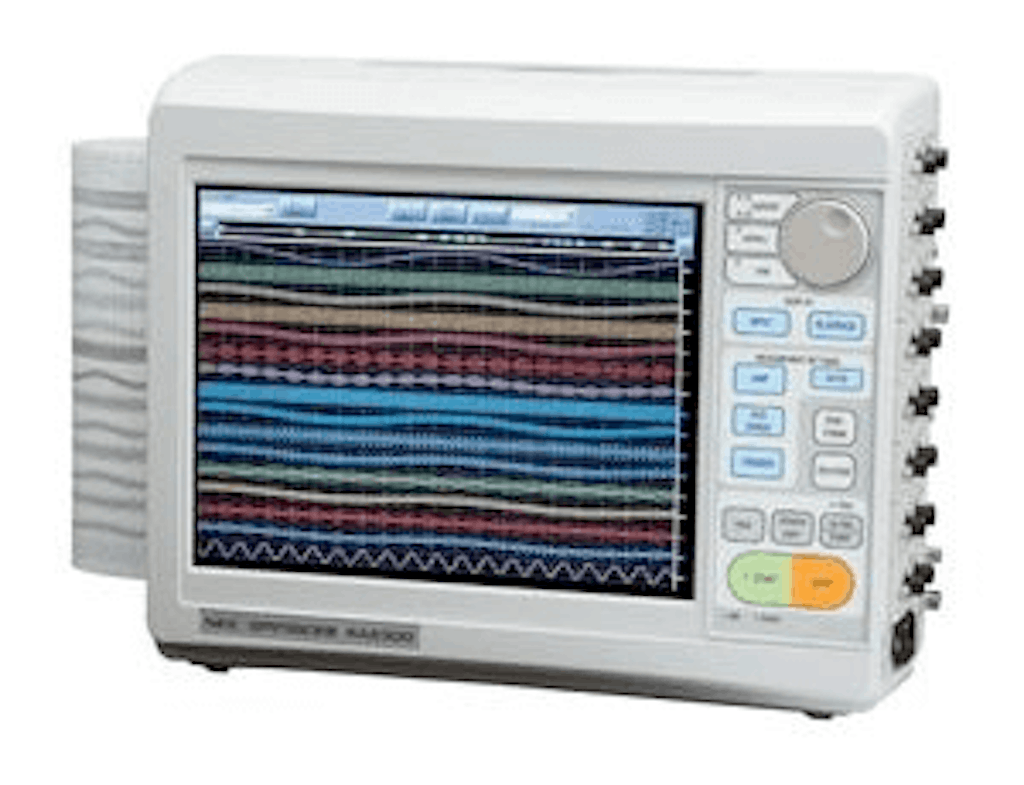

Typical oscillographic chart recorder

Oscillographic recorders are necessarily complex electromechanical devices. Their paper printing mechanisms require maintenance, during which time the instrument can’t produce reports. They also require rolls or packs of proprietary, thermal-sensitive chart paper.

A quick scan on the internet shows that the average price for a 100m (328 ft.) roll or fanfold pack of this paper can cost $50 (or €). This is drastically more expensive than common US letter and A4 size plain office paper.

Today’s chart recorders have incorporated a computer, hard disk storage, and a flat panel display into their chassis. This is fine, except that these are exactly the components that become obsolete very quickly, and are virtually impossible to replace or upgrade in these instruments.

Chart recorders are a familiar solution. They’ve been around for a long time. But there is a better way that costs less and provides a long list of advantages.

The SIRIUS® digital data acquisition system

The SIRIUS DAQ system from Dewesoft is a small, eight-channel DAQ module that connects to any Windows computer via USB. Each input channel is galvanically isolated, which means that the isolation is between channels and between channel and ground.

SIRIUS DualCore® amplifiers have two A/D converters running in parallel at different gains. This guards against unexpected signal level changes and increases the dynamic range to a previously impossible level greater than 160 dB.

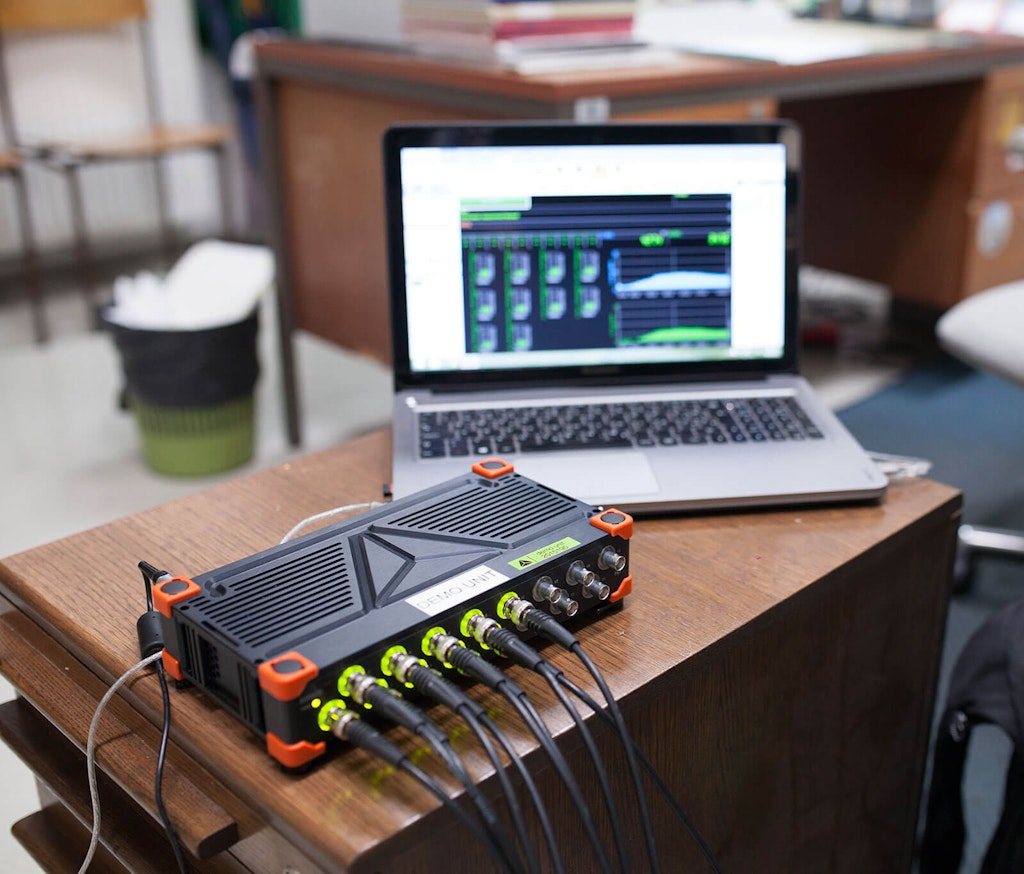

SIRIUS modular ICP IEPE

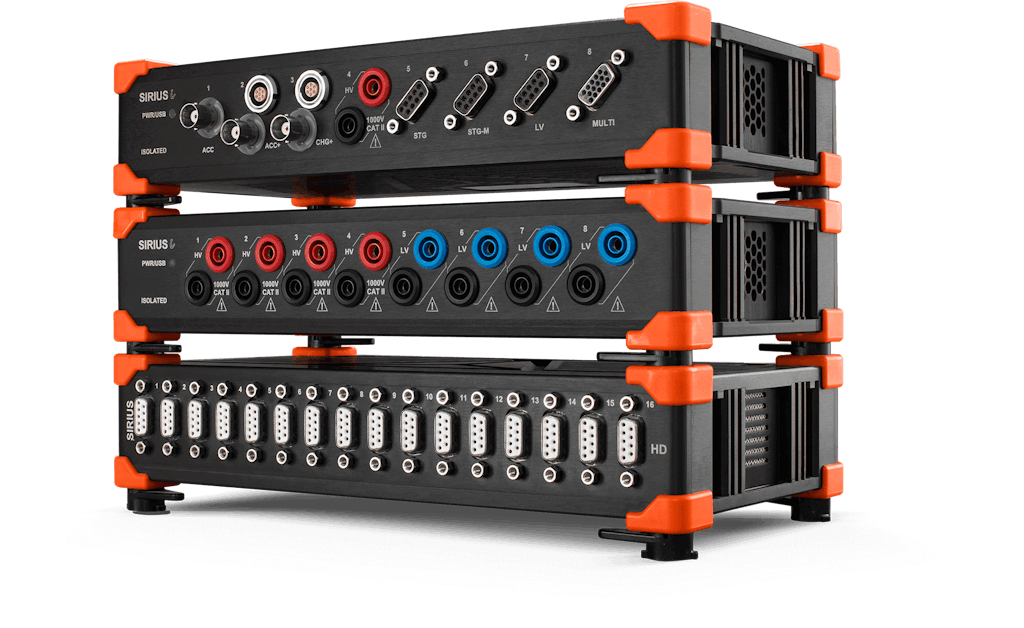

A SIRIUS modular “slice” is only 2.54 inches tall (64.5 mm), and 10.5 inches (266 mm) wide. Each SIRIUS slice is carved out of a single block of aluminum on a CNC machine. They are made to withstand the shock and vibration that is common in DAQ applications.

The small size and mass, and lack of moving parts of the SIRIUS DAQ hardware make it inherently more rugged than chart recorders. And because today’s notebook and desktop computers are so powerful yet inexpensive, by removing those functions from the DAQ hardware, their cost and complexity are further reduced. Also, without the computer hardware onboard, SIRIUS is less likely to become obsolete over time. It’s much easier and less inexpensive to replace the computer from time to time than to invest in a new DAQ system.

A standard DualCore® SIRIUS slice can be configured with any eight high-speed amplifiers. There are amplifiers available for:

  • High voltage (selectable ±1200 V and ±50 V)

  • Low voltage (selectable ±200 V, ±10 V, ±1 V, ±100 mV)

  • “UNI” (universal) inputs, including strain, pressure, voltage, IEPE acceleration and vibration, resistance, temperature, and more

  • Note that many amplifiers accept DSI adapters for even more sensor types, like current, LVDT, thermocouples, RTD sensors, and more.

  • IEPE accelerometers or microphones

  • Polarized condenser microphones

  • Charge accelerometers

Connectors are matched to the input type, so for example, high voltage inputs always use insulated safety banana jacks. Low voltages can be banana jacks, BNC, LEMO, or DB9 connectors. IEPE accelerometers typically use BNC connectors, and strain gauges/universal inputs use multi-pin connectors like DB9 or LEMO, and so on.

In addition, SIRIUS amplifiers can be configured with individual counter inputs for RPM, tacho, and other measurements like duty cycle, incremental encoders, and event counting.

Comparing an oscillographic chart recorder with the SIRIUS data acquisition system

/Chart Recorder SystemSIRIUS DAQ System
Analog channel countTyp. 8 or 168 or 16 (per slice)
ExpandableRarelyYes. Multiple slices can be connected to the same computer and synchronized
Top sample rate1 MS/s (typ.)DualCore and HD: 200 kS/sSIRIUS HS: 1 MS/sSIRIUS XHS: 15 MS/s
Resolution16-bit (typ.)DualCore and HD: 24-bitSIRIUS HS: 16-bitSIRIUS XHS: 24-bit up to 1 MS/s, then 16-bit
High voltage input±100mV to ±500V (typ.)Isolation specifications vary by manufacturerHV amp: ±50 V to ±1200 VGalvanic isolation: CAT III 600 V; CAT II 1000 V
Computer systemBuilt-in. Factory upgrade or replacement onlyExternal notebooks or desktop computers can be replaced easily
Data displayBuilt-in 12.1" TFT LCD (1024x768 pixels) (typ.)Today’s inexpensive notebook computers have 15.6“ 1920x1080 px resolution and are better.
Paper outputBuilt-in thermal array printer, 8.5” wide chart roll, or fanfold paper. Outputs are black and white only. Thermally sensitive paper is required. The paper must be stored in a temperature-controlled environment to avoid erasure.Standard office printers and paper are used. Outputs can be in full color if desired. Large-scale printers can be used for printing reports of any size. Print-outs are not subject to erasure from high temperatures.
Data storage64 GB HDD typ.Today’s notebook computers offer hundreds of GB and the TB of data storage. Additional TB drives can easily be connected via USB. Desktop computers offer even more storage.
ObsolescenceThe computer-related components become obsolete very quickly and are impractical to upgrade.Since the computer is completely separate, it can be upgraded or replaced inexpensively at any time.
Approx. price$25k< $20k (including computer)

Easy computer operation

The SIRIUS includes a license for DewesoftX software, which is included at no cost. This DAQ software has won numerous awards all around the world for its ease of use and graphical nature. DewesoftX is installed on your Windows computer, which connects to the SIRIUS via a single USB cable, creating a complete measuring system. Because the license is inside the SIRIUS hardware, you can install the software on multiple computers and use any of them for recording, without licensing issues.

So, each user can connect their own computer to operate the SIRIUS, if they want to. You may also wish to use one dedicated computer to run the SIRIUS, but then move the data to your desktop computer for replay, analysis, and report generation. There is no license required on computers used for this purpose.

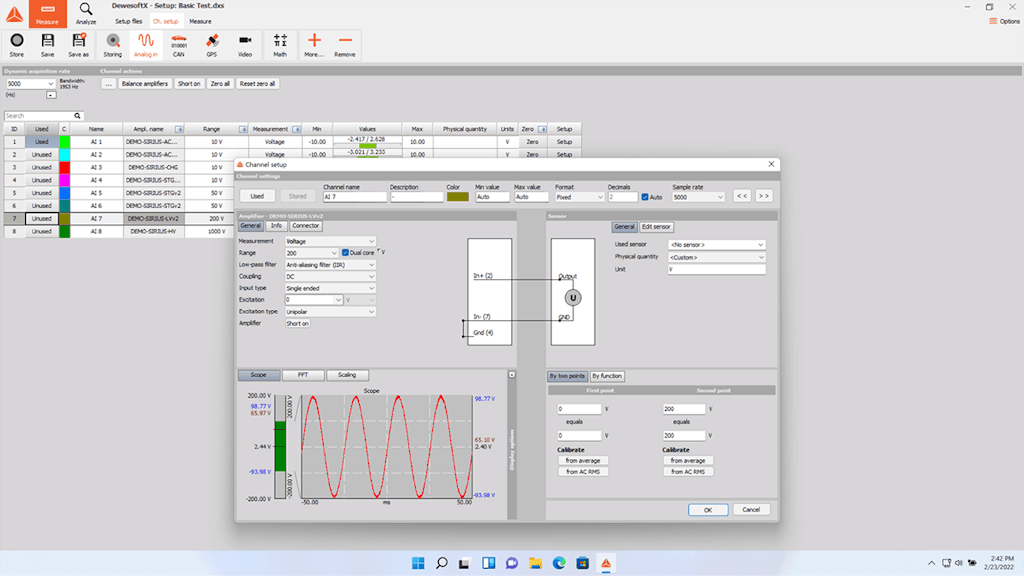

Graphical channel setup screen in DewesoftX

DewesoftX provides a graphical channel setup. There are no buttons or switches on the SIRIUS hardware: everything is done in the software, including range and filter selection, acquisition speed, triggering, and more.

Once the channels are set up, the software automatically creates a chart recorder view like the one shown below:

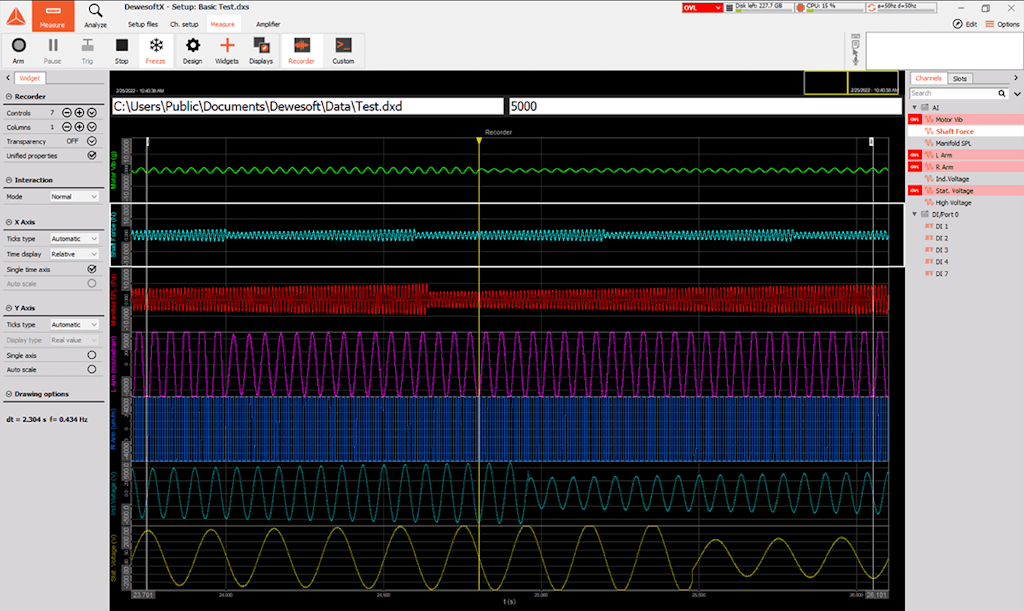

Standard chart recorder screen in DewesoftX

You are free to create other displays, using a wide variety of graphical widgets, like analog and digital meters, scope graphs, and more.

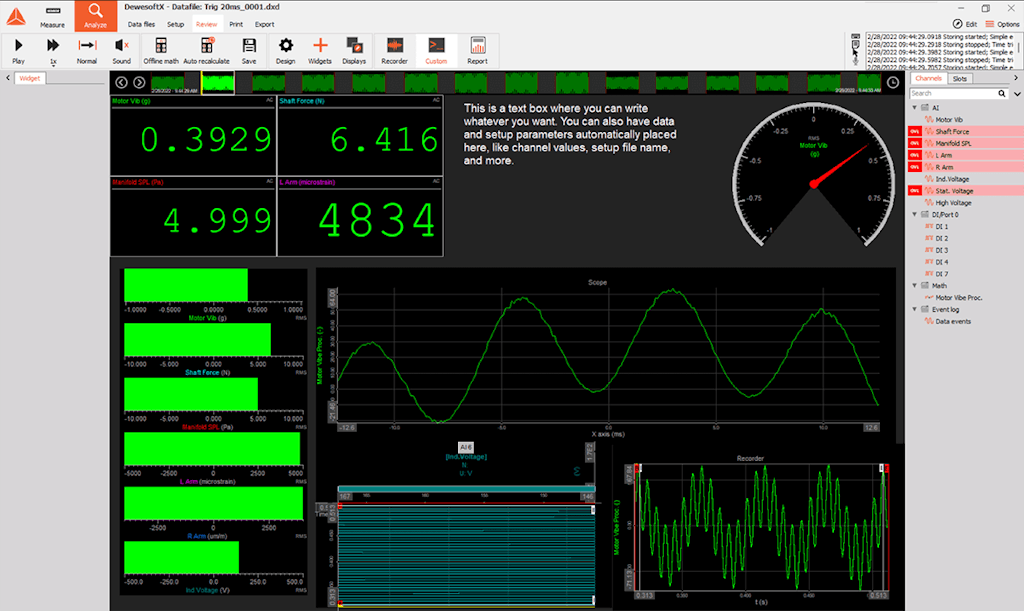

Unlimited user-configurable displays in DewesoftX

You can even create displays that are intended for printing on your black and white or colour office printers, for report generation:

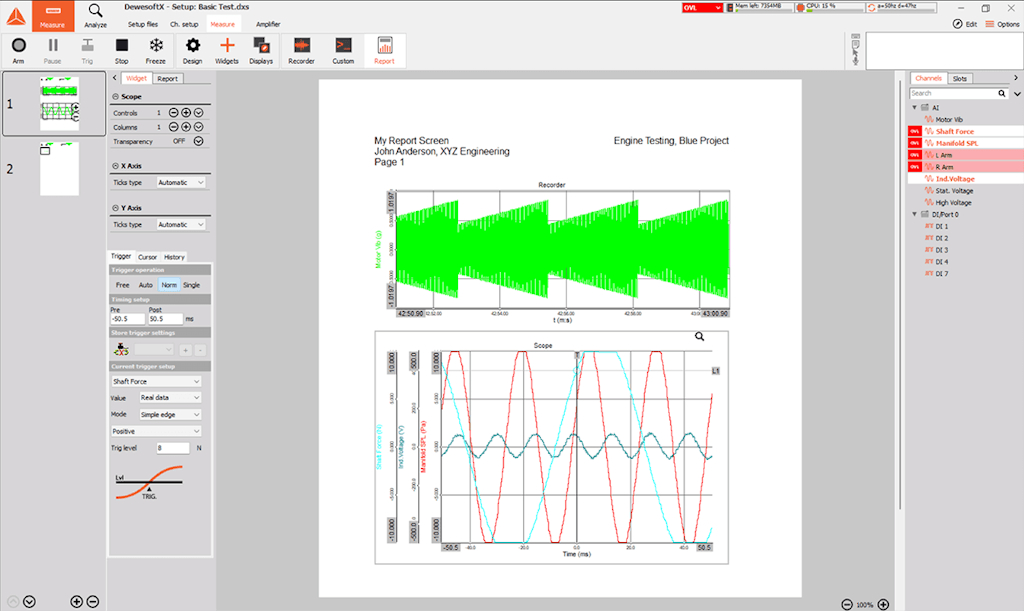

Printable reports are easy to create in DewesoftX software

High voltage and high isolation

In power applications, isolation is extremely important. The SIRIUS HV (high voltage module) directly accepts voltages up to ±1200 V and is galvanically isolated.

Dewesoft logo

Galvanic isolation means that the isolation works between and among all channels (“channel-to-channel) AND between each channel and ground (“channel-to-ground”). This is the best possible type of isolation, especially when dealing with potentially dangerous voltages at power plants.

Learn more:

When and Why to Use Isolated Amplifiers?Learn why the usage of isolated amplifiers is highly recommended, in order to ensure reliable measurements, and protect your instrument from damage.

The SIRIUS HV amplifier provides over-voltage protection of 1.8 kV RMS (IN+ to IN-), and 1.4 kV RMS (INx to GND). It is isolated to 1000 V under CAT II, and 600 V under CAT III.

Even the SIRIUS LV low voltage module, which accepts signals from ±100mV to ±200V, is galvanically isolated to 1000V, with over-voltage protection up to 300 V when in the ±200V measuring range.

There are other SIRIUS DualCore amplifiers made to handle other signals and sensors. These include strain gauges, accelerometers, microphones, LVDTs, thermocouples, RTDs, and more. They also include 1000 V galvanic isolation.

Advanced triggering

One of the most important features of power plant applications is triggering. This is often used in looking for breaker faults and trips. Instead of continuously recording for hours or even days in order to capture a breaker trip, you can configure the system to record only when the breaker actually does trip.

This saves disk space by only capturing the data that you need. The system uses a circular buffer while it’s waiting for the fault, so it can be configured to capture a certain amount of data before the event, and then a certain amount of time after the event. You can set it to capture once and stop or to reset itself automatically and capture any number of events.

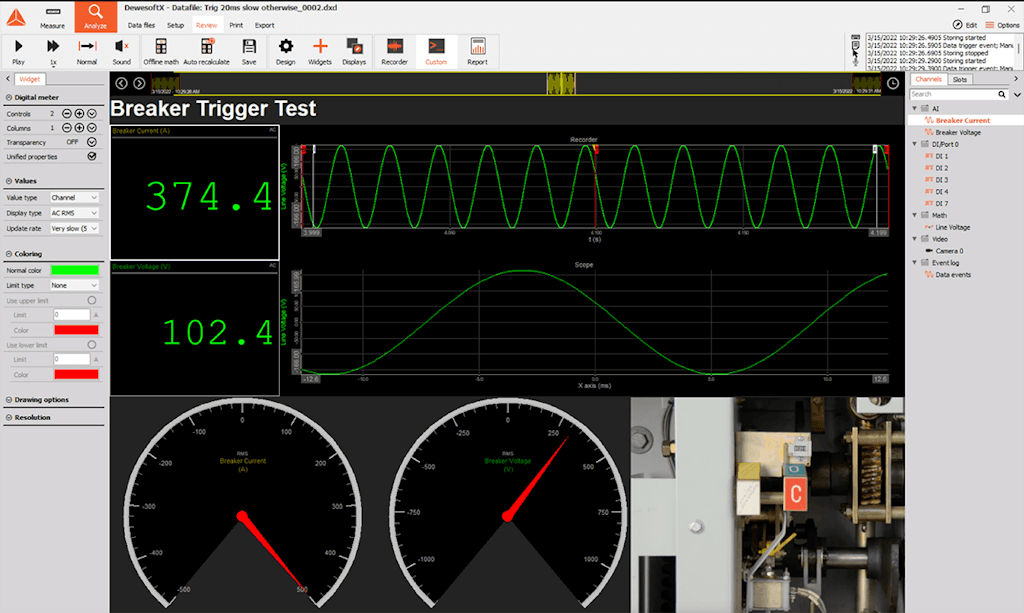

Typical breaker test setup, incorporating video

Adding video to your data

Applications such as PRV (pressure relief valve) testing, can benefit from the video being added to the recording. For simple applications, a standard office webcam can be connected to the computer that is controlling the SIRIUS DAQ system. These DirectX webcams are a very inexpensive way to add a visual reference to any test. They are not terribly fast, however, and they are software synchronized.

When higher speed, hardware synchronized video is needed, you can choose from a selection of DS-CAMs and add them to your system.

Dewesoft DS-CAM high-speed synchronizable video camera with on-board compression

DS-CAM cameras provide high-speed video with up to 333 fps (frames per second) at full HD resolution. Lowering the resolution allows you to achieve up to 600 fps. DS-CAM cameras have onboard, real-time JPEG compression that allows real-time streaming directly to the computer's hard drive. Unlike webcams, DS-CAMs are hardware synchronized frame by frame to the SIRIUS chassis using a thin sync cable.

Learn more:

Easy expansion

When more than eight high-speed analog channels are needed, additional SIRIUS slices can be added to the system. They are synchronized with each other and connected to the same computer. They can even be interlocked and stacked together, or kept separate, as required.

Ruggedized USB hubs are available so that you can add more SIRIUS slices than you have USB ports for. You can connect SIRIUS slices together to create a system with more than 100 high-speed channels!

Three SIRIUS slices are connected together using built-in locking clips, creating a system with 32 analog channels and multiple digital inputs

Summary

As the era of the oscillographic recorder draws to a close, engineers and technicians must find a replacement that not only does the job, but is affordable, rugged, easy to use, and expandable.

A single SIRIUS slice combined with a notebook (or desktop) computer running DewesoftX software is the ideal replacement. It meets all of the requirements and goes further, adding modular and inexpensive channel expansion and synchronized video recording capabilities. It represents the optimal way to replace those old oscillographic chart recorders, save money, and move your testing to the next level.
