Structural Health Monitoring of BridgesBridge monitoring systems

Dewesoft data acquisition systems are used in structural health and seismic bridge monitoring projects ranging from structural mechanics to continuous monitoring of large, complex bridge structures.

The monitoring systems provide distributed, high-channel-count and remote monitoring for highway overpasses, roads, buildings, and bridges. We provide a total solution from DAQ systems and data loggers to sensors and monitoring software.

Dewesoft bridge structural health monitoring

IEPE

Strain and Stress

Full Bridge

Half Bridge

Quarter Bridge

Voltage

Force

Video

EtherCAT

Fanless

Temperature

IP67

Structural Health Monitoring of Bridges highlights

Total Turn-key Solution

Dewesoft bridge monitoring solution offers complete and highly accurate data acquisition systems, data loggers (including wireless dataloggers), and the possibility to connect all necessary sensors that are used info structural health monitoring projects.

Totally Distributed System

Dewesoft DAQ devices are designed to be distributed under any condition. EtherCAT technology allows devices to be placed near the sensors and connected with a single cable for power, data, and synchronization. The cable can span up to 100m between DAQ nodes or virtually unlimited using EtherCAT to fiber optic converters.

Any Sensor

Input amplifiers offer support for any strain gauge sensor, low-frequency accelerometer sensors for seismic activity monitoring, temperature, and weather factors.

Perfectly Synchronized

All data channels are synchronized well below microsecond accuracy, required for deep structural analysis.

Amazing Dynamic Range

With dynamic ranges up to 160dB, our customers are claiming they can see fish hitting the structure.

Wide Variety of Configuration

From extremely rugged IP67 units with very high dynamic range to cost-effective solutions offer a tailored approach for virtually any structure with the possibility to monitor and analyze thousands of data points.

Powerful Software

DewesoftX software offers real-time diagnosis, pre-processing, and data reduction with powerful math. A wide variety of storage options are possible with powerful visualization choices.

Open Interfaces

Using DewesoftX, data is available in a wide variety of formats, from exported data to live OPC UA interface or modern cloud data services.

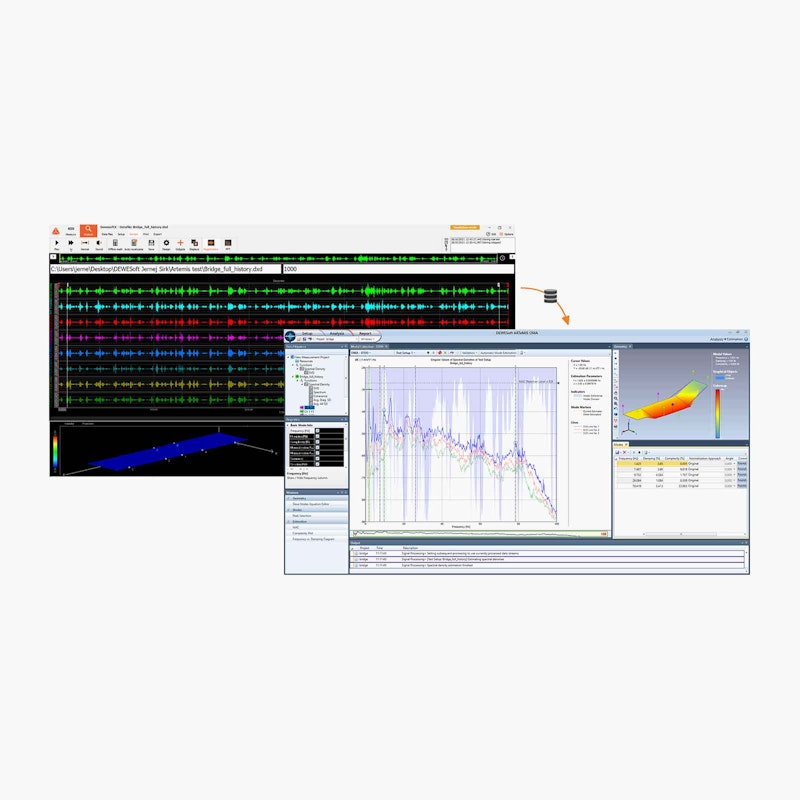

Operational Modal Analysis (OMA)

Use recorded time data to estimate modal models. With OMA the dynamics of the structural vibrations can be determined directly from the sensor input data via the Dewesoft ARTeMIS OMA software.

Remote Operation

The entire system can be remotely operated offering triggered storing, alarms, and other monitoring features with capabilities to store data locally or at distant remote locations.

Software included

Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.

Dewesoft quality and 7-year warranty

Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.

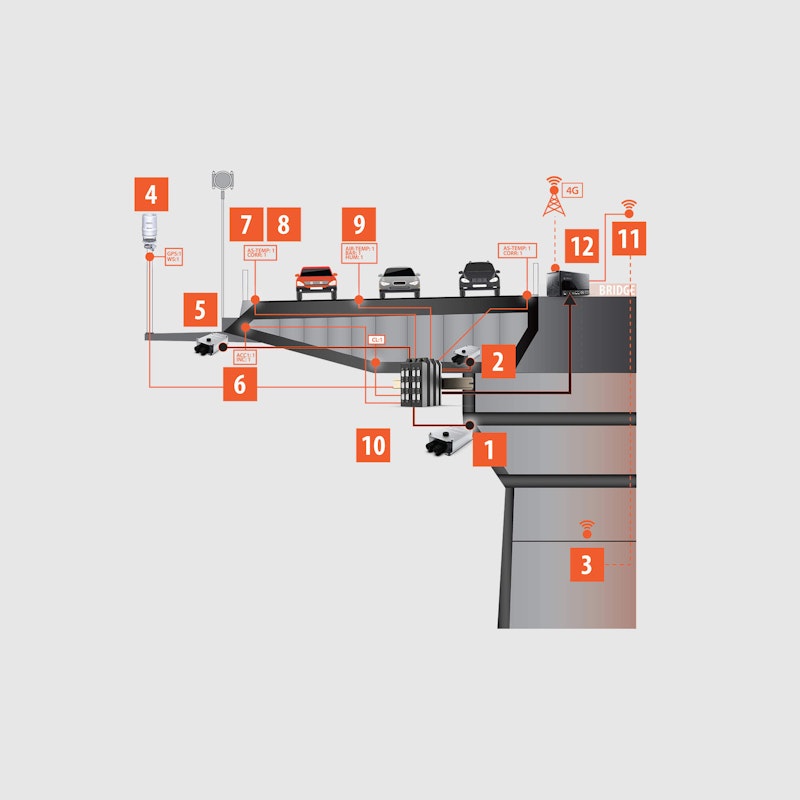

Bridge Monitoring Instrumentation

Sensors:

1 - Acceleration and inclination measurement: Dewesoft IOLITEdiw-3xMEMS-ACC-INC a Triaxial MEMS accelerometer and static inclinometer with EtherCAT interface, 8 g measurement range.
2 - Displacement measurement: Dewesoft IOLITEdiw-3xMEMS-ACC a Triaxial MEMS accelerometer that precisely measures displacement by integrating acceleration twice.
3 - Static Strain measurement: Embedment vibrating wire strain gauge designed to be embedded into concrete structures for monitoring static strain of concrete.
4 - All in one weather station: The weather station provides a measurement of relative humidity, temperature, wind speed & direction, brightness, and twilight.
5 - Dynamic strain gauge: Bolt-on dynamic strain gauge designed to be mounted on the structure.
6 - IOLITEdiw-3xMEMS-ACC: Triaxial MEMS accelerometer with EtherCAT interface and 8 g measurement range.
7 - Asphalt temperature measurement
8 - Corrosion sensor
0 - Air temperature and humidity measurement

DAQ devices:

10 - IOLITEd - From single-channel to multi-channel distributed data acquisition devices capable to read data from accelerometers, dynamic strain gauges, thermocouples, RTDs, weather stations, potentiometers, etc.
11 - VW Wireless data logger - For reading the data from vibrating wire sensors.
12 - IOLITE LX - An embedded data acquisition system and data logger all in one.

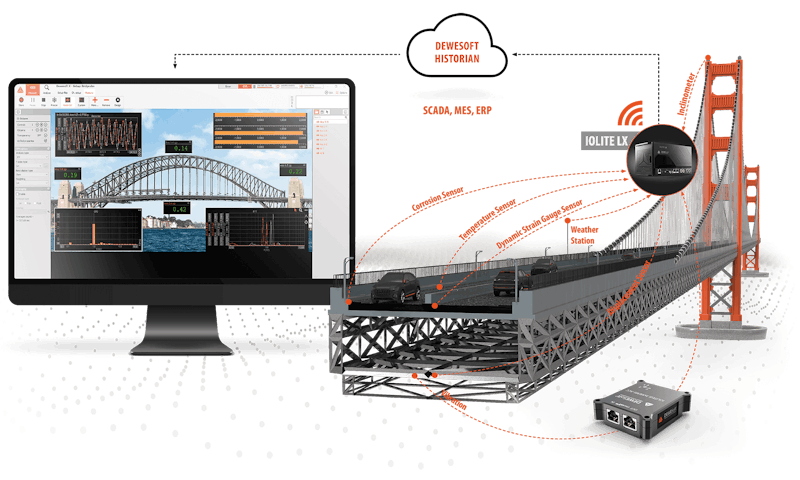

System Architecture

Dewesoft Data Acquisition systems with their wide range of analog and digital inputs, offer support for almost any kind of 3rd party sensor used in Structural Health Monitoring.

All EtherCAT compatible devices (IOLITE, IOLITEd, KRYPTON) can be connected to the same network giving the possibility to build a virtually unlimited channel chain by using a single cable delivering power, synchronization, and data. The whole EtherCAT chain is synchronized to 1us no matter the distance. Node-node distances can be up to 100m.

All the raw data from data acquisition devices are collected and processed by measurement units running the DewesoftX data acquisition software. Processed data is sent over the TCP/IP network to the factory or cloud server. Data can be accessed and viewed on the client PC or stored in the time series database (Historian) and served to SCADA systems or Cloud Software using standard interfaces such as OPC/UA or XCP to truly support Industry 4.0 applications.

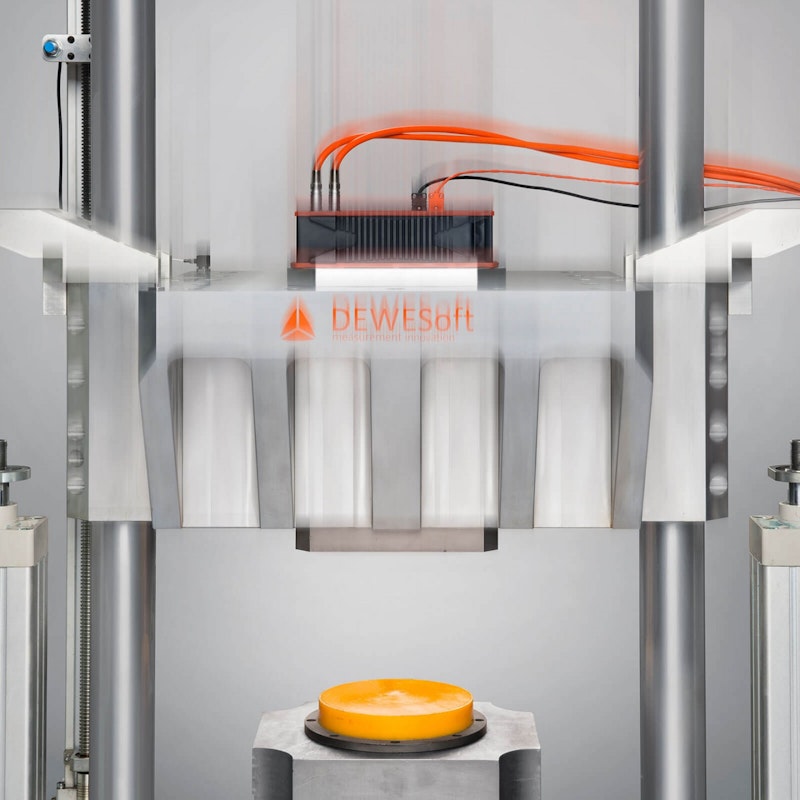

Rugged and Distributed Data Acquisition

Dewesoft provides very rugged data acquisition units that can work flawlessly in a wide temperature range, under big stress, and even in very humid and wet environments.

Data acquisition units can easily be distributed so you can place them close to the sensor placed on the structure. This means shorter sensor cabling which increases signal quality, and decreases the chances of cabling errors and cabling cost. DAQ systems can be distributed down to a single channel.

EtherCAT protocol provides a connection of up to 100 meters between DAQ nodes. Single power is used for data, power, and synchronization. This can be further expanded using EtherCAT to Fiber Optic converters.

Remote Data Monitoring and Storage

DewesoftX software offers easy and flexible configurations for your data flow. You can store data locally near the structure itself, or use any of the standard interfaces like OPC UA to send and store data remotely in the cloud or database. There is really no restriction on how to set up your data flow.

Our flexible licensing allows you to connect an unlimited number of view clients to monitor data in real-time without any additional cost.

Dewesoft Historian: Time-series database storage with real-time dashboard analytics

The Historian software package provides a time-series database for long-term data storage. The database can be either located locally, on the remote server, or in the cloud. The solution is based on the InfluxDB time-series database open source project.

Historian provides several useful features for your historic data:

Raw and reduced data: while raw data is always stored on the measurement unit for an in-depth analysis, a Historian takes the role of long-term reduced data storage in the cloud database.
Data safety and retransmit: if the connection between the measurement hardware and the database is lost, the data is safely stored locally on the measurement unit and then retransmitted to the database when the connection is available.
Trending and Analysis: Historical data can always be recalled and loaded from the Historian database and used for trend analysis as well as for in-depth analysis and root cause identification.

Structural Monitoring Applications

Dewesoft structural monitoring solutions can be tailor-made and configured for all sorts of structural health monitoring applications. Some of the common applications we are delivering:

Bridge health monitoring
Overpass monitoring
Dam monitoring
Monitoring during construction
High-rise building monitoring

Reference Projects and Case Studies

Dewesoft Structural Health Monitoring projects have been successfully applied in many locations and are providing high-fidelity data for decision-making. Here are just some of the reference case studies:
