Structural Health Monitoring of the Railway Viaduct

A railroad bridge in Saudi Arabia was observed for around 80 hours to evaluate its structural health - the monitoring system was based on Dewesoft integrated sensing devices. The prime objective was to acquire measurements before, during, and after the crossing of trains on the bridge. The obtained specifically quantified outputs allowed diagnostics to ensure that the bridge maintains its solid structural integrity while in use.

Structural health monitoring is a tool to ensure the integrity and safety of an engineering structure - detecting the evolution of damage and estimating performance deterioration. Sampled response measurements provide insights into changes to the materials and geometric properties and allow an analysis of the structure over time. The ongoing process of monitoring the mechanical state of structures provides useful maintenance input and can ultimately prevent disasters.

In this case, the monitoring was carried out by ACTS, Advanced Construction Technology, Services on behalf of a customer. ACTS provides construction consultancy services specializing in the materials and geoengineering fields. ACTS currently operates throughout the Middle East, Africa, and Southeast Asia, headquartered in Beirut, Lebanon, and with three local offices in Saudi Arabia.

The Arabian desert is crisscrossed by rivers that are not really there - so-called wadis, dry water-formed ravines that only fill up with water during the rainy season. The Urayja Viaduct - also named OW8 (Over Wadi No. 8 Bridge) - is one of more such bridges crossing wadis found across the Kingdom of Saudi Arabia. It is located within the central Saudi Arabian desert in the region of Ḩāʼil near the small town Urayja - some 565 km or 351 miles North-West of the capital city, Riyadh.

OW8 comprises seven spans of four post-tensioned reinforced concrete girders capped with a reinforced concrete deck and parapet walls. Each span is 20 m long, there are six piers and two abutments. Bearings are bed stones/ plinths with anchor bars. The circular plates on the girder and bed stone are suspected to be of an elastomeric material but the details on the as-built drawings are not clear.

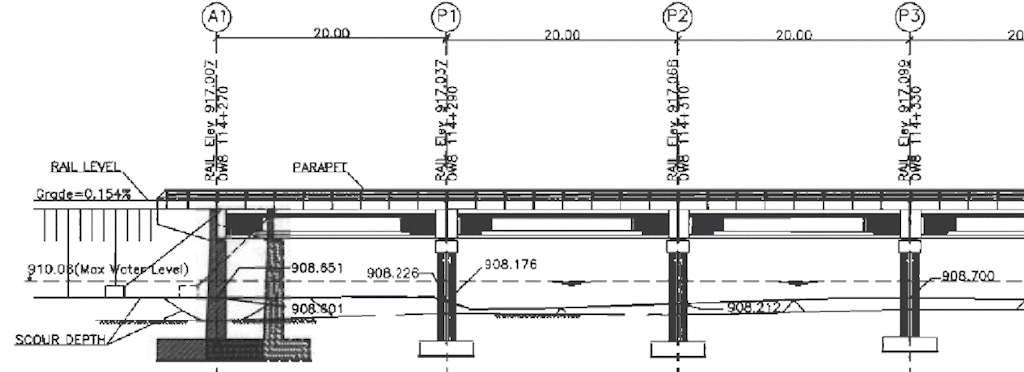

Figure 1. Bridge design – the Low Mileage Elevation.

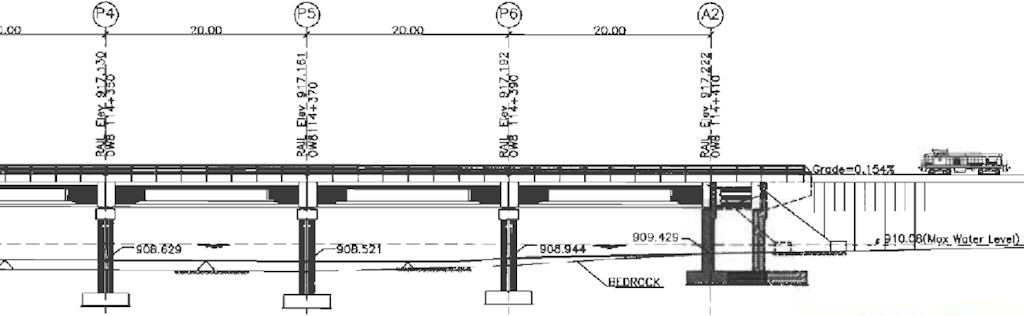

Figure 2: Bridge design – the High Mileage Elevation.

The bridge was constructed in 2013, and the as-built drawings are dated January 2014. The section scrutinized for this study was the span between pier 4 (PRT 4) and pier 5 (PRT 5) where the sensors were placed on the soffit and the web of the girders.

The deck comprises a reinforced concrete slab with a walkway and there are two parapet walls cast into the deck along with a ballast retaining wall.

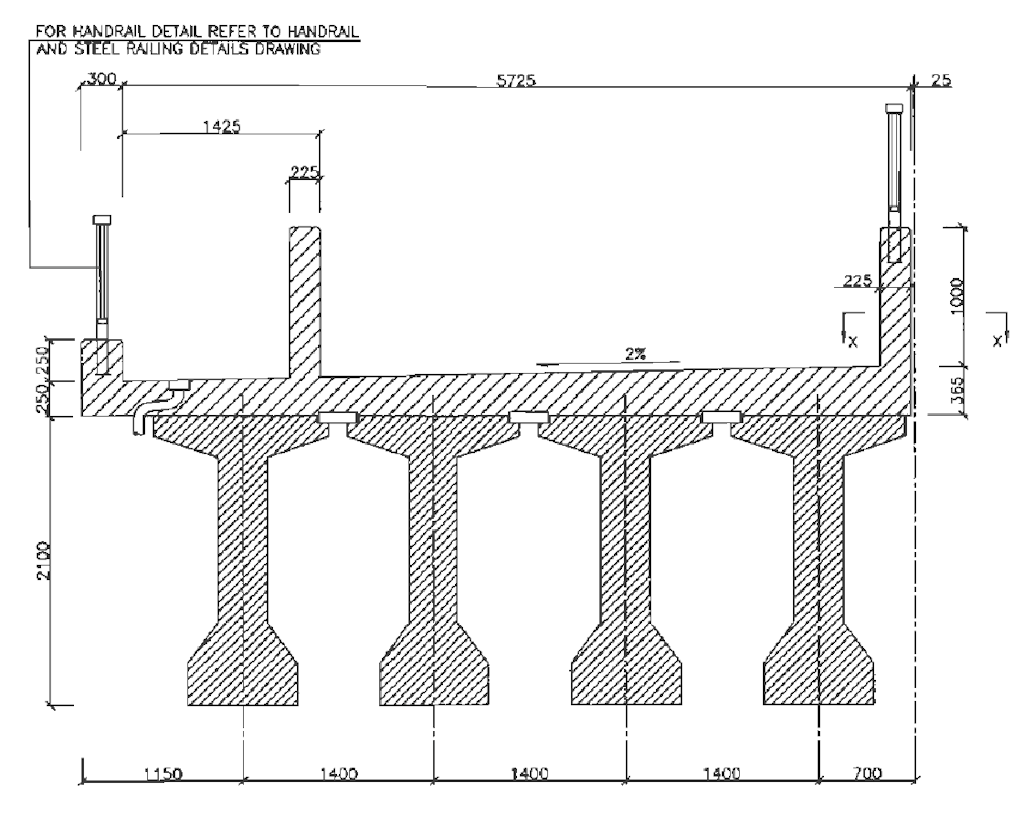

Figure 3. Cross-section of girders and deck – the bridge includes a reinforced concrete slab with a walkway (left).

Measurement setup

To monitor the structure for the prescribed response metrics, a state-of-the-art monitoring system was installed. It included:

  • An IP67 cabinet

  • Industrial PC computer

  • 24 V power supply - to power the industrial PC

  • Three IOLITE power injectors - IOLITE-Power-Injector

The data acquisition system was composed of the following sensors:

  • Six 3-axial Accelerometers - IOLITEi-3xMEMS-ACC

  • Six 2-axial Tiltmeters - IOLITEi-3xMEMS-ACC-INC

  • Eight Bolt-on Strain Gauges - IOLITEi-1xSTG

EtherCAT protocol allows the IOLITE devices to be easily distributed across large structures. Devices can span 50m node-to-node with only one cable running between them for signal, power, and synchronization.

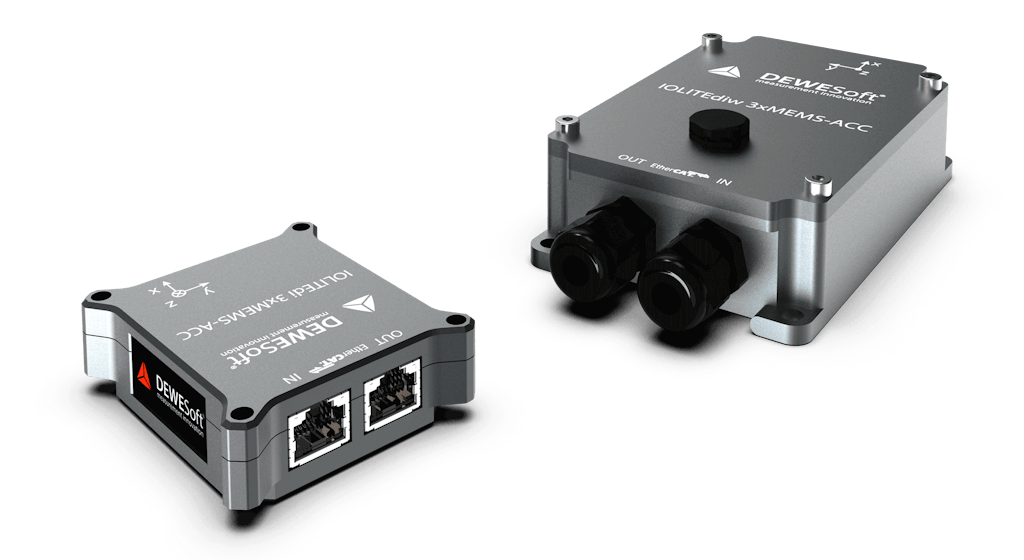

Dewesoft IOLITEdi-3xMEMS low-noise 3-axial MEMS accelerometers

Devices are daisy-chained with a standard Ethernet network cable. It is recommended that the cable is shielded (SFTP, CAT5e) and has a minimum of 24 AWG wire thickness. The cable must have 4 wire pairs. The maximum distance node-to-node is 50 m.

A passive PoE (power over ethernet) power injector is necessary for merging the EtherCAT signal and power into a single cable.


IOLITE-3xMEMS-ACC is an integrated sensing device. Acceleration is measured by a triaxial MEMS accelerometer inside the device that is tightly attached to the mechanical chassis. Analog to digital conversion is done inside the device, eliminating any noise picked up in analog cabling. A microprocessor inside the device transmits the acceleration samples over the EtherCAT protocol.

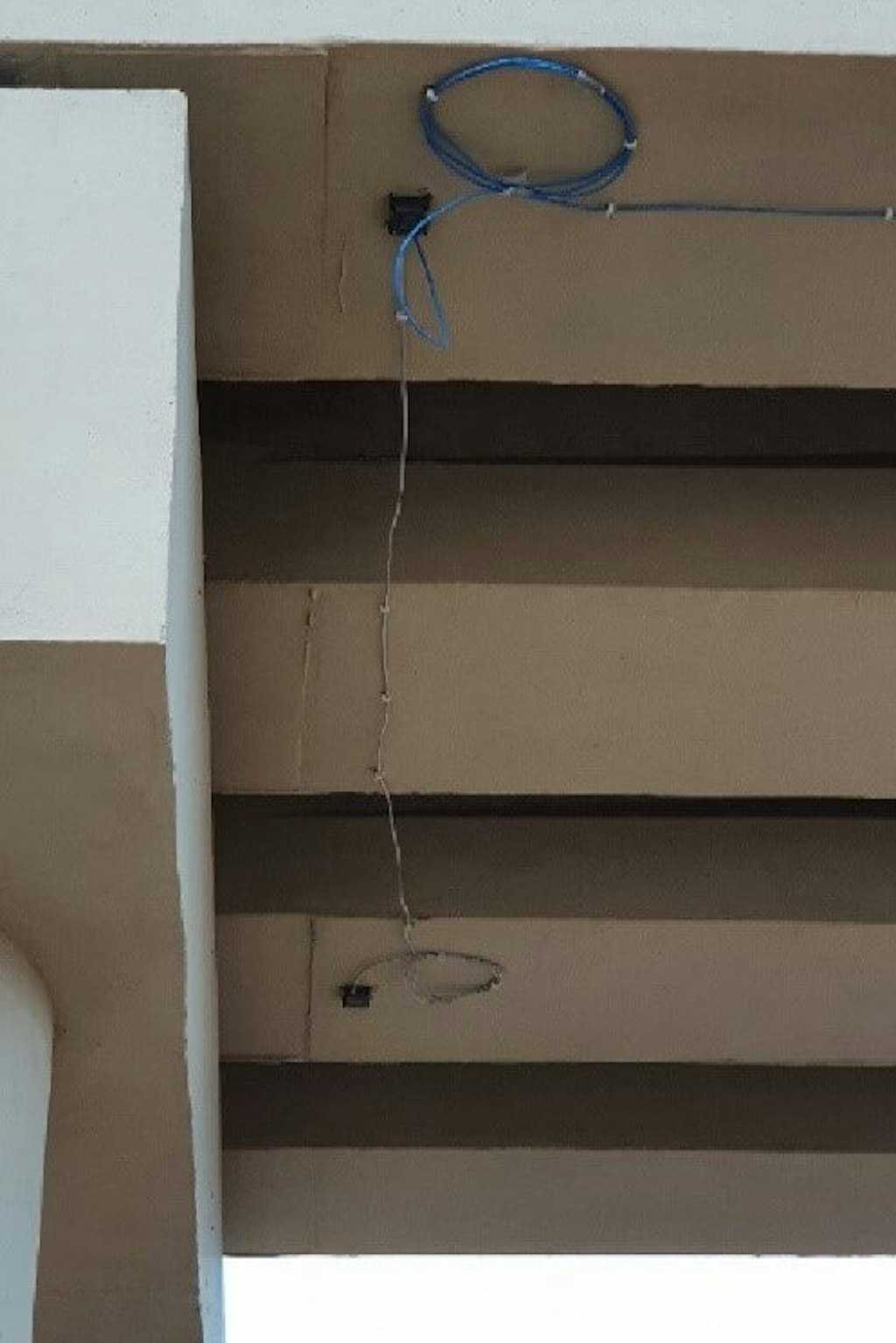

Figure 4. Accelerometer IOLITEdi-3xMEMS-ACC mounted on the girders of the bridge.

ow levels of vibration need to be measured which requires an accelerometer with extremely low noise. Even though low frequency is of interest, it must be possible to detect even small changes in the frequency of vibration.


IOLITE-3xMEMS-ACC-INC works as a two-axial inclinometer to measure the roll and pitch angles - about its X and Y axes - with the Z-axis positioned vertically. Tilt in two axes is measured by a 2-axis MEMS tilt sensor inside the device that is tightly attached to the mechanical chassis.

Analog to digital conversion is done inside the device, eliminating any noise picked up in analog cabling. A microprocessor inside the device transmits the angular data samples over the EtherCAT protocol.

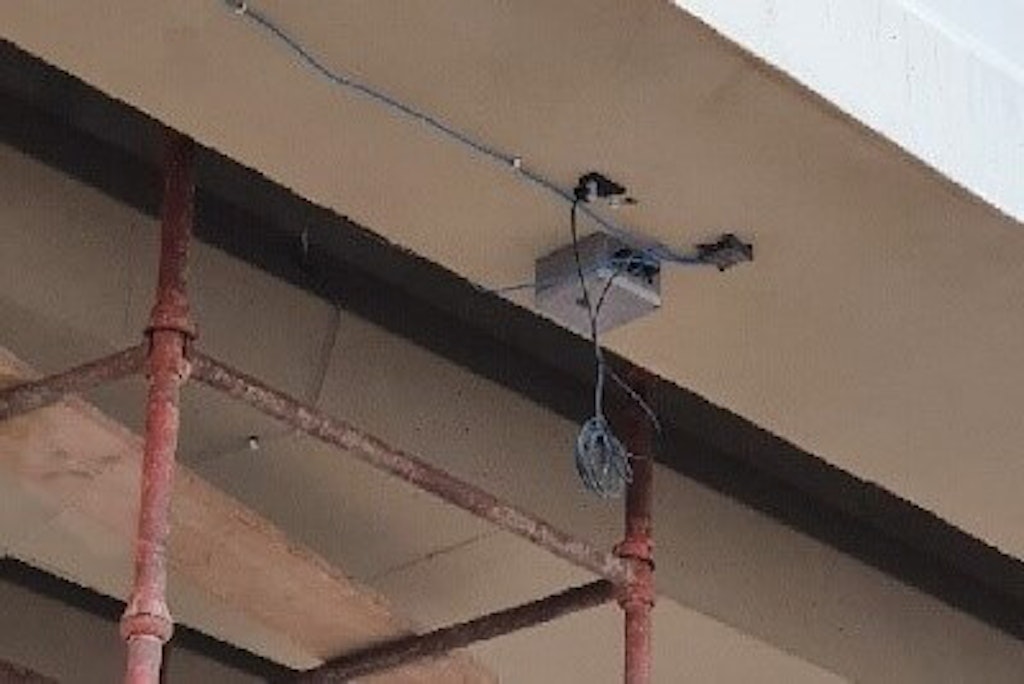

Figure 5. Tiltmeter/inclinometer IOLITEdi-3xMEMS-ACC-INC mounted on a bridge girder soffit

Strain gauge sensors

The SNS-STG is a bolt-on strain gauge sensor. It includes a strain gauge sensor integrated into a housing that is ready to be bolted on the structure. The rated output from the sensor is 1.5 mV/V for 1000 micro-strain.

The sensor is connected to the IOLITE data acquisition device named IOLITE-1xSTG transforming analog data into digital and communication of the data over the EtherCAT protocol.

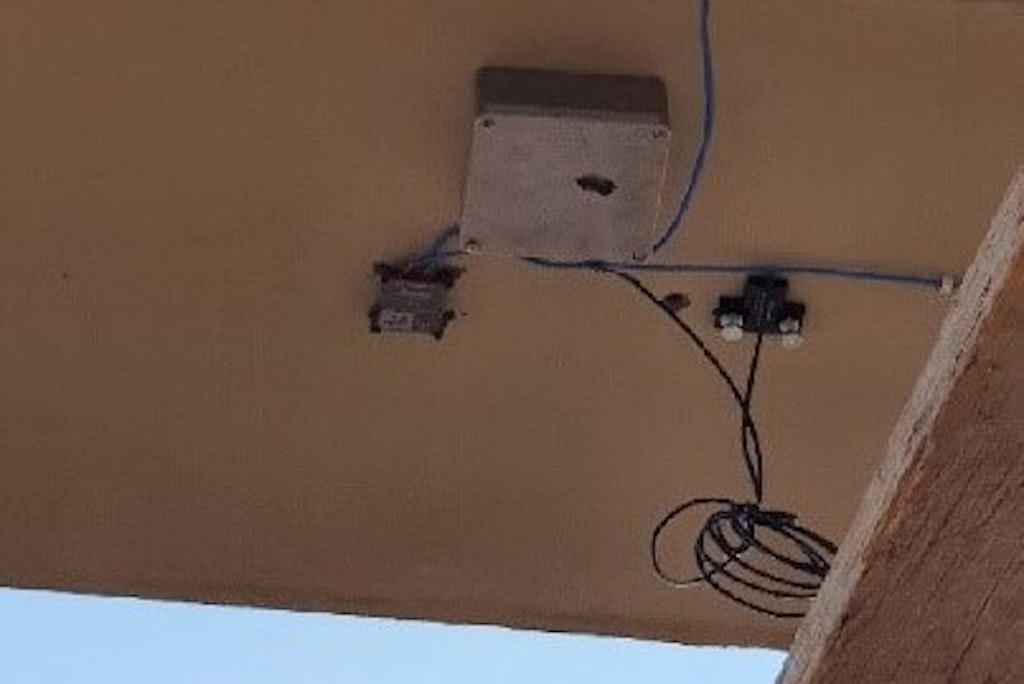

Figure 6. Strain gauge sensors SNS-STG and IOLITEdi-1xSTG mounted on the soffit of the bridge.

Data logging

All the monitoring devices were daisy-chained with a single CAT6 cable. This single cable delivers power, data, and synchronization to the DAQ devices. The data is delivered to an embedded data logging PC running DewesoftX data acquisition software. The software can present live recordings, store the data based on triggers and analyze the data files.
Advanced engineering methods can be implemented inside DewesoftX software with low set-up effort and no special programming skills. These include:

The same is true for storing the data to a database, exporting to 3rd party software format, or sending the data using standard protocols such as OPC UA.

Figure 7. Data acquisition unit running enclosed in an IP67 cabinet running the Dewesoft SHM Software

Data acquisition software

The scope of monitoring software is to:

  • acquire signals from all sensors,

  • perform a real-time visualization,

  • to alarm on abnormal stages,

  • data storing, and

  • convert/store the data into a database server for further processing.

The graphs below are showing the responses over 1 minute and 29 seconds during the crossing of train #400120. The train passing the bridge is a phosphate carrier cargo train with 4 locomotives and a total of 124 wagons traveling in the downward direction at 100 km/h.

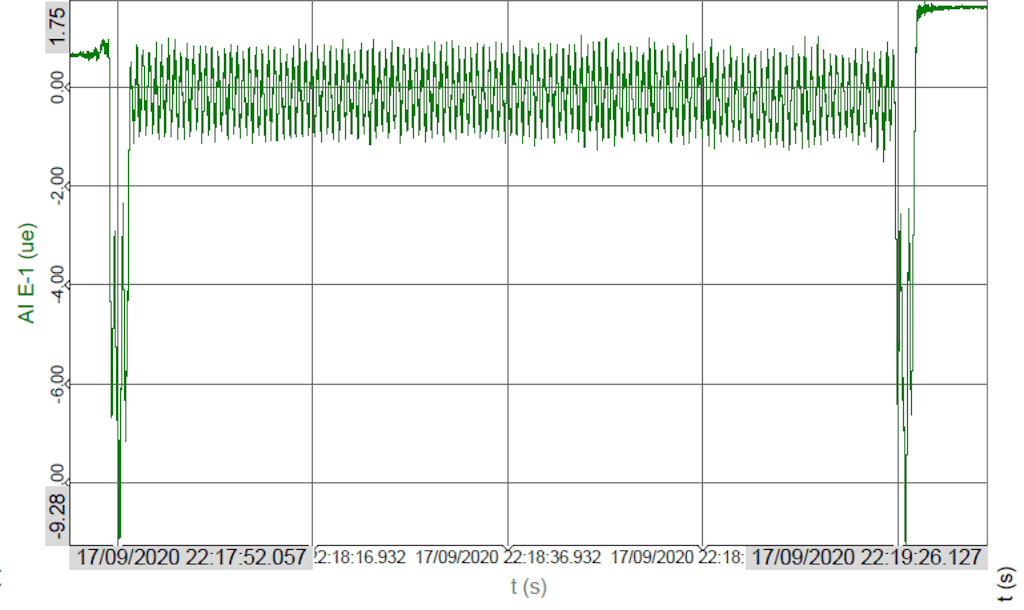

Figure 8. Software recordings from Strain sensor “E” located at the girder MGI2 soffit at quarter span (section 2) when a Phosphate Train passed the bridge on 17th September 2020. The y-axis presents the stain in “μe” while the x-axis presents the evolution of time in “sec”.

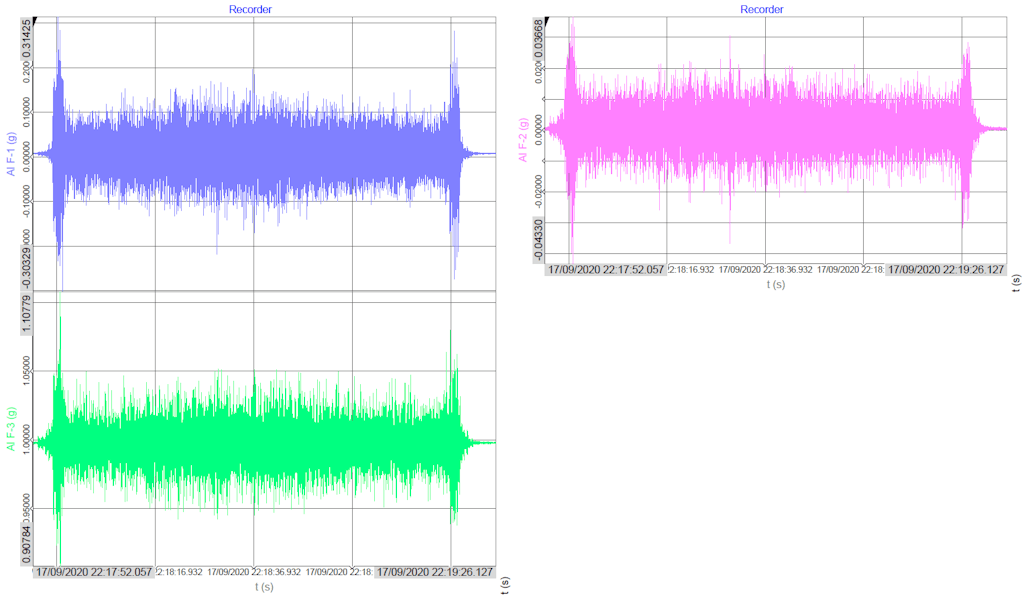

Figure 9. Software recordings from a 3-axial accelerometer “F” located at girder MGI2 soffit at quarter span (section 2) when a Phosphate Train passed the bridge on September 17th, 2020.

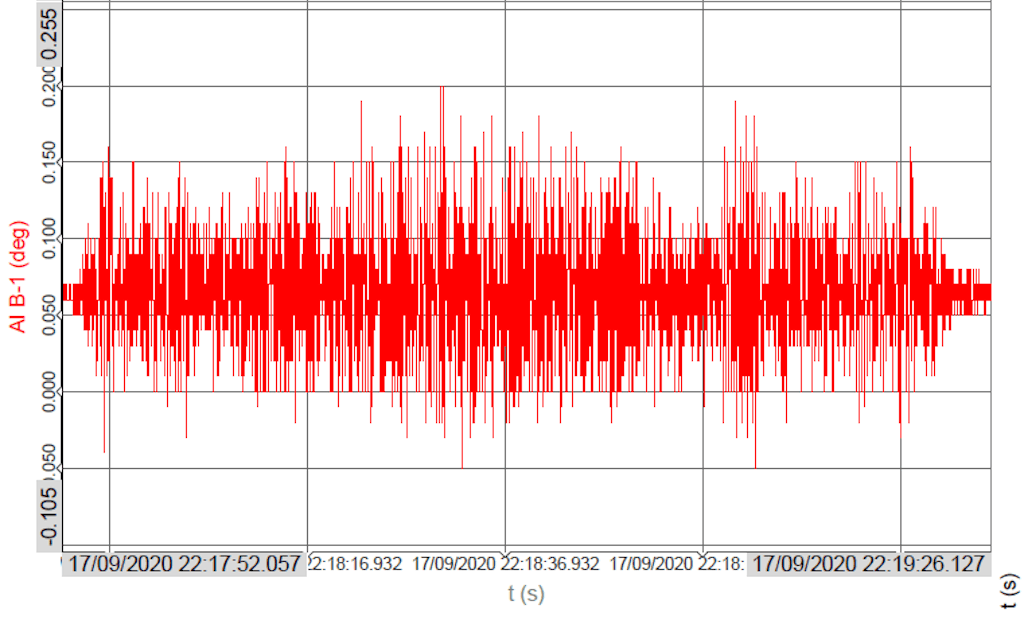

Figure 10. Software recordings from a tilt-meter monitoring tilt/inclination response for the sensor “B” located at the girder MGI2 soffit when a phosphate train passed the bridge on September 17th, 2020.


The selection of sensors, data acquisition devices, and system integration was completely done by Dewesoft. The company also tested the system before shipping it and built a user interface as well as set reports according to our client requirements. This saved us a lot of engineering time.

Mohamed from ACTS

The IOLITE is a tailor-made data acquisition device for structural health monitoring solutions with an ideal price-performance ratio for permanent condition monitoring on structures such as bridges.

Even though the system requires cabling, the RJ45 connectors enabled us to do the work very fast since it offers a possibility of on-site crimping. The CAT6 cables are also very inexpensive and can be easily purchased in any local store.

Mohamed concludes.
