Data acquisition products and hardware you will ♡ at work.

Dewesoft is designing and manufacturing versatile and easy-to-use data acquisition hardware. Our data acquisition products are the ultimate tools for test and measurement engineers. When you invest in Dewesoft you invest in your future. Handmade in the EU and offered with an industry-leading 7-year warranty, free technical support, and free DAQ software.

Product categories

Browse categories and find the perfect data acquisition products for your application. We offer data acquisition systems for nearly any test-case scenario. From modular data acquisition systems to portable all-in-one display instruments. From rugged DAQs to high-channel-count rack-mountable data acquisition systems. We are delivering turn-key test and measurement solutions that include all installation and mounting accessories, cables, and traceable calibration certificates. Dewesoft is a one-stop shop for all your data acquisition needs.

DAQ systems

Cutting-Edge USB and Ethercat Data Acquisition (DAQ) Systems

Dewesoft data acquisition systems are rugged, modular, and easy to use. Our signal conditioners are compatible with virtually every sensor, but you can also record video, CAN BUS, GPS, ethernet, and many other digital data formats - all in sync! Connect our instruments together with EtherCAT or USB for expandability. DewesoftX software has long been recognized as the most versatile, easy-to-use software in the world, and it’s included free updates for the life of the system. Turn to Dewesoft for the best technology, highest quality, and competitive pricing … plus an industry-leading 7-year warranty.

Modular DAQ systems

Modular Data Acquisition (DAQ) Systems

Dewesoft’s modular DAQ systems offer a convenient, flexible way to create the ideal DAQ system for your application. Start with a single-channel module, and then add as many single or multi-channel modules as you need. They simply plug together in a daisy chain. EtherCAT connectivity means that modules can be placed up to 100 meters apart. A single cable carries power, data, and sync. IOLITE modules are ideal for industrial applications, while KRYPTON modules are made for outdoor, high-shock, and harsh environments. All Dewesoft systems include DewesoftX software, with free updates for the life of the system.

Portable DAQ systems

Portable Data Acquisition (DAQ) Systems

Portable data acquisition systems are fully integrated data acquisition and display instruments with secure, built-in data storage, batteries for fully autonomous operation, and modern network connectivity. Powerful signal conditioning and signal processing capabilities make sure that our portable instruments are suitable for field, industrial, or lab test and measurement applications. High-galvanic isolation of the analog amplifiers and power supply circuits protects the instruments from the ground loops and keeps the signal quality at the highest level.

Rugged DAQ systems

Rugged Data Acquisition Systems and Data Loggers For Testing In Harsh Environments

Dewesoft’s rugged DAQ recorders and loggers are designed and built to work in harsh environments. IP67 environmental protection means that they’re waterproof and dustproof. Single and multi-channel KRYPTON modules can be placed anywhere and daisy-chained by a single EtherCAT cable. They’re shock resistant up to 100 g and can work in a wide temperature range from -40 ° to 85 °C (-40 ° to 185 °F). SIRIUS waterproof models provide higher sample rates and dynamic range, IP67 protection, and -40 ° to 60 ° C (140 °F) operating temperature. We’ve combined high performance and real-world survivability with these instruments.

DAQ and Control Systems

Data Acquisition and Real-time Control Systems

Until now, high-speed data acquisition and real-time controls have been completely different worlds. DAQ systems were not natively real-time devices, and PLCs lacked high-end signal conditioning and dynamic recording capabilities. Dewesoft has changed all of that by building powerful DAQ instruments with one or even dual-redundant EtherCAT interfaces. These systems can store hundreds of analog and digital channels at full speed while allowing data to be sent out in parallel to any third-party EtherCAT master controller. The worlds of high-speed DAQ and real-time control have come together at last.

Power Analyzers

High-Precision Power Analyzers

Dewesoft high-precision Power Analyzers are state-of-the-art instruments designed for precise and comprehensive power and power quality analysis across various industrial and research applications. With advanced technology and intuitive software, these analyzers provide unmatched accuracy, flexibility, and ease of use. Our range includes everything from the world's smallest 3-phase power analyzer to smart, compact multi-phase portable analyzers and high channel count systems. Whether you're involved in industrial manufacturing, renewable energy, automotive testing, aerospace testing, or any kind of R&D, Dewesoft offers the tools you need for precise and efficient power analysis.

Join the leading engineers and researchers who rely on Dewesoft for their critical electrical measurement needs.

Data Loggers

High-End Data Loggers and Data Recording Instruments

Welcome to Dewesoft's Data Loggers product category page! Our high-end data loggers are designed to provide reliable and accurate data recording for a range of applications. Our product offerings include embedded and low-powered data loggers that can be used to measure strain gauge, vibration, voltage, current, temperature, resistance, and other similar measurements. Our data loggers are built with precision and durability in mind, ensuring that you can trust the data you collect. Browse our selection to find the perfect data logger for your needs.

Monitoring and IoT Devices

Monitoring and IoT Devices

Dewesoft makes innovative DAQ instruments and loggers for structural health monitoring and machine condition monitoring applications. Our instruments are IoT (Internet of Things) ready. They are fully networking compatible, but they are also capable of stand-alone operation. Our wide range of instruments is designed to be used together or separately in any combination, allowing you to solve every measurement and monitoring application. Whether it’s simple monitoring or high-end applications that require on-site signal processing with real-time data uplinks for real-time viewing and post-processing in control centers, we have a solution for you.

DAQ software

Data Acquisition (DAQ) Software

Dewesoft was the first data acquisition software that could record video in sync with analog and digital data. It quickly became the world leader because of its innovative, easy-to-use and highly customizable user interface. Despite its ever-increasing power, DewesoftX is still fast and easy to use. Record every signal and every sensor, plus bus data, video, GPS, and more. Design your own screens. Analyze your data in real-time and after recording. Create reports, export to a wide variety of data formats, and more. DewesoftX is included with all Dewesoft DAQ hardware and comes with free updates for the life of the system.

Network interfaces

Network Interfaces

We manufacture several key data and network interfaces that are compatible with our data acquisition systems. These include CAN BUS and CAN FD interfaces, used primarily in automotive applications. We also offer a digital frame synchronizer for aerospace telemetry applications. Our IRIG Class II decommutator provides up to 40 Mb data rates.

Sensors

Sensors, Transducers and Actuators

Dewesoft offers a wide range of high-quality sensors to meet your test and measurement needs. We take pride in manufacturing data acquisition cameras, GNSS receivers, IMU sensors, INS (Inertial Navigation Systems), current transducers (current clamps, Rogowsky coils, zero-flux transducers), tacho probes, accelerometers, and microphones. For sensors like accelerometers, microphones, and more, we partner with top manufacturers such as Dytran, PCB, G.R.A.S, Kistler, and others, to provide you with the best, most reliable solutions on the market.

All of these sensors are designed to pair perfectly with our data acquisition systems, ensuring the most accurate measurements possible. Most of our sensors include a TEDS chip inside for automatic sensor recognition, making it easier for you to set up and manage your sensors.

Accessories

Accessories for Data Acquisition Systems

We offer a variety of accessories to help you get the most from your Dewesoft DAQ system. Each one has been designed to exact standards and is guaranteed to work perfectly. Available accessories include cables, power supplies, mounting plates, analog signal adapters, battery packs, wireless antennas, portable LCD displays, and more.

Services

Warranty, Calibration, and Repair Services.

Dewesoft systems are provided with an industry-leading 7-year warranty. But every measuring device requires occasional service and support to keep running in top condition. We offer manufacturer-level calibration services for our instruments and sensors, including current clamps and microphones. Dewesoft is also an ISO 17025-certified company and fully certified for performing and issuing traceable ISO measurement calibration certificates. Complete warranty and calibration support are also available from key offices located around the world. We want you to get the most from your Dewesoft instruments, and we stand ready to support you.

What can we measure?

Our DAQ hardware and software are unique in terms of measurement capabilities and supported data interfaces. Hardware is built to be extremely versatile and rugged and with a big emphasis on simplicity. We have worked closely with many test engineers in all industries which made our data acquisition systems as simple as riding a bike. What sets our hardware apart is the amazing versatility that it offers. Use our DAQ as a data recorder, oscilloscope, FFT analyzer, power analyzer, or many other test applications that are supported by our award-winning hardware and software.

Analog signals

We offer signal conditioning amplifiers for almost any type of analog signal and sensor. Our data acquisition systems are capable of sampling data up to 15 MS/s per channel, with a high bandwidth (up to 5 MHz) and an amazing dynamic range (up to 160 dB). We are utilizing 24-bit delta-sigma ADC with an anti-aliasing filter or 16-bit SAR ADC for sampling rates above 1 MS/s.

  • Voltage

  • High-voltage

  • Current

  • Resistance

  • Strain and stress (full/half/quarter bridge)

  • IEPE/ICP®

  • Charge

  • Temperature (thermocouples and RTDs)

  • LVDT

  • PWM (Pulse-width modulation)

Digital signals

Our patented SuperCounter® technology offers very accurate angle, speed, and RPM measurement. It is available in counter inputs that you find in almost every Dewesoft data acquisition system. Inputs are compatible with a variety of digital counter and encoder sensors and tacho probes. The counter measurements are perfectly synchronized with high-speed data from analog inputs.

  • Digital inputs

  • Counter sensors

  • Encoder sensors

  • Tacho probes

Bus and network interfaces

For vehicle testing and flight data recording, it is crucial to support the acquisition of modern automotive and aerospace data bus interfaces. Our data acquisition products can acquire data from all common vehicle interfaces in use today totally synchronized with analog and digital sensors. Our data acquisition products are unique on the market in the number of supported data interfaces.

  • CAN bus (OBD2, J1939, J1587, CAN FD)

  • XCP/CCP

  • FlexRay

  • SENT (SAE J2716)

  • LIN bus

  • Testbed AK-protocol

  • GNSS (GPS, INS, IMU, RTK)

  • Lidar

  • IRIG 106 (Chapter 4, Chapter 10)

  • PCM telemetry and iNet

  • ARINC 429 and MIL-STD-1553

  • Ethernet

Other data sources

If you are working in an industrial environment, industry 4.0, and SCADA systems you will appreciate the connectivity of our data acquisition products. Our data acquisition system can easily connect or serve measurement data using standard data protocols. Or maybe is your desire to capture video along with the data from your sensors? Absolutely no problem.

  • Video (DirectX cameras, high-speed cameras, thermal IR cameras)

  • Serial communication

  • OPC UA

  • Siemens S7 protocol

  • Modbus

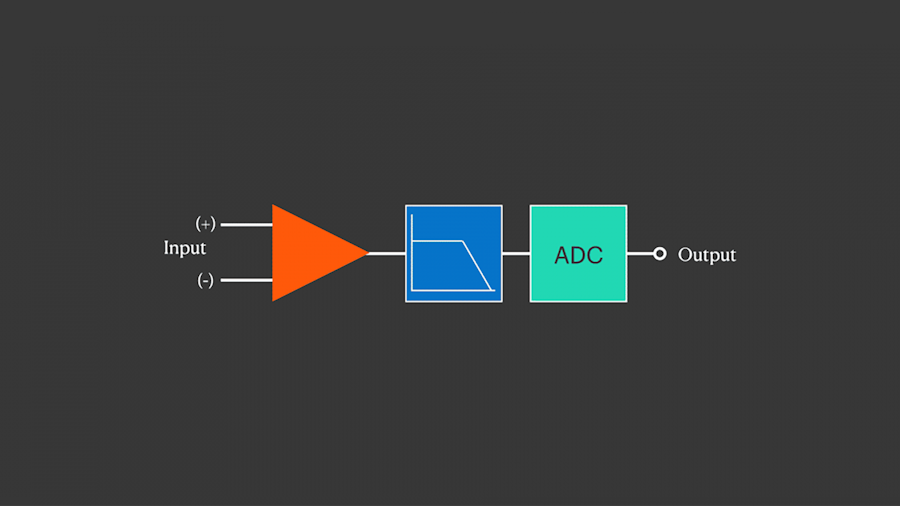

Cutting-edge signal conditioning technology

Dewesoft has always been an innovator in signal conditioning technology. Ten years ago we introduced signal amplifiers with DualCoreADC® technology. It utilized two 24-bit delta-sigma ADCs per channel that resulted in an amazing 160 dB dynamic range, perfect for high-dynamic measurements. These amplifiers are still widely in use today. But that hasn't stopped us from innovating and we introduced our latest signal conditioning technology called HybridADC®. Learn more about Dewesoft data acquisition technology.

DUAL CORE ADC®

High dynamic range

DualCoreADC® amplifiers deploy two 24-bit delta-sigma ADCs with an anti-aliasing filter on each analog channel, achieving an astonishing 160 dB dynamic range in time and frequency domain with a 200 kHz sampling rate per channel.

Play video

HYBRID ADC®

High speed, high dynamic range, high bandwidth

Which ADC is better? SAR or Delta-sigma? With HybridADC® amplifiers, it doesn't matter anymore. Users can select the operation mode for each channel. High bandwidth mode (5 MHz up to 15 Ms/s) and High dynamic alias-free mode (up to 1 Ms/s @ <150 dB dynamic range).

Play video

SUPER COUNTERS®

Counter measurement technology

Patented counter technology. Standard counters can output only integer numbers one sample later (e.g. 1, 1, 2, 2, 3, 4). SuperCounter can extract accurate values like 1.37, 1.87, 2.37, etc. synchronized for time and amplitude.

Play video

GALVANIC ISOLATION

Protection and signal quality

High channel-to-channel and channel-to-ground isolation (±1000 V) prevents damage to the systems from excessive voltage and avoids ground loops.

Play video

USB2.0 USB3.0 ETHERCAT ETHERNET PTP

Data interfaces

We offer DAQs with different data interfaces so you can choose the one that fits you best. Choose EtherCAT for distributable architecture or compatibility with 3rd party EtherCAT masters and USB for the highest acquisition rates.

ANALOG OPC UA XCP CAN

Data output

In today's connected world it is crucial your data is available to the outside world. Our DAQs offer standard data output interfaces. Either served in real-time with low latency or served in a standard way.

Dewesoft DAQ Product Lines

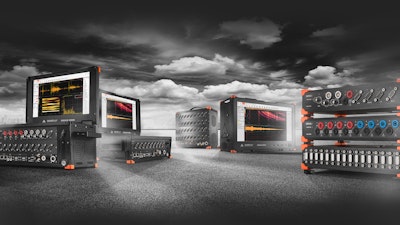

SIRIUS®

Introducing SIRIUS® - Your Ultimate Data Acquisition Solution.

Experience the pinnacle of precision with our top-of-the-class data acquisition systems, SIRIUS®. These cutting-edge products are designed to excel in the most demanding measurement scenarios, requiring the highest levels of speed, accuracy, bandwidth, and flexibility. With a myriad of available signal amplifiers and capabilities, SIRIUS® truly stands as the most capable data acquisition system in existence.

Our versatile SIRIUS® data acquisition systems come in various forms and flavors, catering to both lab testing and field testing scenarios. Explore some of the available SIRIUS® DAQ products below.

SIRIUS® Modular

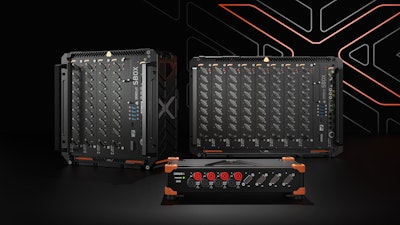

SIRIUS® XHS
SIRIUS® Waterproof
SIRIUS® R1DB and R2DB
SIRIUS® R2 and R4
SIRIUS® R8
SIRIUS® R8DB
SIRIUS® RT

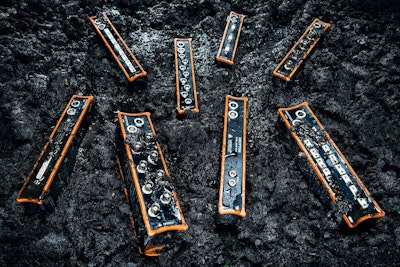

KRYPTON®

Introducing KRYPTON® - Your Rugged Testing Workhorse.

When it comes to testing in harsh conditions, KRYPTON® data acquisition products are your ultimate solution. Designed to withstand heavy shocks, extreme temperatures (ranging from -40°C to +85°C), as well as dusty, muddy, and wet environments, these modules are built to last. With an IP67 environmental protection rating, you can rely on KRYPTON® DAQ to perform flawlessly in the most challenging conditions.

What sets KRYPTON® apart is its ruggedness and modularity. It's the go-to choice for those seeking a robust and easily distributable data acquisition system that can handle data, power, and synchronization through a single cable.

KRYPTON® modules
KRYPTON® CPU

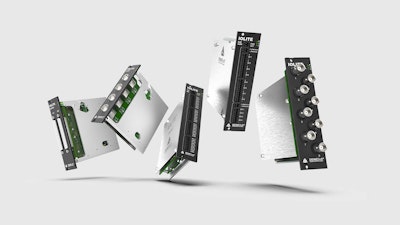

IOLITE®

Introducing IOLITE® - Optimal Price-Performance Data Acquisition Systems.

IOLITE® data acquisition systems are the perfect blend of performance and affordability. While still providing excellent signal conditioning amplifiers, they manage to maintain a minimal price per channel. Versatile and adaptable, IOLITE systems can be utilized in various testing scenarios and come in either rack enclosures or modular distributed versions.

With a real-time EtherCAT bus and a redundant power supply, the IOLITE systems go beyond regular data acquisition. They can also serve as front-ends or feedback monitoring for real-time control systems, adding an extra dimension of functionality to their impressive capabilities. Discover the power and value of IOLITE for your data acquisition needs today!

IOLITE® Rack
IOLITE® Modular
IOLITE® 3xMEMS

OBSIDIAN®

Introducing OBSIDIAN® - Low-Power Embedded Data Acquisition and Data Logging Platform.

OBSIDIAN® is our latest product line, offering a versatile platform for low-power, embedded data acquisition and data logger products. These advanced data loggers are designed to run completely autonomously, powered by an embedded ARM and LINUX-based CPU. Thanks to the internal SSD storage and SD card expansion slot, loggers can operate without the need for an external computer, making them truly stand-alone data loggers.

The OBSIDIAN® chassis is compatible with all IOLITE® signal conditioning cards, providing you with the flexibility to tailor your data acquisition setup to your specific needs. With various I/O interfaces at your disposal, OBSIDIAN® seamlessly integrates into any data logger application, ensuring a seamless and efficient data collection experience.

OBSIDIAN®

Why Dewesoft DAQs?

Your investment in Dewesoft is protected for years to come. We are 100% owned by our employees who live and strive for the same mission and goal - to revolutionize the measurement industry by developing innovative solutions that are tailored to our customer's needs. We are committed to our customers and everything we do, we do because of you. Not convinced yet? See Dewesoft benefits.

We Listen to You

Our products are the result of working and collaborating with you - our customer. We have worked in every application area imaginable. We've been on race tracks, space shuttle launches, airplanes, and trains. We know how you work and think. We listen to your wishes. We understand the test and measurement world and your application requirements. We guarantee to provide the tools that will save you time and money.

Great Support

We offer free technical support. Online and offline. Our engineers take an individual approach to solving your problems. We know that providing the best technical support is one of the most important things to you. And it is to us too... With our worldwide support network, you will get the right support in time and most importantly, where it matters the most to you. Get support immediately.

Best Software Licensing

We offer the industry's first no-hidden costs software licensing. When you buy our data acquisition systems, the software is always included. There are no hidden costs, renewals, or upgrade contracts in place. Updates to our software are free forever. Period. We also offer a completely free and unlimited software license for recorded data files. Anyone can review and analyze data by simply downloading our software. No additional licensing is needed.

Plug-and-Play

Our data acquisition software and hardware work seamlessly together. They are designed to work hand in hand. This greatly shortens time-to-result. Our engineers go into great detail to push the limits of what is possible. We make sure there are no complex configuration and connection hassles. Connect, measure, and analyze in seconds.

Synchronization

Your analysis may be inaccurate or even completely wrong if the data is not correctly synchronized. You won't issue this problem with Dewesoft. Dewesoft DAQ devices are always synchronized in nanosecond accuracy while other devices usually achieve only millisecond accuracy. No matter from what source and at what speed data comes from. Your data will always be perfectly synchronized.

Quality Control

Our hardware and software are made in Europe. We design, develop, manufacture, and calibrate our data acquisition products in-house in our state-of-the-art development, manufacturing, and testing facilities. We have our own machining center, testing lab, pick and place line, and everything else under our own control. We are ISO 9001 and ISO 14001 certified company.

7-Year Warranty

Great quality control is not where our solution ends. We know that quality is not just what we put into the product, but what you get out of it. We understand that your work depends on the reliability of your tools. So we are putting money where our mouth is. We offer an industry-leading warranty of 7 years. Our warranty covers that the instruments will function as promised for a period of 7 years from the day of the delivery. You receive a product of the best quality, performance, and efficiency.

Award Winners

We have received multiple international awards for hardware and software innovations. That includes the Product of the year award from NASA's Tech Briefs magazine as well as the Software innovation of the year award from Automotive Testing International magazine. We continue to innovate on all levels and work very hard to keep our products innovative and easy to use.

One Software

One of our core strategies is "One software for all test applications". You benefit greatly from this vision. Invest into learning only one software package no matter the test you do. DewesoftX software packs everything into one easy-to-use software package. Data recording and signal processing are made easy within the same software package. This again saves more of your time and money.
