Understanding Young’s, Shear & Bulk Modulus and Poisson’s Ratio in Engineering
You’ve probably heard of Young’s, Shear, Bulk Modulus, and Poisson’s Ratio, but what do they mean, and how do they interrelate? How do engineers and scientists use them to test the structural integrity of products, machines, and critical structures?
What are elastic moduli?
An elastic modulus is a fundamental property of an object or material that describes its ability to deform non-permanently under stress. This property is critical in engineering, physics, and materials science because it allows engineers to design structures that will not be damaged or destroyed by extreme operating conditions.
Stress (σ): Measures the internal force per unit area within a material when subjected to an external load.
Strain (ε): Measures the deformation of the material relative to its original length.
Young’s Modulus (E): Defines the stiffness of a material by relating stress to strain in the elastic (non-permanent deformation) region.
These properties help engineers predict how materials respond to different loads, such as aerodynamic forces, pressure differentials, and structural stresses.

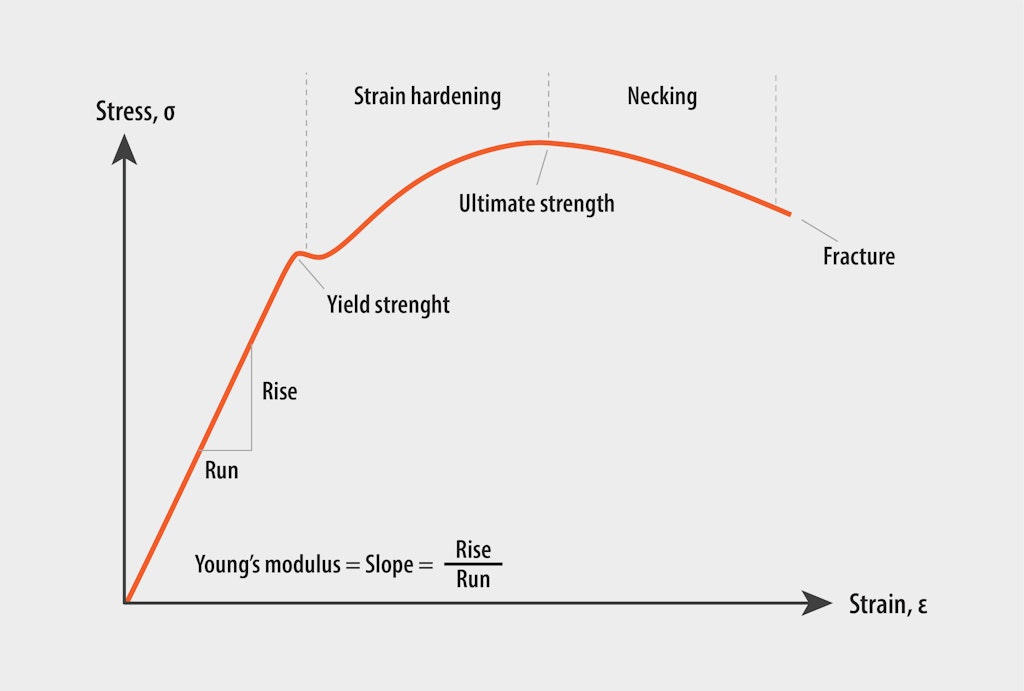

The elastic modulus of an object or material can be defined as the slope of its stress–strain curve. Stiffer materials have a higher elastic modulus than less stiff materials.
Where:
Stress is the deforming force applied divided by the affected area.
Strain is the ratio of change, i.e., the amount by which a material’s shape changes compared to its original state.
Strain is a dimensionless quantity and is usually expressed as a percentage. Typical measures for strain are less than 2 mm/m for steel and are often expressed in micro-strain units. One microstrain is the strain producing deformation of one part per million.

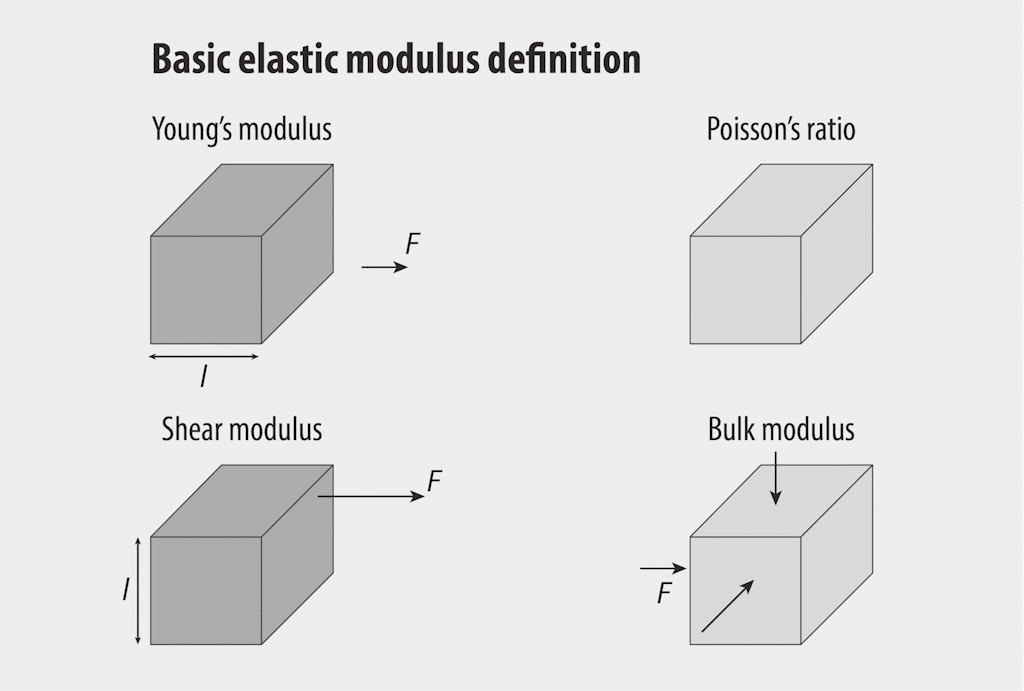

This article explains the four main types of elastic moduli, their importance, formulas, real-world uses, and practical applications:
Young’s Modulus (E)
Poisson’s Ratio (v)
Shear Modulus (G)
Bulk Modulus (K)
1. Young’s modulus (E)
What is Young's modulus?
Young’s Modulus, also known as the modulus of elasticity, quantifies a material's stiffness by measuring its ability to resist axial deformation. It is the ratio of stress (force per unit area) to strain (relative deformation) in a uniaxial loading scenario.
In effect, Young's modulus is the connection between stress and strain.
Young's modulus is measured in the SI unit of Pascal (Pa or N/m2 or kg/ms2). Typical values are encountered in the megapascals (MPa or N/mm2) or gigapascals (GPa or kN/mm2).
In the USA, Young's modulus is often expressed in pounds per square inch (psi).
This short video demonstrates a typical test:
Young’s modulus formula
Young’s modulus is calculated using the following formula:
Where:
E = Young’s Modulus (Pa or N/m²)
ơ = Stress (Force/Area, in Pascals)
ɛ = Strain (dimensionless, change in length/original length)
Young’s modulus example
Highly elastic materials like liquids and rubber deform easily under stress because they have low E values.
Conversely, metals have very high E values. Applying a compression or extension load to solid materials causes them to undergo elastic deformation. This change in shape reverses when the load is removed. A material’s inherent strength determines how great a load it can withstand before the boundaries of elastic deformation are exceeded and the material cannot return to its original state.
Does an object’s shape affect its Young’s modulus?
The shape of objects greatly influences their stiffness. For example, the shape of an I-beam makes it more resistant to bending than a straight beam or rod made from the same material. Steel beams are designed using Young’s Modulus to withstand high loads without excessive bending. Skyscrapers and bridges rely on materials with a high Young’s Modulus for stability and durability.
Dewesoft data acquisition systems (DAQ) measure strain and stress in real time. Using high-precision strain gauge amplifiers, engineers can accurately capture Young’s Modulus data during tensile testing, ensuring materials meet design specifications. Learn more about making strain measurements supporting modulus calculations.
Young’s modulus applications
Structural Engineering: Determines material suitability for load-bearing applications.
Material Testing: Used in tensile tests to evaluate mechanical performance
Quality Control: Ensures consistency in material production, particularly in metals, composites, and polymers.
For example, aerospace manufacturers use stress, strain, and Young’s Modulus calculations when designing aircraft and spacecraft. These vessels experience high tensile and compressive loads in wings, fuselage, and support structures. They are also subjected to vibrational and cyclic loads, especially during takeoff, flight, re-entry, and landing. In addition, spacecraft experience extreme temperature fluctuations.
Young’s Modulus helps engineers choose materials that will not deform excessively under these loads, ensuring structural integrity and safety.
2. Poisson’s ratio (v)
What is Poisson’s ratio

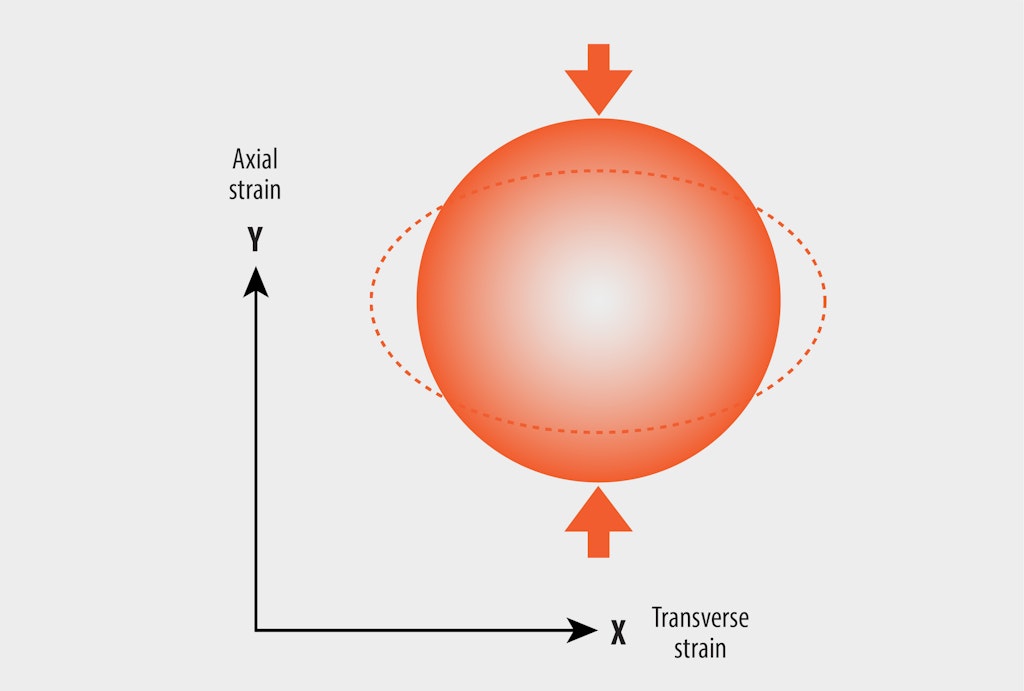

Poisson’s Ratio describes the relationship between lateral and axial strain in a material subjected to uniaxial stress. When a material is stretched or compressed, it expands or contracts perpendicular to the applied force.
For example, squeezing a rubber ball on opposite sides compresses it on the Y axis but results in perpendicular X axis expansion.
Poisson’s ratio formula
To calculate Poisson’s Ratio, you can use the following formula:
Where:
v = (Greek letter nu) Poisson’s Ratio (dimensionless)
Ɛlateral = Lateral strain
Ɛaxial = = Axial strain
Poisson’s ratio example

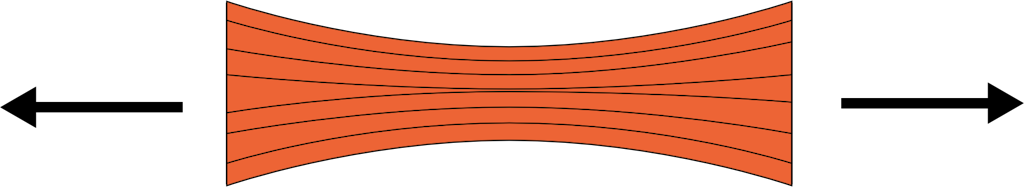

When a rubber band is stretched, it becomes thinner in the middle due to Poisson’s Ratio. Engineers use this principle when designing flexible materials such as rubber seals and foam padding.
Dewesoft DAQ systems can use multi-axis strain measurement to evaluate Poisson’s Ratio by simultaneously capturing axial and lateral strain values. This helps in material validation for aerospace, automotive, and biomedical applications.

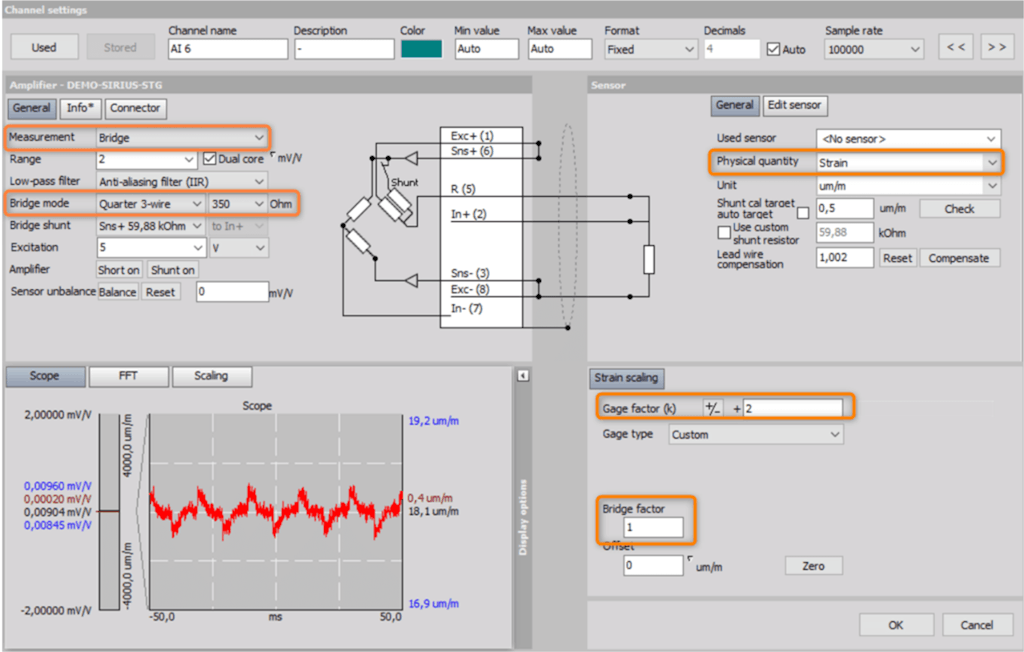

Setup of a quarter bridge strain gage sensor in DewesoftX software.
Poisson’s ratio applications
Finite Element Analysis (FEA): Helps simulate material behavior under stress.
Vibration Analysis: Essential for predicting dynamic responses in materials.
Biomedical Engineering: Used in modeling biological tissues like bones and tendons.
3. Shear modulus (G)
What is Shear modulus

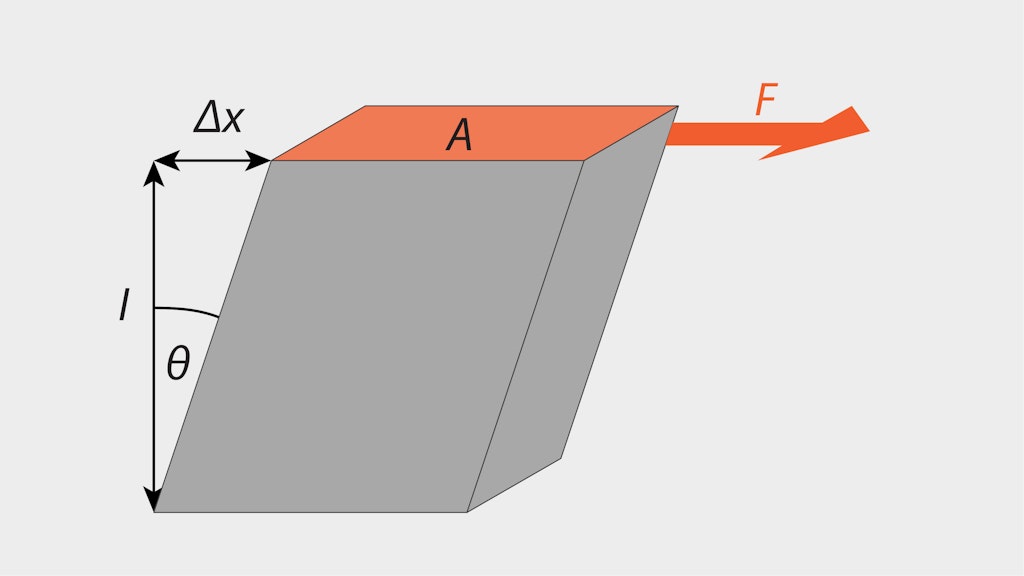

The Shear Modulus, also known as the modulus of rigidity, measures a material's response to shear stress, where forces are applied parallel to a surface rather than perpendicular.
Shear modulus formula
To calculate the Shear Modulus, you can use the following formula:
Where:
G = Shear Modulus (Pa)
𝜏 = Shear Stress (Force per unit area)
𝛾 = Shear Strain (angular deformation in radians)
Shear modulus real-world example
A car's suspension system relies on materials with a specific Shear Modulus to absorb road vibrations and provide a smooth ride. Rubber bushings in the suspension help isolate vibrations by resisting shear deformation. When combined with torsional load cells, Dewesoft DAQ systems enable the precise measurement of shear modulus in materials. This is crucial in automotive and seismic testing applications where resistance to shear forces determines safety and performance.
Shear modulus applications
Torsional Testing: Determines material resistance to twisting.
Automotive: The Shear modulus is crucial in car suspension testing because it directly influences how components behave under stress and deformation.
Seismic Engineering: Helps evaluate how materials and structures withstand shear forces during earthquakes.
Adhesive Bonding Analysis: Used to assess the mechanical performance of bonded materials.
4. Bulk modulus (K)
What is Bulk modulus?
The Bulk Modulus measures a material's resistance to uniform compression, quantifying how much volume change occurs under pressure. While other moduli like Young’s, Poisson, and Shear measure stress applied from various directions, the bulk modulus is used when the compression comes from multiple directions.
Bulk modulus formula
To calculate the Bulk Modulus, you can apply the following formula:
Where:
K = Bulk Modulus (Pa)
p = Applied Pressure (Pa)
V = Original Volume
ΔV = Change in Volume
Bulk modulus example
Submarines are built with high Bulk Modulus materials to withstand extreme underwater pressure from all sides. A submarine's bulk modulus measures its resistance to compression. It is calculated as the ratio of the increase in pressure to the relative decrease in volume.
The bulk modulus calculates how much a material will change in volume when subjected to pressure changes. When a submarine is taken from the ocean's surface to the bottom, where the pressure is much higher, the submarine's volume will change. The amount of the volume change depends on the submarine's bulk modulus and the pressure difference.
Bulk modulus calculations are also helpful for making atmospheric and gas-related measurements.
Using pressure sensors integrated with Dewesoft DAQ systems, engineers can monitor changes in material volume under compression. This data is vital for fluid mechanics, hydraulic system design, and aerospace testing applications.
Bulk modulus applications
Submarines and other Water Craft: ensuring their hulls can withstand water pressure without significant volume reduction.
Concrete Durability: Because concrete is often exposed to environmental stressors like water ingress, freeze-thaw cycles, and mechanical loads, understanding its bulk modulus is key to predicting long-term performance.
Hydraulic Systems: Ensure fluid compressibility does not compromise system performance.
Aerospace Engineering: Used to evaluate material performance under high-altitude pressure variations.
Material Science Research: Helps in developing materials with specific compressibility properties.
How do elastic moduli compare and interrelate?
| Elastic modulus | Definition | Formula | Common Materials |
|---|---|---|---|
| Young’s Modulus (E) | Measures stiffness under axial load | \(E=\frac{\sigma}{\varepsilon}\) | Steel, aluminum, rubber |
| Poisson’s Ratio (v) | Ratio of lateral to axial strain | \(\nu= - \frac{\varepsilon_{lateral}}{\varepsilon_{axial}} \) | Rubber, foam, materials |
| Shear Modulus (G) | Measures resistance to shear deformation | \(G = \frac{\tau}{\gamma} \) | Polymers, allows |
| Bulk Modulus (K) | Resistance to uniform compression | \(K = \frac{-p}{\Delta V / V}\) | Water, gasses |

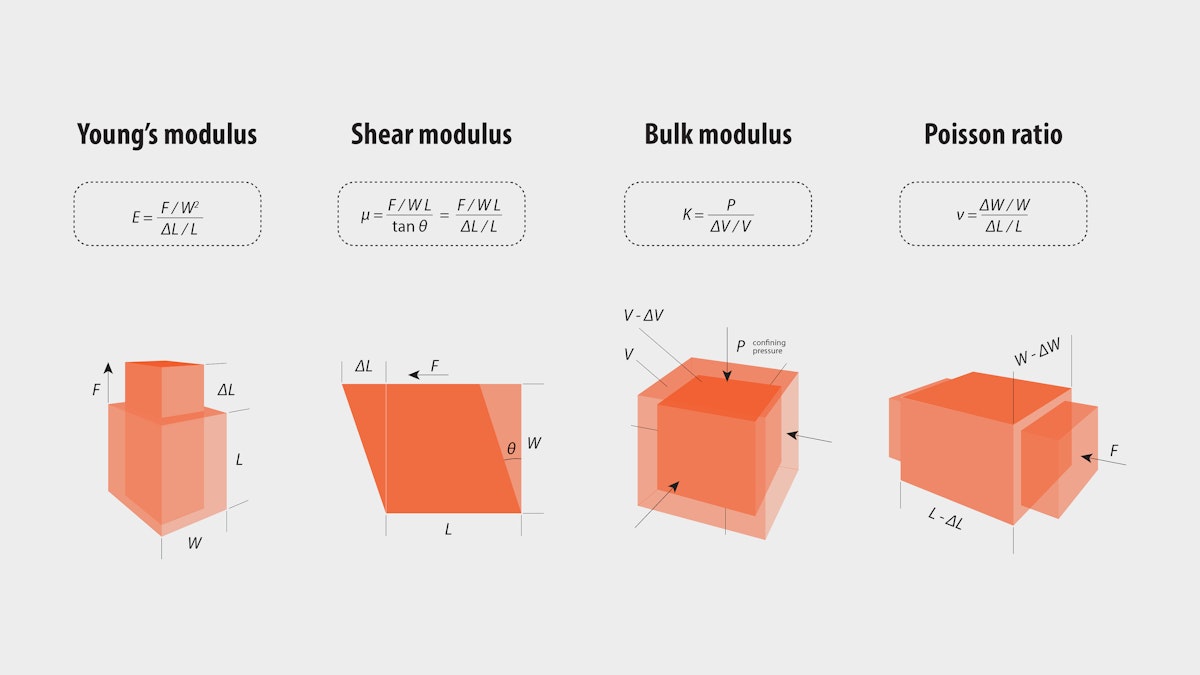

Elastic moduli are interconnected, and their relationships can be expressed mathematically. These equations allow engineers to derive one modulus if others are known, making material characterization more efficient.
Dewesoft software integrates real-time mathematical calculations, allowing engineers to compute Young’s Modulus, Shear Modulus, and Bulk Modulus from collected strain and stress data. This capability enhances testing efficiency in R&D and industrial applications.
Elastic modulus FAQs
What is the difference between Young’s modulus and the Shear modulus?
Young’s modulus measures a material's resistance to linear (axial) stretching, while the shear modulus measures angular (shear) deformation resistance.
How are elastic moduli used in engineering?
Elastic moduli are used in engineering to predict material behavior under stress, ensuring structures maintain strength and stability.
Which materials have the highest Young’s modulus?
Diamond, graphene, and carbon nanotubes have the highest Young’s modulus values.
What is the SI unit of the Shear modulus?
The SI unit of shear modulus is the pascal (Pa), typically expressed in GPa for engineering materials.
How is the Modulus of elasticity calculated?
The modulus of elasticity, aka Young’s Modulus, is calculated using the formula \(E=\frac{\sigma}{\varepsilon}\)
What is the modulus of elasticity?
The modulus of elasticity is a material property that quantifies its ability to deform elastically when subjected to stress.
Conclusion
Understanding Young’s Modulus, Poisson’s Ratio, Shear Modulus, and Bulk Modulus is crucial in various engineering and scientific applications. These elastic constants help determine material behavior under stress, optimize product designs, and ensure structural integrity. By leveraging precise test and measurement techniques, industries can enhance material selection and application efficiency, improving performance and safety. With Dewesoft’s advanced DAQ solutions, engineers can accurately measure and analyze these moduli, improving material testing and structural analysis outcomes.
