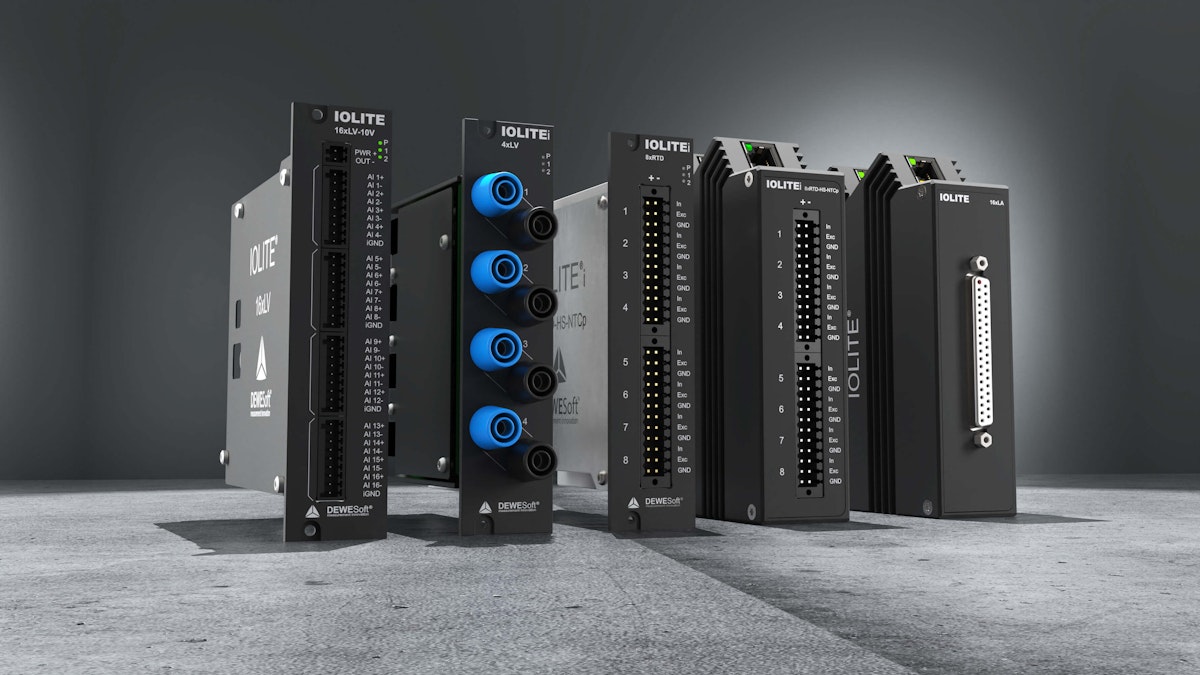

New IOLITE Modules for Voltage, Current, and PTx
June 2, 2026
Dewesoft is expanding the IOLITE product line with new DAQ modules designed for high-density acquisition, precision thermal measurements, high-voltage isolation, and flexible rack integration. The latest additions extend the IOLITE ecosystem with new capabilities for industrial testing, electrification, energy systems, and research applications.
IOLITEr-16xLV-10V: 16-channel low-voltage module
The new IOLITEr-16xLV-10V module extends the proven IOLITEr-16xLV module with a dedicated ±10 V measurement range and higher input impedance, making it ideal for voltage measurement applications that demand accuracy, reliability, and signal integrity.
With 16 low-voltage input channels, the module delivers precise and reliable signal acquisition while maintaining channel-to-ground isolation for enhanced measurement safety and signal integrity.
The dedicated ±10 V range simplifies setup for common industrial and laboratory applications while the increased input impedance minimizes sensor loading and improves compatibility with sensitive signal sources.
Key features
Channels: 16-channel high-density low voltage module.
Voltage range: ±10 V.
Impendance: Increased input impedance at 2 MΩ between Input+ and Input-.
Isolation: Channel-to-ground isolation.
Sampling rate: Up to 20 kS/s sampling rate.
ADC: 24-bit Delta-Sigma ADC technology.
Connectors: Terminal block connectors.
Availability: Currently available for IOLITE rack and OBSIDIAN products.
IOLITEir-4xLV-BAN: 4-channel isolated low-voltage module
When accuracy, safety, and signal integrity matter most, the new IOLITEir-4xLV-BAN delivers reliable low-voltage measurements in demanding high-energy applications.
Designed for engineers working in power electronics, energy systems, battery testing, inverter development, grid monitoring, and safety-critical measurements, the IOLITEir-4xLV-BAN combines fully isolated inputs, high-resolution acquisition, and easy connectivity in a compact IOLITE form factor.
The isolated architecture enables safe, accurate measurements when channels operate at significantly different electrical potentials.
From inverter control signals and floating sensors to gate-drive voltages, battery stack signals, and low-level signals in high-voltage systems, the module helps reduce ground loops while protecting both equipment and users.
Combined with a 24-bit Delta-Sigma ADC with up to 40 kS/s sampling rate, users gain exceptional dynamic range and signal fidelity for detailed analysis and long-duration measurements.
With a 10 MΩ input impedance, the IOLITEir-4xLV-BAN is ideal for applications where loading the measured circuit must be minimized. This is especially important in power electronics diagnostics, insulation monitoring, and sensitive control circuits. High input impedance helps preserve original signal behavior while improving operator safety and reducing the risk of influencing the measured system.
The new IOLITEir-4xLV-BAN extends the IOLITE platform with safe, precise, and highly isolated low-voltage measurements tailored for today’s electrification and energy applications.
Key features
Channels: 4 fully isolated low-voltage inputs.
Voltage ranges: ±100 V, ±10 V, ±1 V, ±100 mV.
Sampling rate: Up to 40 kS/s sampling rate.
ADC: 24-bit Delta-Sigma ADC technology.
Impendance: 10 MΩ input impedance.
Isolation: Channel-to-channel and channel-to-ground isolation.
Safety: CAT II 1000 V isolation rating
Connectors: Safety 4 mm banana input connectors
Availability: Currently available for IOLITE rack and OBSIDIAN products.
IOLITEr-16xLA and IOLITE-16xLA: 16-channel low-current modules
The IOLITEr-16xLA and modular IOLITE-16xLA are a high-density module for measuring low currents. It is an ideal device for data acquisition in control applications that require input ranges of ±20 mA.
Modules have 16 analog channels for measuring current with an input impedance of 100 Ω. It acquires data using a 24-bit ADC with a sampling rate of up to 20 kS/s, featuring an anti-aliasing filter. The module's reliable channel-to-ground isolation protects against external voltage spikes.
The modules are available with two connector options: terminal block and D-SUB37. It can be mounted in all standard rack chassis (IOLITE-R12, IOLITE-R8, IOLITE-R8r, OBSIDIAN-R8, OBSIDIAN-R12, OBSIDIAN-R8w) and is also available in the modular version.
More detailed information can be found in Technical specifications:
IOLITEir-8xRTD-2T3A24 and IOLITEi-8xRTD-2T3A24: 8-channel temperature and resistance modules
When your application demands accurate temperature acquisition, high isolation, and reliable resistance monitoring, the new IOLITE 8xRTD-2T3A24 modules deliver performance without compromise.
Designed for the most demanding industrial, automotive, aerospace, energy, and research environments, modules combine high-speed synchronized acquisition, wide resistance measurement capability, and true channel isolation into one compact, modular DAQ solution.
Key features
The new modules are far more than a traditional RTD module.
Supported Measurement Modes:
Temperature (RTD) - Pt50, Pt100, Pt200, Pt500, Pt1000, Pt2000
Temperature (Thermistor) - NTC, PTC
Resistance - 6 ranges, 0…10 MΩ
Voltage - ±1 V, ±100 mV
The new IOLITEir-8xRTD-2T3A24 and IOLITEi-8xRTD-2T3A24 modules combine high-accuracy temperature and resistance measurements with exceptional flexibility. They are suitable for a wide range of applications, including environmental chambers, thermal mapping, battery temperature monitoring, motor and inverter testing, cryogenic measurements, insulation and leakage monitoring, sensor validation, and research setups.
Both modules feature channel-to-channel and channel-to-ground isolation, ensuring safer operation and cleaner measurements in demanding environments. Whether testing battery systems, electric drives, industrial equipment, or cryogenic applications, isolation helps minimize noise and prevents unwanted ground loops.
With a 24-bit ADC and sampling rates of up to 10 kS/s per channel, the modules can capture fast temperature transients and thermal shock events, making them suitable for dynamic testing applications.
Designed for operation in EMC-harsh environments, the modules deliver stable and reliable measurements even when installed on electric motor stators or near high-power inverters. Measurement integrity is ensured through a sharp 3rd-order analog anti-aliasing low-pass filter (-3 dB @ 1 kHz) combined with advanced digital FIR filtering.
The modules support pulsed sensor excitation, reducing RTD self-heating and eliminating DC offset errors caused by the Seebeck effect during cryogenic temperature measurements. This makes them particularly valuable for aerospace and environmental testing applications.
Support is provided for all major platinum RTD sensors, including Pt50, Pt100, Pt200, Pt500, Pt1000, and Pt2000, as well as NTC and PTC thermistors.
Configuration is simple and intuitive through DewesoftX software. Resistance-to-temperature conversion is performed directly inside the module, with support for standard RTD characteristics and thermistor equations such as Steinhart–Hart. This eliminates the need for additional math channels or custom scaling, reducing setup time and simplifying system configuration.
An exceptionally wide resistance measurement range of up to 10 MΩ extends the modules beyond traditional temperature measurements. Additional applications include insulation resistance monitoring, leakage path detection, material characterization, and high-resistance sensor measurements.
The modules use robust 2-row, 24-pole terminal block connectors and are available in two form factors:
IOLITEir-8xRTD-2T3A24 – rack-mounted version
IOLITEi-8xRTD-2T3A24 – modular version
IOLITEr-BLANK: flexible rack configurations
The new IOLITEr-BLANK is an empty IOLITE rack slice designed to bypass unused EtherCAT slots in the rack.
Instead of rearranging or replacing additional slices, IOLITEr-BLANK provides a clean and simple way to maintain rack configuration flexibility and streamline system setup.
Benefits
Bypasses empty EtherCAT rack slots
Simplifies rack configuration changes
Eliminates unnecessary rearrangement of slices
Fast and convenient installation
Whether you are expanding a system or temporarily removing modules, IOLITEr-BLANK helps keep your setup organized and operational with minimal effort.
