SIRIUSiwe-6xSTGM-2xSTGM+ Spezifikationen
| SIRIUSiwe-6xSTGM-2xSTGM+ | |
|---|---|
| Analog inputs | |
| Analog inputs | 8 ch voltage Full / half / quarter bridge strain |
| ADC type | 2x 24-bit delta-sigma DUALCOREADC® with anti-aliasing filter |
| Sampling rate on USB | Simultaneous 200 kS/sec |
| Sampling rate on EtherCAT® | Simultaneous 20 kS/sec |
| Ranges | ±10 V, ±1 V, ±100 mV, ±10 mV |
| Bridge ranges | 2 mV/V ... 1000 mV/V, free programmable |
| Dynamic Range@10kS | -152 dB |
| Input coupling | DC |
| Input impedance | 10 MΩ |
| Bridge modes | Full / Half / Quarter Br 120 / 350 Ω 3-wire; internal bridge completion |
| Internal shunt resistor | 100 kΩ (others on request), Sns+ or Sns- to In+ or In- |
| Excitation voltage | 0 - 15 VDC bipolar software programmable (16-bit DAC), max 44 mA |
| Temperature derating | ✗ |
| TEDS | Supported, DSI® adapters |
| Overvoltage protection | IN+ to IN-: 50 V continuous; 200 V peak (10 msec) |
| Counter inputs | 2x Supercounter® (6 Digital In, 2 Digital out) |
| Isolation Voltage | 1000 V channel-channel, channel-ground |
| Input connectors | DSUB-9 CNT: 7-pin LEMO female |
| Power | |
| Power supply | 9 - 36 V DC |
| Power consumption | Typ. 11 W (Max. 20 W) |
| Environmental | |
| Operating Temperature | -40 °C ... 60 °C |
| Storage Temperature | -40 °C ... 85 °C |
| Humidity | 5 to 100 % RH |
| IP rating | IP65 / IP67 |
| Shock | 60 g @ 6 ms 50x, half sine, all axis 100 g @ 4 ms 50x, half sine, all axis |
| Vibration | Random: Profile breakpoints: 24 Hz - 0.023 g²/Hz 60 Hz - 0.28 g²/Hz 100 Hz - 0.28 g²/Hz 240 Hz - 0.056 g²/Hz 2 kHz - 0.056 g²/Hz Profile RMS / Peak = 11.5 g / 34.5 g (up to 15 / 45 g with absorbers) 6 hrs in each axis, 18 hrs total |
| Physical | |
| Dimensions | 282 x 135 x 70 mm |
| Weight | 2.07 kg 4.56 lbs |
| Rev: 1657623600 | |

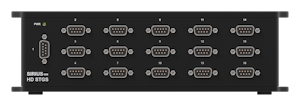

SIRIUSwe-HD-16xSTGS Spezifikationen
| SIRIUSwe-HD-16xSTGS | |
|---|---|
| Analog inputs | |
| Analog inputs | 16 ch voltage Full / half / quarter bridge strain |
| ADC type | 24-bit delta-sigma with anti-aliasing filter |
| Sampling rate on USB | Simultaneous 200 kS/sec |
| Sampling rate on EtherCAT® | Simultaneous 10 kS/sec |
| Ranges | ±10 V, ±1 V, ±100 mV, ±10 mV |
| Bridge ranges | 2 mV/V ... 1000 mV/V, free programmable |
| Dynamic Range@10kS | -137 dB |
| Input coupling | DC |
| Input impedance | 10 MΩ |
| Bridge modes | Full / Half / Quarter Br 120 / 350 Ω 3-wire; internal bridge completion |
| Internal shunt resistor | 100 kΩ (others on request), Sns+ to In+ or In- |
| Excitation voltage | 0 - 12 VDC bipolar software programmable (16-bit DAC), max 44 mA |
| Temperature derating | ✗ |
| TEDS | Supported, DSI® adapters |
| Overvoltage protection | IN+ to IN-: 50 V continuous; 200 V peak (10 msec) |
| Counter inputs | ✗ |
| Isolation Voltage | Differential (ground loop isolated) |
| Input connectors | DSUB-9 |
| Power | |
| Power supply | 9 - 36 V DC |
| Power consumption | Typ. 14 W (Max. 24 W) |
| Environmental | |
| Operating Temperature | -40 °C ... 50 °C |
| Storage Temperature | -40 °C ... 85 °C |
| Humidity | 5 to 100 % RH |
| IP rating | IP65 / IP67 |
| Shock | 60 g @ 6 ms 50x, half sine, all axis 100 g @ 4 ms 50x, half sine, all axis |
| Vibration | Random: Profile breakpoints: 24 Hz - 0.023 g²/Hz 60 Hz - 0.28 g²/Hz 100 Hz - 0.28 g²/Hz 240 Hz - 0.056 g²/Hz 2 kHz - 0.056 g²/Hz Profile RMS / Peak = 11.5 g / 34.5 g (up to 15 / 45 g with absorbers) 6 hrs in each axis, 18 hrs total |
| Physical | |
| Dimensions | 282 x 135 x 85 mm |
| Weight | 2.73 kg 6.02 lbs |
| Rev: 1657623600 | |
SIRIUSiwe-6xLV-2xLV+ Spezifikationen
| SIRIUSiwe-6xLV-2xLV+ | |
|---|---|
| Analog inputs | |
| Analog inputs | 8 ch voltage Full bridge strain, current (ext. Shunt) |
| ADC type | 2x 24-bit delta-sigma DUALCOREADC® with anti-aliasing filter |
| Sampling rate on USB | Simultaneous 200 kS/sec |
| Sampling rate on EtherCAT® | Simultaneous 20 kS/sec |
| Ranges | ±200 V, ±10 V, ±1 V, ±100 mV |
| Bridge ranges | 2 mV/V ... 1000 mV/V, free programmable |
| Dynamic Range@10kS | -152 dB |
| Input coupling | DC, AC 1 Hz (3 Hz, 10 Hz per SW) |
| Input impedance | 200 V Range: 1 MΩ; all other ranges 10 MΩ between IN+ or In- against GND |
| Bridge modes | Full |
| Internal shunt resistor | ✗ |
| Excitation voltage | 0 - 24 V DC unipolar 2 - 30 V DC bipolar software programmable (16-bit DAC), max 200 mA / 2 W |
| Temperature derating | -40 °C ... 40 °C : ✗ 40 °C ... 60 °C : linear from total 8W Exc power to 1W Exc power |
| TEDS | Supported, DSI® adapters |
| Overvoltage protection | 200 V Range: 300 V; all other ranges: 100 V (250 V peak for 10 msec) |
| Counter inputs | 2x Supercounter® (6 Digital In, 2 Digital out) |
| Isolation Voltage | 1000 V channel-channel, channel-ground |
| Input connectors | DSUB-9 CNT: 7-pin LEMO female |
| Power | |
| Power supply | 9 - 36 V DC |
| Power consumption | Typ. 14 W (Max. 42 W, temperature derating applies) |
| Environmental | |
| Operating Temperature | -40 °C ... 60 °C |
| Storage Temperature | -40 °C ... 85 °C |
| Humidity | 5 to 100 % RH |
| IP rating | IP65 / IP67 |
| Shock | 60 g @ 6 ms 50x, half sine, all axis 100 g @ 4 ms 50x, half sine, all axis |
| Vibration | Random: Profile breakpoints: 24 Hz - 0.023 g²/Hz 60 Hz - 0.28 g²/Hz 100 Hz - 0.28 g²/Hz 240 Hz - 0.056 g²/Hz 2 kHz - 0.056 g²/Hz Profile RMS / Peak = 11.5 g / 34.5 g (up to 15 / 45 g with absorbers) 6 hrs in each axis, 18 hrs total |
| Physical | |
| Dimensions | 282 x 135 x 70 mm |
| Weight | 2.07 kg 4.56 lbs |
