SIRIUS® X Tekniska specifikationer

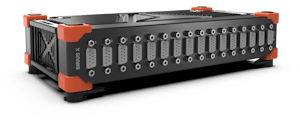

Tekniska specifikationer för SIRIUS® X-systemet
| SIRIUS X | |
|---|---|
| GLAN | |
| Data interface | Ethernet 1 GbE incl. IEEE1588v2 synchronization (PTP IEEE 802.3) |
| Sync Accuracy | 100 ns |
| Bus connectors | Ethernet RJ45, single cable for data, power and sync, daisy chainable |
| Power over Ethernet | 48-57 V DC (max. 90W) |
| Max. cable length between devices | 100 m |
| CAN bus | |
| Number of ports | 1 |
| Interface type | CAN 2.0B, up to 1 MBit/s CAN-FD, up to 8 Mbit/s |
| Special applications | CCP, OBDII, J1939, CAN RT output |
| Galvanic isolation | Isolated |
| Bus pin fault protection | ±36 V |
| ESD protection | 8 kV |
| IRIG Synchronisation | |
| Sync Connectors | 4-pin LEMO 00 Series female |
| Sync Accuracy | 100 ns |
| Max. Sync-cable length | 200 m (IRIG) |
| Level (Input/Output) | TTL compatible |
| Max. Output Current | ±24 mA (±50 mA for 1 sec) |
| Other interfaces | |
| USB | USB-C 3.0 Type (See 1) |
| EtherCAT | Secondary bus/RT out connection to 3rd party EtherCAT master (See 1) |
| Internals | |
| CPU type | ARM |
| Operating system | Linux |
| Software | Dewesoft RT |
| Device protocols | openDAQ, OPC-UA |
| Power | |
| Power Supply | 9 - 57 V DC |
| Power consumption | *Configuration dependent |
| Power supply connector | 2-pin LEMO 1B Series male |
| Power Out | Input supply on 2-pin LEMO 1B Series female |
| Environmental | |
| Operating Temperature | -10 to 50 °C (optional -40 to 70 °C) |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95 % RH non condensing @ 60 °C |
| IP rating | IP20 |
| Shock & Vibration | Vibration sweep sinus (EN 60068-2-6:2008) Vibration random (EN 60721-3-2: 1997 - Class 2M2) Shock (EN 60068-2-27:2009) MIL-STD-810D |
| Physical | |
| Dimensions | 266 mm x 149 mm x 55 mm |
| Rev: 1712304000 | |
| 1) Currently, this functionality doesn't have firmware support yet. | |
Översikt över SIRIUS® X-förstärkare
| X 16xLVe | X 32xLV | X 16ACC | |
|---|---|---|---|
| Connectors | Terminal block | Terminal block | BNC |
| Max. Channels per slice | 16x | 32x | 16x |
| Data rate per channel | 200 kS/s | 100 kS/s | 200 kS/s |
| Resolution | 24-bit | 24-bit | 24-bit |
| Bandwidth | 0.433*fs | 0.433*fs | 0.433*fs |
| Voltage mode ranges | ±100 V, ±5 V | ±200 V, ±10 V | ±10 V, ±5 V, ±1 V, ±200 mV |
| Input coupling | DC | DC | DC, AC 1 Hz, AC 0.1 Hz |
| Sensor excitation | 0...24V (unipolar) | ✗ | 2 mA, 4 mA, 6 mA |
| Bridge connection | ✗ | ✗ | ✗ |
| Programmable shunt | ✗ | ✗ | ✗ |
| IEPE input | ✗ | ✗ | ✓ |
| Resistance | ✗ | ✗ | ✗ |
| Temperature (PTx) | ✗ | ✗ | ✗ |
| Thermocouple | ✗ | ✗ | ✗ |
| Current | ✓ (ext shunt) (See 1) | ✗ | ✗ |
| Potentiometer | ✓ (See 1) | ✗ | ✗ |
| LVDT | ✗ | ✗ | ✗ |
| Charge | ✗ | ✗ | ✗ |
| TEDS | ✓ (See 1) | ✗ | ✓ |
| Isolation voltage | 250 V | 250 V | 250V |
| Isolation arrangement | Ch-GND | Ch-GND | Ch-GND |
| PoE functionality | ✓ | ✓ | ✓ |
| Advanced functions | High isolation, high input range | High isolation, high input range | IEPE, supports TEDS, high channel density |
| Rev: 1724155200 | |||
| 1) This functionality will be available with a firmware upgrade. | |||
SIRIUS-X-16xACC tekniska specifikationer
| Analog inputs | SIRIUS X 16xACC | ||||
|---|---|---|---|---|---|
| Input type | Voltage, IEPE | ||||
| Number of channels | 16 | ||||
| ADC Type | 24-bit delta-sigma with anti-aliasing filter (-3 dB @ 160 kHz) Butterworth 2nd order | ||||
| Sampling Rate | Simultaneous 200 kS/sec per channel (software-selectable) | ||||
| Voltage mode | |||||
| Voltage Ranges | ±10 V | ±5 V | ±1 V | ±0.2 V | |
| Input Accuracy | DC | ±0.02 % of reading ±0.02 % of range | |||
| Noise floor, Typ. | 10 kS/s / 100 kS/s / 200 kS/s | -117 dB / -107 dB / -106 dB | -117 dB / -107 dB / -106 dB | -115 dB / -105 dB / -103 dB | -105 dB / -96 dB / -93 dB |
| Dynamic Range, Typ. | 10 kS/s / 100 kS/s / 200 kS/s | -160 dB / -154 dB / -154 dB | -160 dB / -155 dB / -155 dB | -157 dB / -152 dB / -150 dB | -150 dB / -142 dB / -140 dB |
| CMR, Typ. 0 dBFS sine wave @ 50 Hz / 400 Hz / 1 kHz | 10 kS/s | 118 dB / 112 dB / 105 dB | 120 dB / 117 dB / 111 dB | 118 dB / 116 dB / 111 dB | 109 dB / 108 dB / 107 dB |
| 100 kS/s | 109 dB / 108 dB / 103 dB | 110 dB / 110 dB / 107 dB | 108 dB / 108 dB / 107 dB | 99 dB / 99 dB / 98 dB | |
| 200 kS/s | 108 dB / 107 dB / 103 dB | 109 dB / 108 dB / 107 dB | 106 dB / 106 dB / 105 dB | 96 dB / 96 dB / 96 dB | |
| THD, Typ. -1 dBFS sine wave @ 1 kHz | 10 kS/s / 100 kS/s / 200 kS/s | -105 dB / -101 dB / -98 dB | -104 dB / -102 dB / -98 dB | -104 dB / -102 dB / -98 dB | -102 dB / -102 dB / -97 dB |
| SFDR, Typ. -1 dBFS sine wave @ 1 kHz | 10 kS/s / 100 kS/s / 200 kS/s | 106 dBc / 104 dBc / 100 dBc | 106 dBc / 104 dBc / 100 dBc | 100 dBc / 100 dBc / 98 dBc | 97 dBc / 95 dBc / 93 dBc |
| SNR, Typ. -1 dBFS sine wave @ 1 kHz | 10 kS/s / 100 kS/s / 200 kS/s | 108 dB / 102 dB / 102 dB | 104 dB / 102 dB / 99 dB | 95 dB / 92 dB / 90 dB | 90 dB / 86 dB / 84 dB |
| Gain Linearity | < 0.02 % | ||||
| Gain Drift | Typical 6 ppm/K, max. 15 ppm/K | ||||
| Offset Drift | Typical 0.5 μV/K + 0.5 ppm of range/K, max 2 μV/K + 2 ppm of range/K | ||||
| Channel Cross talk typ. @ 1 kHz | -130 dB | -130 dB | -130 dB | -125 dB | |
| Input Coupling | DC, AC 0.1 Hz, 1 Hz | ||||
| Input Impedance | 1 MΩ | ||||
| Overvoltage Protection | In+ to In-: 50 V continuous, 200 V peak (10 msec) | ||||
| Analog input performance | |||||
| Sample rate | SR ≤ 2 kS/s | SR > 2 kS/s | |||
| Bandwidth (-3 dB) | 0.489*fs | 0.433*fs | |||
| Alias-free Bandwidth | DC to 0.44*fs | DC to 0.499*fs | |||
| Alias Rejection | -105 dB (all sample rates) | ||||
| Delay Through ADC | 34 / fs | ||||
| Oversampling | 128 | ||||
| IEPE input | |||||
| Excitation | 2 mA, 4 mA, 6 mA | ||||
| Excitation accuracy | 10% | ||||
| Compliance voltage | 24 V | ||||
| Output Impedance | >60 kΩ | ||||
| Sensor detection | Shortcut: <4 V; Open: >19 V | ||||
| Additional Specifications | |||||
| Modular | SIRIUS X 16xACC | ||||
| Input connector | BNC | ||||
| Isolation voltage | 250 Vpeak channel to ground | ||||
| TEDs support | IEPE mode only (class 1) | ||||
| Power supply | 9 - 57 V DC, Power over Ethernet: 48 - 57 V DC (PoE++ power delivery) | ||||
| Power consumption | TB @Typ. 24 V / MAX. 56 V | Voltage mode: Typ. 9.1 W / Max. 10.3 W IEPE mode: Typ. 11.7 W @4 mA, 13.2 W @6 mA / Max. 12.9 W @4 mA, 14.3 W @6 mA | |||
| PoE @Min. 48 V / MAX. 56 V | Voltage mode: min. 10.2 W / Max. 10.5 W IEPE mode: min. 12.7 W @4 mA, 14.2 W @6 mA / Max. 13.2 W @4 mA, 14.6 W @6 mA | ||||
| Weight | 1700 g | ||||
| Slice Dimensions | 266 mm x 149 mm x 55 mm | ||||
| Rev: 1712304000 | |||||
SIRIUS-X-16xLVe tekniska specifikationer
| Inputs | SIRIUS X 16xLVe | ||
|---|---|---|---|
| Input types | Voltage, Potentiometer (See 1), Current (Ext. shunt) (See 1) | ||
| Number of channels | 16 | ||
| ADC Type | 24-bit delta-sigma with anti-aliasing filter (-3 dB @ 160 kHz) Butterworth 2nd order | ||
| Sampling Rate | Simultaneous up to 200 kS/s | ||
| Voltage Mode | |||
| Ranges | SR | ±100 V | ±5 V |
| Input Accuracy | DC | ±0.03 % of reading ±0.02 % of range | |
| Noise floor, Typ. | 10kS/s/ 100kS/s / 200kS/s | -118 dB / -109 dB / -107 dB | -103 dB / -93 dB / -90 dB |
| Dynamic Range, Typ. | 10kS/s/ 100kS/s / 200kS/s | -141 dB / -144 dB / -141 dB | -132 dB / -131 dB / -127 dB |
| CMR, Typ. 0 dBFS sine wave @ 50 Hz / 400 Hz / 1 kHz | 10kS/s | -115 dB / -103 dB/ -99 dB | -103 dB / -102 dB / -100 dB |
| 100kS/s | -108 dB / -101 dB / -98 dB | -93 dB / -93 dB / -93 dB | |
| 200kS/s | -106 dB / -101 dB / -98 dB | -90 dB / -90 dB / -90 dB | |
| THD, Typ. -1 dBFS sine wave @ 1 kHz | 10kS/s/ 100kS/s / 200kS/s | -95 dB / -95 dB / -96 dB | -110 dB / -106 dB / -99 dB |
| SFDR, Typ. -1 dBFS sine wave @ 1 kHz | 10kS/s/ 100kS/s / 200kS/s | -104 dBc / -98 dBc/ -98 dBc | -109 dBc / -107 dBc/ -102 dBc |
| SNR, Typ. -1 dBFS sine wave @ 1 kHz | 10kS/s/ 100kS/s / 200kS/s | 107 dB / 102 dB / 100 dB | 98 dB / 88 dB / 85 dB |
| Gain Linearity | <0.02 % | <0.01 % | |
| Gain Drift | Typical 5 ppm/K, Max. 20 ppm/K | ||
| Offset Drift | Typical 5 ppm of range/K, Max. 10 ppm of range/K | ||
| Channel CrosstalkChannel Cross talk typ. @ 1 kHz | -131 | ||
| Input Coupling | DC | ||
| Input Impedance | 800 kΩ (between In+ and In-) | ||
| Input Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | ||
| Max. common mode voltage | ±200 V | ||
| Isolation | 250 V functional isolation (channel to power supply ground) | ||
| Analog input performance | |||
| Sampling rate | SR ≤ 2 kS/s | SR > 2 kS/s | |
| Bandwidth (-3 dB) | 0.489*fs | 0.433*fs | |
| Alias-free Bandwidth | DC to 0.44*fs | DC to 0.499*fs | |
| Alias Rejection | -105 dB (all sample rates) | ||
| Delay Through ADC | 34 / fs | ||
| Oversampling | 32 | ||
| Excitation Voltage | |||
| Excitation voltage | Unipolar 2 ... 24V DC | ||
| Current limit | 2.8 W max. power per channel, 22.4 W per slice | ||
| Excitation accuracy | 0.05 % ± 2 mV | ||
| Drift | ±20 ppm/K ± 60 μV/K | ||
| Stability 10 % to 90 % load | < 0.06 @ 5 V exc (< 0.01 @ 24 V exc) | ||
| Noise @ 10 V / 350 Ω | <150 μVrms @ 10 kS | ||
| Load regulation over 10 Ω of change | < 0.04 % @ 120 Ω load | ||
| Protection | Continuous short to ground | ||
| Additional Specifications | |||
| Modular | SIRIUS X 16xLVe | ||
| Input connector | Terminal block | DSUB-37 | |
| TEDS support | Yes (See 1) | ||
| Power supply | 9 - 57 V DC, Power over Ethernet: 48 - 57 V DC (PoE++ power delivery) | ||
| Power consumption | TB @Typ. 24 V / MAX. 56 V | Analog input only: Typ. 8.7 W/ MAX. 10.9 W Excitation: Typ 15.5 W 120 Ω load @ 5 V / 74 W 120 Ω load @ 20 V MAX: 18.9 W 120 Ω load @ 5 V / 87 W 120 Ω load @ 20 V | |
| PoE @min 48 V / MAX. 56 V | Analog input only: min: 10.4 W / MAX. 11.1 W Excitation min 19 W 120 Ω load @ 5 V / 85.2 W 120 Ω load @ 20 V MAX 19.4 W 120 Ω load @ 5 V / 88.2 W 120 Ω load @ 20 V | ||
| Weight | 1700 g | ||
| Slice Dimensions | 266 mm x 149 mm x 55 mm | ||
| Rev: 1712304000 | |||
| 1) This functionality will be available with a firmware upgrade. | |||
SIRIUS-X-32xLV tekniska specifikationer
| Analog input | SIRIUS X 32xLV | ||
|---|---|---|---|
| Input type | Voltage | ||
| Number of channels | 32 | ||
| ADC Type | 24-bit delta-sigma with anti-aliasing filter (-3 dB @ 160 kHz) Butterworth 2nd order | ||
| Sampling Rates | Simultaneous up to 100 kS/s | ||
| Voltage mode | |||
| Voltage ranges | ±200 V | ±10 V | |
| Input Accuracy | DC | ±0.03 % of reading ±40 mV | ±0.03 % of reading ±2 mV |
| Noise floor, Typ. | 10 kS/s / 100 kS/s | -116 dB / -106 dB | -105 dB / -96 dB |
| Dynamic Range | 10 kS/s / 100 kS/s | -158 dB / -152 dB | -147 dB / -140 dB |
| CMR, Typ. -1 dBFS on 10V and -6dB on 200V sine wave @ 1 kHz @ 50 Hz / 400 Hz / 1 kHz | 10 kS/s | -94 dB / -94 dB / -93 dB | -98 dB / -98 dB / -97 dB |
| 100 kS/s | -94 dB / -93 dB / -93 dB | -94 dB / -94 dB / -93 dB | |
| THD, Typ. -1 dBFS on 10V and -6dB on 200V sine wave @ 1 kHz | 10 kS/s / 100 kS/s | -92 dB / -92 dB | -107 dB / -103 dB |
| SFDR, Typ. -1 dBFS on 10V and -6dB on 200V sine wave @ 1 kHz | 100 kS/s | 94 dBc / 94 dBc | 109 dBc / 106 dBc |
| SNR Typ. -1 dBFS on 10V and -6dB on 200V sine wave @ 1 kHz | 10 kS/s / 100 kS/s | 103 dB / 95 dB | 103 dB / 95 dB |
| Gain Linearity | < 0.01 % | ||
| Gain Drift | Typical 10 ppm/K, Max. 40 ppm/K | ||
| Offset Drift | Typical 2 ppm of range/K, Max. 5 ppm of range/K | ||
| Crosstalk (0 dBFS @ 1 kHz) | -115 dB | -130 dB | |
| Input Coupling | DC | ||
| Input Impedance | 800 kΩ | ||
| Max. common mode voltage | ±200 V | ||
| Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | ||
| Analog input performance | |||
| Bandwidth (-3 dB) | 0.433*fs (0.49*fs @ < 5 kS/s) | ||
| Alias-free Bandwidth | DC to 0.499*fs (DC to 0.44*fs @ < 5 kS/s) | ||
| Alias Rejection | -105 dB (all sample rates) | ||
| Delay Through ADC | 34 / fs | ||
| Oversampling | 32 | ||
| Additional Specifications | |||
| Modular | SIRIUS X 32xLV | ||
| Input Connectors | Terminal block 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 | ||
| Power supply | 9 - 57 V DC, Power over Ethernet: 48 - 57 V DC (PoE++ power delivery) | ||
| Isolation Voltage | 250 V functional isolation (channel to power supply ground) | ||
| Power consumption | TB @Typ. 24 V / MAX. 56 V | Voltage mode: Typ. 8.5 W / Max. 10.4 W | |
| PoE @Min. 48 V / MAX. 56 V | Voltage mode: Typ. 10.1 W / Max. 10.7 W | ||
| Weight | 1700 g | ||
| Slice Dimensions | 266 mm x 149 mm x 55 mm | ||
| Rev: 1712304000 | |||
