Tehnične specifikacije IOLITE® Modular
- Specifikacije modularnega sistema IOLITE®
- Pregled ojačevalnih modulov IOLITE® One
- Pregled večkanalnih ojačevalnih modulov IOLITE®
- Specifikacije IOLITEi-1xACC
- Specifikacije IOLITEi-1xSTG
- Specifikacije IOLITEi-4xDI
- Specifikacije IOLITEi-4xDO
- Tehnične specifikacije IOLITEi-3xMEMS-ACC-8g
- Tehnične specifikacije IOLITEi-3xMEMS-ACC-40g
- Tehnične specifikacije IOLITEi-3xMEMS-ACC-S
- Tehnične specifikacije IOLITEi-2xMEMS-INC
- IOLITEi-1xMEMS-ACC-Z

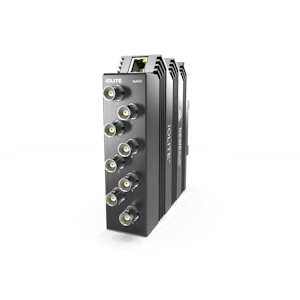

- Specifikacije IOLITE-8xACC

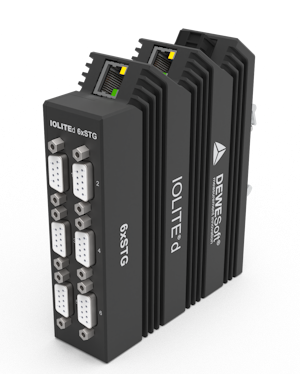

- Specifikacije IOLITE-6xSTG

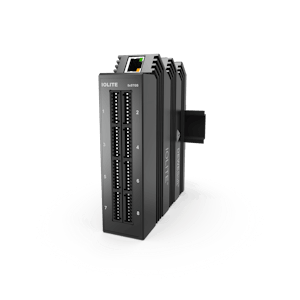

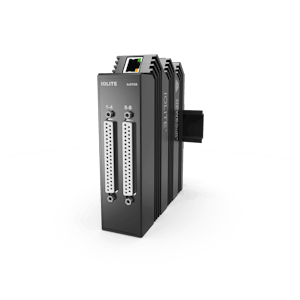

- Specifikacije IOLITE-8xSTGS
- Specifikacije IOLITE 8xSTGS (v2)
- Specifikacije IOLITEi-8xLV

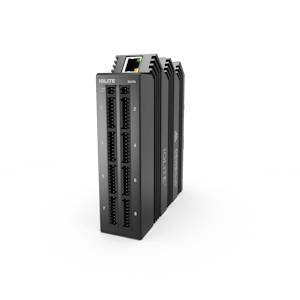

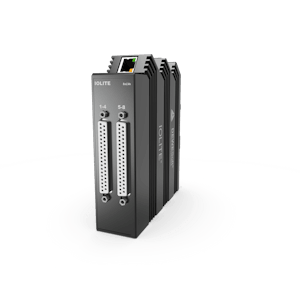

- Specifikacije IOLITE-8xLVe

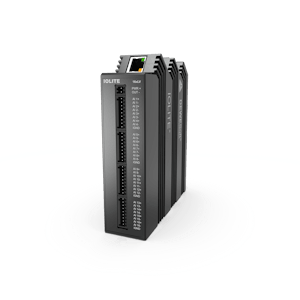

- Specifikacije IOLITE-16xLV
- Specifikacije IOLITEi-4xHV

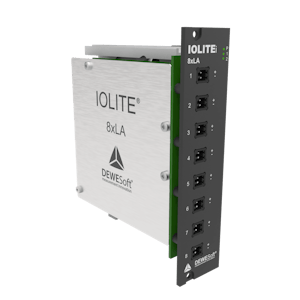

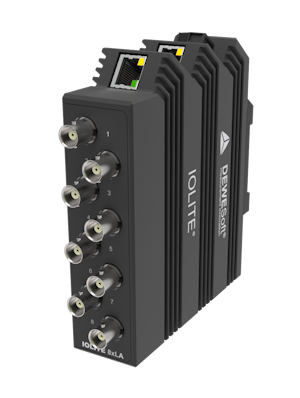

- Specifikacije IOLITEi-8xLA
- Specifikacije IOLITEi-8xTH

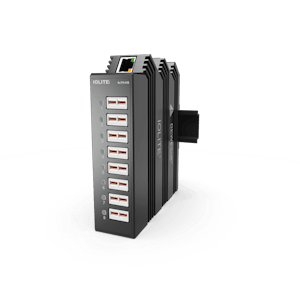

- Specifikacije IOLITEi-8xTH-HS

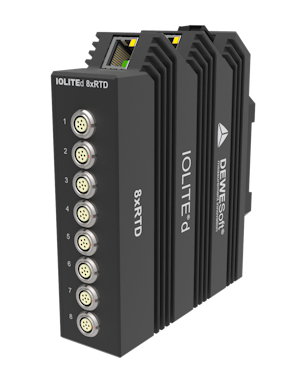

- Specifikacije IOLITEi-8xRTD

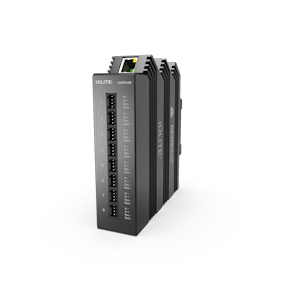

- Specifikacije IOLITEi-8xRTD-HS
- Specifikacije IOLITEi-8xRTDp

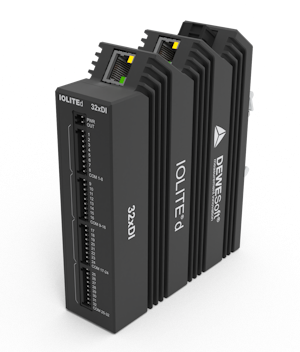

- Specifikacije IOLITE-32xDI

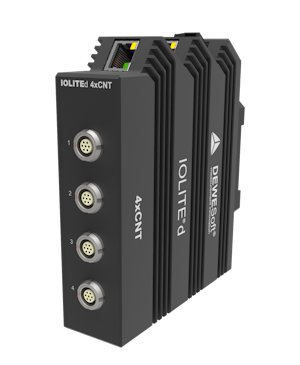

- Specifikacije IOLITE-4xCNT

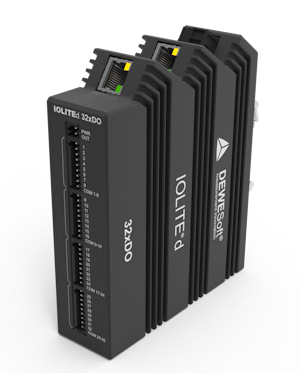

- Specifikacije IOLITE-32xDO

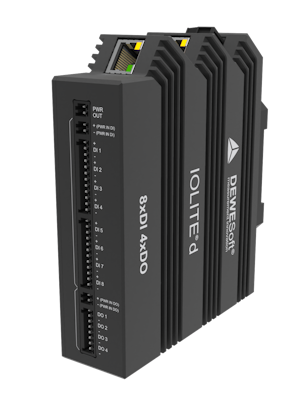

- Specifikacije IOLITE-8xDI-4xDO
- Tehnične specifikacije IOLITE-16xAO
- Tehnične specifikacije IOLITEi-4xCAN-FD
Specifikacije modularnega sistema IOLITE®
| Interface | IOLITE Single channel | IOLITE Multi channel |
|---|---|---|
| Data interface | EtherCAT | EtherCAT |
| Data Rate | 100 Mbps Full Duplex bus speed | 100 Mbps Full Duplex bus speed |
| Sync Accuracy | < 200 ns within same EtherCAT chain < 2 µs using sync for multiple EtherCAT chains below 1 sample to Sirius® | < 200 ns within same EtherCAT chain < 2 µs using sync for multiple EtherCAT chains below 1 sample to Sirius® |
| Bus connectors | Ethernet RJ45 | Ethernet RJ45 |
| Max. cable length between devices | 100 m | 100 m |
| Max. Throughput per Chain | From 6 MB/s to 10 MB/s (see 1) | From 6 MB/s to 10 MB/s |
| Data interface connection | Ethernet RJ45, Single cable for data, power and sync, daisy chainable | Ethernet RJ45, single cable for data, power and sync, daisy chainable (see 2) |
| Power | ||
| Power supply | 9 V - 48 V | 9 V - 48 V |
| Power consumption | ~2 W (see individual modules) | ~4 W (see individual modules) |
| Power supply connector | - | SCDN-THR 3.81/04/90G 3.2SN BK BX |
| Environmental | ||
| Operating Temperature | -20 to 60 °C | -40 to 85 °C |
| Storage Temperature | -20 to 60 °C | -40 to 85 °C |
| Humidity | 95 %, no condensation | 95 %, no condensation |
| IP rating | IP20 | IP20 |
| Physical | ||
| Dimensions | 82 x 62 x 52 mm (might differ for different modules) | 137 x 119 x 35 (might differ for different modules) |
| Weight | 130 g (might differ for different modules) | 530 g (might differ for different modules) |
| 1) 55 per chain (@ 20 kS/s total sample rate per device), multiple chains possible. Additional power injectors are necessary. | ||
| 2) Passive PoE is supported only on IOLITE-16xLV, IOLITE-8xSTGS, IOLITEi-8xTH-HS, IOLITEi-8xRTD-HS, IOLITE-8xLVe, IOLITE-8xACC. All other modules have power and data separated. Daisy-chain for data is available with Ethernet RJ45 cable, Daisy-chain for power is available with T3B2m-T3B2m-0.1m cable | ||
| Rev: 1668186000 | ||
Pregled ojačevalnih modulov IOLITE® One
| 1xACC | 1xSTG | 4xDI | 4xDO | 1xAO | |
|---|---|---|---|---|---|
| Connector | BNC | DB9 | DSUB15HD male | DSUB15HD female | BNC |
| Number of channels per module | 1 | 1 | 4 | 4 | 1 |
| Data rate per channel | 40 kS/s | 40 kS/s | 20 kS/s | ||
| Resolution | 24-bit | 24-bit | Digital | Digital | 18-bit |
| Bandwidth | 0.49 fs | 0.49 fs | ✗ | ✗ | ✗ |
| Voltage ranges | ±10 V, ±5 V, ±1 V, ±200 mV | ±50 V, ±10 V, ±1 V, ±100 mV | Digital (Low: < 1 V, High: > 2 V) | ✗ | ±10 V |
| Input coupling | DC, AC 0.1 Hz, 1 Hz | DC, AC 1 Hz | |||
| Sensor excitation | IEPE 4 mA, 8 mA | Unipolar 0 - 24 V Bipolar 0 - 12 V | ✗ | ✗ | ✗ |
| Bridge connection | ✗ | Full, ½, ¼ 350 Ω, ¼ 120 Ω 3 wire | ✗ | ✗ | ✗ |
| Programmable shunt | ✗ | 100 kΩ | ✗ | ✗ | ✗ |
| IEPE input | ✓ | DSI-ACC | ✗ | ✗ | ✗ |
| Resistance | ✗ | ✓ | ✗ | ✗ | ✗ |
| Temperature (PTx) | ✗ | DSI-RTD | ✗ | ✗ | ✗ |
| Thermocouple | ✗ | DSI-TH | ✗ | ✗ | ✗ |
| Current | ✗ | 2 mA, 20 mA (internal shunt) | ✗ | ✗ | ✗ |
| Potentiometer | ✗ | ✓ | ✗ | ✗ | ✗ |
| LVDT | ✗ | DSI-LVDT | ✗ | ✗ | ✗ |
| Charge | ✗ | DSI-CHG | ✗ | ✗ | ✗ |
| TEDS | ✓ (IEPE only) | ✓ | ✗ | ✗ | ✗ |
| Isolation | 125 Vrms Isolation CH, GND | 125 Vrms Isolation CH, GND | CH-CH, GND-GND | CH-GND | ✗ |
| Power consumption | 2W | 2.5W | 2.5W | 2.5W | 2W |
| Rev: 1593518446 | |||||
Pregled večkanalnih ojačevalnih modulov IOLITE®
| 6xSTG | 8xSTGS | 8xLV | 8xLVe | 16xLV | 4xHV | 8xLA | 8xACC | 8xTH | 8xTH-HS | 8xRTD | 8xRTD-HS | 8xRTDp¹ | 32xDI | 32xDO¹ | 8xDI-4xDO¹ | 4xCNT | 16xAO² | 4xCAN-FD¹ | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connectors | DSUB-9 | Terminal block, DSUB-37 | BNC, Terminal block | Terminal block, DSUB-37 | Terminal block | Banana plug | BNC, Terminal block | BNC | MINI TC | MINI TC | L0B6f, Terminal block | L0B6f, Terminal block | L0B6f | Terminal block | Terminal block | Terminal block | L1B7f | Terminal block | D-SUB9 |
| Channels per module | 6x | 8x | 8x | 8x | 16x | 4x | 8x | 8x | 8x | 8x | 8x | 8x | 8x | 32x | 32x | 8x digital in, 4x digital out | 4x | 16x | 4x |
| Data rate per channel IOLITE | 20 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 40 kS/s | 20 kS/s | 40 kS/s | 100 S/s | 100 S/s, upgradable to 10 kS/s | 100 S/s | 100 S/s, upgradable to 10 kS/s | 100 S/s | 20 kS/s | ✗ | ✗ | 20 kS/s | 1 kS/s | up to 5 Mbit/s |
| Data rate per channel OBSIDIAN | 20 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 5 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 100 S/s | 100 S/s, upgradable to 5 kS/s | 100 S/s | 100 S/s, upgradable to 5 kS/s | not supported | 10 kS/s | not supported | not supported | 20 kS/s | 1 kS/s | not supported |
| Resolution | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | digital | digital | digital | 100 MHz timebase 5 ppm, 20 ppm max | 16-bit | Digital |
| Bandwidth | 0.49*fs | 0.433*fs | 0.49*fs | 0.433*fs | 0.433*fs | 0.433*fs | 0.49*fs | 0.433*fs | ✗ | 0.49*fs (max. 1 kHz) | ✗ | 0.49*fs (max. 1 kHz) | ✗ | ✗ | ✗ | ✗ | 10 MHz | ✗ | ✗ |
| Voltage mode ranges | ±50 V, ±10 V, ±1 V, ±100 mV | ✗ | ±100 V, ±10 V (±10 V, ±1 V on request) | ±100 V, ±5 V | ±200 V, ±10 V | ±2000 V, ±1000 V, ±400 V, ±200 V | ✗ | ±10 V, ±5 V, ±1 V, ±200 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ✗ | open collector | ✗ | TTL (Low: <0.8 V, High > 2 V) | ±10 V | ✗ |
| Input coupling | DC, AC 1 Hz | DC | DC | DC | DC | DC | DC | DC, AC 1 Hz, AC 0.1 Hz | DC | DC | DC | DC | DC | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Sensor excitation | 0..24 V (unipolar), 0..12 V (bipolar), 0..44 mA (current), max. 0.55 W/ch | 1 V, 2 V, 5 V | ✗ | 0...24V (unipolar) | ✗ | ✗ | ✗ | 2 mA, 4 mA, 6 mA | ✗ | ✗ | 244 uA / 440 uA | 150 uA / 400 uA | 0.4 mA / 2 mA | ✗ | ✗ | ✗ | 5 V, 12 V | ✗ | 5 V (max. 240 mA), 12 V (max. 100 mA) |
| Bridge connection | Full, ½, ¼ 350 Ω, ¼ 120 Ω 3-wire | Full, ½, ¼ 350 Ω, ¼ 120 Ω 3-wire, 4-wire (optional) | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Programmable shunt | 100 kΩ | 100 kΩ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| IEPE input | DSI-ACC | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Resistance | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | 1 kΩ, 10 kΩ | 1 kΩ, 10 kΩ | 100 Ω, 1 kΩ, 10 kΩ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Temperature (PTx) | DSI-RTD | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | PT100, 200, 500, 1000, 2000 | PT100, 200, 500, 1000, 2000 | PT100, 200, 500, 1000, 2000 | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Thermocouple | DSI-TH | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | K, J, T, R, S, N, E, C, B | K, J, T, R, S, N, E, C, B | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Current | 20 mA (internal shunt), DSI-5A, DSIi-10A, DSIi-20A | ✗ | ✗ | ✗ | ✗ | ✗ | ±20 mA, ±2 mA | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Potentiometer | ✓ | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| LVDT | DSI-LVDT | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Charge | DSI-CHG | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| TEDS | ✓ | ✓ (except DB37) | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Isolation voltage | Differential | Differential | 450 V | 250 V | 250 V | CATII 1000 V | 450 V | 250V | 1000 V | 1000 V | 1000 V | 1000 V | 150 V | 1000 V | 1000 V | 1000 V | ✗ | ✗ | CATII 150 V |
| Isolation arrangement | None | Ch-GND | Ch-Ch & Ch-GND | Ch-GND | Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-GND, groups of 8 ch. | Ch-GND, groups of 8 ch. | Ch-GND, group of 4/8 ch | Ch-GND | Ch-GND | Ch-Ch & Ch-GND |
| Power consumption per module | Typ. 5.4 W, Max. 11.1 W | Typ. 2.7 W, Max. 5.1 W | Typ. 2.4 W, Max. 3.5 W | Typ. 3.3 W Max. 4.2 W | Typ. 3.4 W, Max. 4.2 W | Typ. 2.6 W Max. 3 W | Typ. 2.4 W, Max. 3.5 W | Typ. 4.5 W, Max. 6 W | 3.2 W | Typ. 2.6 W, Max. 3.4 W | Typ. 2.1 W, Max. 2.7 W | Typ. 3.5 W Max. 4.3 W | Typ. 2.1 W, Max. 2.7 W | Typ. 1.2 W, Max. 1.9 W | Typ. 1.2 W, Max. 2.0 W | Typ. 1.1 W, Max. 1.8 W | Typ. 1.9 W | Typ. 4.3 W, Max. 7.2 W | Typ. 2.5 W Max. 10.5 W |
| Waterproof version | ✓ (IP67) | ✓ (IP67) | ✗ | ✓ (IP67) | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ (IP65) | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ (IP67) | ✗ | ✓ |
| Passive PoE functionality | ✓³ | ✓ | ✓³ | ✓ | ✓ | ✓ | ✓³ | ✓ | ✓³ | ✓ | ✓³ | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✓ |
| Advanced functions | Supports all strain types, high input range | Supports all strain types, low power consumption | High isolation, high input range | High isolation, high input range | High isolation, high input range | High isolation, high input range | High isolation, high input range | IEPE, supports TEDS, high channel density | High isolation, support of main TC types | High isolation, support of main TC types | High isolation | High isolation | Pulsed excitation, Cryogenic temperature range, High isolation | ✗ | Watchdog | High sink current, watchdog | Supercounter technology | Signal conditioning | CAN bus, Isolated |
| ¹ Not supported on the OBSIDIAN ² Third party ECAT master Data rate = 1 kS/s ³ Available for devices produced after September 2024. | |||||||||||||||||||
| Rev: 1701068400 | |||||||||||||||||||
Specifikacije IOLITEi-1xACC
| Analog inputs | ||||
|---|---|---|---|---|
| Input types | Voltage, IEPE | |||
| Number of channels | 1 | |||
| Input connector | BNC | |||
| ADC Type | 24-bit SAR with anti-aliasing filter | |||
| Sampling Rate | 40 kS/s (50 kS/s while using it standalone) | |||
| Voltage Mode | ||||
| Ranges | ±10 V | ±5 V | ±1 V | ±200 mV |
| Typ. Input Accuracy | ±0.03 % of reading ±0.02 % of range ±0.1 mV | |||
| Typ. SNR (10 kS/sec, -1 dBFS sine wave @ 1 kHz) | 90 dB | 90 dB | 89 dB | 88 dB |
| Type. SFDR (10 kS/sec, -1 dBFS sine wave @ 1 kHz) | 113 dB | 110 dB | 109 dB | 106 dB |
| Typ. Noise floor @ 10 kS/sec | -100 dB | -99 dB | -99 dB | -98 dB |
| Typical CMR @ 400 Hz / 1 kHz | 130 dB / 120 dB | 122 dB / 119 dB | 104 dB / 97 dB | 90 dB / 84 dB |
| Gain Drift | typ. 10 ppm/K (max. 40 ppm/K) | |||
| Offset Drift | typ. 0.3 μV/K + 5 ppm of range/K (max. 2 µV/K + 10 ppm of range/K) | |||
| Gain Linearity | < 0.02 % | |||
| Input Coupling | DC, AC 0.1 Hz, 1 Hz | |||
| Input Impedance | 1 MΩ | |||
| Overvoltage Protection | In+ to In-: 50 V continuous, 200 V peak (10 msec) | |||
| Isolation | 125 Vrms channel to ground isolation | |||
| Analog input performance | ||||
| Bandwidth (-3 dB) | 0.49 fs | |||
| Alias-free Bandwidth | DC to 0.453 fs | |||
| Alias Rejection | -100 dB (all sample rates) | |||
| Delay Through ADC | 37 / fs | |||
| Oversampling | 32 | |||
| IEPE input | ||||
| Excitation | 4 mA, 8 mA | |||
| Compliance voltage | 24 V | |||
| Sensor detection | Shortcut: <4 V; Open: >19 V | |||
| TEDS support | IEPE mode only | |||
| Power | ||||
| Power consumption | 2 W | |||
| Environmental | ||||
| IP rating | IP20 | |||
| Physical | ||||
| Dimensions | 93 x 67 x 28 mm | |||
| Weight | 130 g | |||
| Rev: 1593518446 | ||||
Specifikacije IOLITEi-1xSTG
| Analog input - Voltage | ||||
|---|---|---|---|---|
| Input types | Voltage, current, full bridge strain, half bridge strain, quarter bridge strain | |||
| Number of channels | 1 | |||
| Input connector | DB9 | |||
| ADC Type | 24-bit SAR with anti-aliasing filter | |||
| Sampling Rate | 40 kS/s | |||
| Voltage Mode | ||||
| Ranges | ±50 V | ±10 V | ±1 V | ±100 mV |
| Typ. Input Accuracy | ±0.03 % of reading ±0.02 % of range ±0.1 mV | |||
| Typ. SNR (10 kS/sec, -1 dBFS sine wave @ 1 kHz) | 89 dB | 88 dB | 88 dB | 87 dB |
| Type. SFDR (10 kS/sec, -1 dBFS sine wave @ 1 kHz) | 100 dB | 110 dB | 130 dB | 145 dB |
| Typ. Noise floor @ 10 kS/sec | -103 dB | -99 dB | -103 dB | -96 dB |
| Typical CMR @ 400 Hz / 1 kHz | 71 dB / 66 dB | 72 dB / 66 dB | 96 dB / 88 dB | 96 dB / 87 dB |
| Gain Drift | typ. 10 ppm/K (max. 40 ppm/K) | |||
| Offset Drift | typ. 0.3 μV/K + 5 ppm of range/K (max. 2 µV/K + 10 ppm of range/K) | |||
| Gain Linearity | < 0.02 % | |||
| Input Coupling | DC, AC 1 Hz | |||
| Input Impedance | Range ≥ 10 V; 1 MΩ between IN+ and IN- Range < 10 V: 20 MΩ | |||
| Overvoltage Protection | Range ≥ 10 V; 200 V Range < 10 V: 50 V | |||
| Isolation | 125 Vrms channel to ground isolation | |||
| TEDS support | Standard + DSI adapters | |||
| Current mode | ||||
| Current ranges | 2 mA, 20 mA | |||
| Input Accuracy | ±0.03 % of reading, ±0.02 % of range, ±2.1 μA | |||
| Internal Shunt resistor | 50 Ω | |||
| Analog input performance | ||||
| Bandwidth (-3 dB) | 0.49 fs | |||
| Alias-free Bandwidth | DC to 0.453 fs | |||
| Alias Rejection | -100 dB (all sample rates) | |||
| Delay Through ADC | 37 / fs | |||
| Oversampling | 32 | |||
| Excitation voltage | ||||
| Excitation voltage | Free programmable (16-bit DAC) | |||
| Predefined Levels | Unipolar 0 - 24 V, Bipolar 0 - 12 V | |||
| Accuracy | ±0.05 % ±2 mV | |||
| Drift | ±50 ppm/K ±100 μV/K | |||
| Stability 10 % to 90 % Load | <0.01 % | |||
| Current Limit | 42 mA (400 mW max. Power) | |||
| Protection | Continuous short to ground | |||
| Bridge mode | ||||
| Bridge Connection Types | full bridge strain, ½ bridge strain, ¼ bridge strain (3 wire) | |||
| Bridge ranges | 2…1000 mV/V free programmable | |||
| Internal Bridge Completion | ½ bridge and ¼ bridge 120 and 350 Ω | |||
| Bridge Completion Accuracy | 0.05 %; TCR: 2 ppm/K (others on request) | |||
| Internal Shunt Resistor | 100 kΩ (others on request) | |||
| Shunt Resistor Accuracy | 0.1 %; TCR: 10 ppm/K (others on request) | |||
| Input Short, Sensor Offset Adjust | Software-selectable | |||
| Power | ||||
| Power consumption | 2.5 W | |||
| Environmental | ||||
| IP rating | IP20 | |||
| Physical | ||||
| Dimensions | 82 x 67 x 28 mm | |||
| Weight | 130 g | |||
| Rev: 1710761400 | ||||
Specifikacije IOLITEi-4xDI
| Digital Input | |
|---|---|
| Input type | Digital |
| Number of channels | 4 |
| Connector | DSBU15HD Male |
| Compatibility | TTL / CMOS Voltage Levels |
| Input low level | UIN < 1 V |
| Input high level | UIN > 2 V |
| Input high current @ 5 V UIN | 3 mA typ. |
| Input high current @ 30 V UIN | 6 mA typ. |
| Propagation delay | < 1 μs |
| Max. sampling rate | 40 kS/sec |
| Overvoltage protection | 30 V Continuous, 65 V peak |
| Isolation | Galvanic isolation CH, GND |
| Non-Isolated Sensor Power Supply | |
| Output Voltage +5 V | 5 V +/- 10 %, 300 mA max. |
| Output Voltage +12 V | 12 V +/-10 %, 100 mA max. |
| Output Voltage +Vecat | EtherCAT Bus Supply Voltage, 200 mA max. |
| Power | |
| Power consumption | 2.5 W |
| Environmental | |
| IP rating | IP20 |
| Physical | |
| Dimensions | 82 x 67 x 28 mm |
| Weight | 130 g |
| Rev: 1593518446 | |
Specifikacije IOLITEi-4xDO
| Digital Output | |
|---|---|
| Output type | Digital |
| Number of channels | 4 |
| Connector | DSUB15HD Female |
| Maximum update rate | depends on EtherCAT master cycle time |
| Output type | open collector with active internal pullup to 5 V |
| Sink | max 50 V, 2 A (resistive load, unprotected) |
| Source | 5 V, max. 40 mA (internally limited) |
| Max. switching frequency for internal PWM | 100 kHz |
| Isolation | Galvanic isolation CH, GND |
| Non-Isolated Sensor Power Supply | |
| Output Voltage +5 V | 5 V +/- 10 %, 300 mA max. Max. combined load on +5 V and +12 V pins: 1.5 W reduced by the load already present on +Vin pin |
| Output Voltage +12 V | 12 V +/-10 %, 100 mA max. Max. combined load on +5 V and +12 V pins: 1.5 W reduced by the load already present on +Vin pin |
| Output Voltage +Vecat | EtherCAT Bus Supply Voltage, 200 mA max. (see 1.) |
| Power | |
| Power consumption | 2.5 W |
| Environmental | |
| IP rating | IP20 |
| Physical | |
| Dimensions | 82 x 67 x 28mm |
| Weight | 130 g |
| Rev: 1593518446 | |
Tehnične specifikacije IOLITEi-3xMEMS-ACC-8g
| MEMS Accelerometer | |||
|---|---|---|---|
| Nr. of axes | 3 | ||
| Range | ±2, ±4, ±8g (software selectable) | ||
| Max. sample rate | 4 kS/s | ||
| -3 dB bandwidth (at 4 kS/s sample rate) | 0 Hz .. 1 kHz | ||
| Min. | Typ. | Max. | |
| Dynamic range | ✗ | 96 dB | ✗ |
| Noise density (lowest range) | ✗ | 25 µg/√Hz | ✗ |
| Residual noise (+-2 g range, 50 Hz bandwidth) | ✗ | 100 µg RMS | ✗ |
| Residual noise (+-2 g range, 125 Hz bandwidth) | ✗ | 150 µg RMS | ✗ |
| Calibrated offset error | ✗ | ±4 mg | ✗ |
| Calibrated gain error | ✗ | ±0.2 % | ✗ |
| Offset temperature drift (-20 .. 60 degC) | -0.15 mg / degC | ±0.02 mg / degC | 0.15 mg / degC |
| Semsitivity temperature drift (-20 .. 60 degC) | ✗ | ±0.01 % / degC | ✗ |
| Linearity error (smallest range) | ✗ | 0.1 % FS | ✗ |
| Crossaxis sensitivity | -1 % | ✗ | 1 % |
| MEMS Inclinometer | |||
| Option available | ✓ | ||
| Accuracy and resolution valid in range | ±15 deg | ||
| Relative accuracy (23 degC) | 0.01 deg | ||
| Resolution | 0.001 deg | ||
| Bandwidth | <0,1Hz | ||
| Update rate of inclination channels | 1Hz | ||
| Digital Temperature Input (only a dedicated temperature sensor is compatible) | |||
| Option available | ✓ | ||
| Measurement range | -55 to 125 °C | ||
| Measurement accuracy | +-0.5 °C | ||
| IP67 version | |||
| Option available | ✓ | ||
Tehnične specifikacije IOLITEi-3xMEMS-ACC-40g
| MEMS Accelerometer | |||
|---|---|---|---|
| Nr. of axes | 3 | ||
| Range | ±10, ±20, ±40g (software selectable) | ||
| Max. sample rate | 4 kS/s | ||
| -3 dB bandwidth (at 4 kS/s sample rate) | 0 Hz .. 1 kHz | ||
| Min. | Typ. | Max. | |
| Dynamic range | ✗ | 96 dB | ✗ |
| Noise density (lowest range) | ✗ | 75 µg/√Hz | ✗ |
| Residual noise (+-2 g range, 50 Hz bandwidth) | ✗ | ✗ | ✗ |
| Residual noise (+-2 g range, 125 Hz bandwidth) | ✗ | ✗ | ✗ |
| Calibrated offset error | -100 mg | 30 mg | 100 mg |
| Calibrated gain error | ±0.5 % | ||
| Offset temperature drift (-20 .. 60 degC) | -0.75 mg / degC | ±0.2 mg / degC | 0.75 mg / degC |
| Semsitivity temperature drift (-20 .. 60 degC) | ✗ | ±0.01 % / degC | ✗ |
| Linearity error (smallest range) | ✗ | 0.1 % FS | ✗ |
| Crossaxis sensitivity | ✗ | 1 % | ✗ |
| MEMS Inclinometer | |||
| Option available | ✗ | ||
| Digital Temperature input | |||
| Option available | ✗ | ||
| IP67 version | |||
| Option available | ✓ | ||
Tehnične specifikacije IOLITEi-3xMEMS-ACC-S
| MEMS Accelerometer | |||
|---|---|---|---|
| Nr. of axes | 3 | ||
| Range | ±15g | ||
| Max. sample rate | 1 kS/s | ||
| -6 dB bandwidth (at 1 kS/s sample rate) | 0 Hz .. 460 Hz | ||
| Min. | Typ. | Max. | |
| Dynamic range | ✗ | 137 dB | ✗ |
| Noise density | ✗ | 0.7 µg/√Hz | ✗ |
| Offser error | ✗ | ±4 mg | ✗ |
| Offset temperature drift (-20 .. 60 degC) | ✗ | +-0.2 mg / degC | ✗ |
| Linearity error -1g ... +1g range | ✗ | 0.05 % FS | ✗ |
| Crossaxis sensitivity | -1 % | ✗ | 1 % |
| MEMS Inclinometer | |||
| Option available | ✗ | ||
| Digital Temperature input | |||
| Option available | ✗ | ||
| IP67 version | |||
| Option available | ✓ | ||
Tehnične specifikacije IOLITEi-2xMEMS-INC
| MEMS Inclinometer | |
|---|---|
| Accuracy and resolution valid in range | ±15 deg |
| Relative accuracy (23 degC) | 0.01 deg |
| Resolution | 0.001 deg |
| Bandwidth | <0,1Hz |
| Update rate of inclination channels | 1Hz |
| IP67 version | |
| Option available | ✓ |
IOLITEi-1xMEMS-ACC-Z
| MEMS Accelerometer | |||
|---|---|---|---|
| Nr. of axes | 1 | ||
| Range | ±2, ±4, ±8g (software selectable) | ||
| Max. sample rate | 4 kS/s | ||
| -3 dB bandwidth (at 4 kS/s sample rate) | 0 Hz .. 1 kHz | ||
| Min. | Typ. | Max. | |
| Dynamic range | ✗ | 96 dB | ✗ |
| Noise density (lowest range) | ✗ | 25 µg/√Hz | ✗ |
| Residual noise (+-2 g range, 50 Hz bandwidth) | ✗ | 100 µg RMS | ✗ |
| Residual noise (+-2 g range, 125 Hz bandwidth) | ✗ | 150 µg RMS | ✗ |
| Calibrated offset error | ✗ | ±4 mg | ✗ |
| Calibrated gain error | ✗ | ±0.2 % | ✗ |
| Offset temperature drift (-20 .. 60 degC) | -0.15 mg / degC | ±0.02 mg / degC | 0.15 mg / degC |
| Semsitivity temperature drift (-20 .. 60 degC) | ✗ | ±0.01 % / degC | ✗ |
| Linearity error (smallest range) | ✗ | 0.1 % FS | ✗ |
| Crossaxis sensitivity | -1 % | ✗ | 1 % |
| Digital Temperature Input (only a dedicated temperature sensor is compatible) | |||
| Option available | ✓ | ||
| Measurement range | -55 to 125 °C | ||
| Measurement accuracy | +-0.5 °C | ||
| IP67 version | |||
| Option available | ✓ | ||
Specifikacije IOLITE-8xACC
| Analog inputs | |||||
|---|---|---|---|---|---|
| Input type | Voltage, IEPE | ||||
| Number of channels | 8 | ||||
| ADC Type | 24-bit delta-sigma with anti-aliasing filter | ||||
| Sampling Rate IOLITE | Simultaneous 40 kS/sec per channel (software-selectable) | ||||
| Sampling Rate OBSIDIAN | Simultaneous 20 kS/sec per channel (software-selectable) | ||||
| Voltage Mode | |||||
| Ranges | ±10 V | ±5 V | ±1 V | ±0.2 V | |
| Input Accuracy | DC | ±0.02 % of reading ±0.02 % of range | |||
| Noise floor, Typ. | 10 kS/s | -116 dB | -116 dB | -114 dB | -105 dB |
| Dynamic Range, Typ. | 10 kS/s | -151 dB | -151 dB | -150 dB | -140 dB |
| CMR, Typ. @ 40 kS/s | 0 dBFS sine wave @ 50 Hz | 113 dB | 113 dB | 111 dB | 102 dB |
| 0 dBFS sine wave @ 400 Hz | 112 dB | 112 dB | 110 dB | 102 dB | |
| 0 dBFS sine wave @ 1 kHz | 109 dB | 108 dB | 108 dB | 102 dB | |
| THD, Typ. | 40 kS/s, -1 dBFS sine wave @ 1 kHz | -104 dB | -104 dB | -104 dB | -102 dB |
| SFDR, Typ. | 40 kS/s, -1 dBFS sine wave @ 1 kHz | 106 dB | 106 dB | 99 dB | 96 dB |
| Gain Linearity | < 0.02 % | ||||
| Gain Drift | Typ. 5 ppm/K (Max. 15 ppm/K) | ||||
| Offset Drift | Typ. 0.5 μV/K + 0.5 ppm of range/K (Max. 2 μV/K + 2 ppm of range/K) | ||||
| Channel Cross talk, Typ. @ 1 kHz | -140 dB | -140 dB | -140 dB | -130 dB | |
| Input Coupling | DC, AC 0.1 Hz, 1 Hz | ||||
| Input Impedance | 1 MΩ | ||||
| Overvoltage Protection | In+ to In-: 50 V continuous, 200 V peak (10 msec) | ||||
| Isolation voltage | 250 Vpeak channel to ground | ||||
| Analog input performance | |||||
| Sampling rate | SR < 5 kS/s | SR ≥ 5 kS/s | |||
| Bandwidth (-3 dB) | 0.49*fs | 0.433*fs | |||
| Alias-free Bandwidth | DC to 0.44*fs | DC to 0.499*fs | |||
| Alias Rejection | -105 dB | ||||
| Delay Through ADC | 34 / fs | ||||
| Oversampling | 128 | ||||
| IEPE input | |||||
| Excitation | 2 mA, 4 mA, 6 mA | ||||
| Compliance voltage | 28 V | ||||
| Output Impedance | >50 kΩ | ||||
| Sensor detection | Shortcut: <4 V; Open: >19 V | ||||
| Additional Specifications | |||||
| Rack | IOLITEr-8xACC | ||||
| Input connector | BNC | ||||
| TEDs support | IEPE mode only (Class 1) | ||||
| Power supply | 9 - 48 V DC | ||||
| Power Consumption | Analog input only: Typ. 3.6 W (Max. 4 W) IEPE: Typ. 4.8 W @ 4 mA (Max. 6 W @ 6 mA) | ||||
| Weight | 320 g | ||||
| Slice Dimensions | 128.4 x 127.6 x 30.1 mm | ||||
| Additional Specifications | |||||
| Modular | IOLITE-8xACC | ||||
| Input connector | BNC | ||||
| TEDs support | IEPE mode only (Class 1) | ||||
| Power supply | 9 - 48 V DC | ||||
| Power Consumption | Analog input only: Typ. 3.7 W (Max. 4.5 W) IEPE: Typ. 4.9 W @ 4 mA (Max. 6.4 W @ 6 mA) | ||||
| Weight | 575 g | ||||
| Slice Dimensions | 136.75 x 127.2 x 35.0 mm | ||||
| Rev: 1681991028 | |||||
Specifikacije IOLITE-6xSTG
| Analog inputs | ||||
|---|---|---|---|---|
| Input type | Voltage Full / half / quarter bridge strain Current Potentiometer Resistance | |||
| Number of channels | 6 | |||
| ADC Type | 24-bit SAR with anti-aliasing filter | |||
| Sampling Rate | Simultaneous 20 kS/s per channel (software-selectable) | |||
| Voltage Mode | ||||
| Ranges | ±50 V | ±10 V | ±1 V | ±100 mV |
| Input Accuracy | ±0.03 % of reading, ±0.02 % of range, ±0.1 mV | |||
| Typical Dynamic Range @ 10 kS | -100 dB | -110 dB | -130 dB | -145 dB |
| Typical Noise floor @ 10 kS | -103 dB | -97 dB | -103 dB | -94 dB |
| Typical CMR @ 400 Hz / 1 kHz | 71 dB / 66 dB | 72 dB / 66 dB | 96 dB / 88 dB | 96 dB / 87 dB |
| Gain Drift | Typical 10 ppm/K (max. 40 ppm/K) | |||
| Offset Drift | Typical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K | |||
| Gain Linearity | < 0.02% | |||
| Input Coupling | DC, AC 1Hz | |||
| Input Impedance | Range ≥ 10 V; 1 MΩ between IN+ and IN- Range < 10 V: 20 MΩ | |||
| Overvoltage Protection | In+ to In-: 50 V continuous, 200 V peak (10 msec) | |||
| Current Mode | ||||
| Ranges | 20 mA | 2 mA | ||
| Input Accuracy | ±0.03 % of reading, ±0.02 % of range, ±2.1 μA | |||
| Internal Shunt Resistor | 50 Ω | |||
| Analog input performance | ||||
| Bandwidth (-3 dB) | 0.49*fs | |||
| Alias-free Bandwidth | DC to 0.453*fs | |||
| Alias Rejection | -100 dB (all sample rates) | |||
| Delay Through ADC | 37 / fs | |||
| Oversampling | 32 | |||
| Excitation Voltage | ||||
| Excitation Voltage | Free programmable (16-bit DAC) | |||
| Predefined Levels | Bipolar: 0, 1, 2, 5, 10 and 12 VDC Unipolar: 0, 2, 5, 10, 15, 24 VDC | |||
| Accuracy | ±0.05 % ±2 mV | |||
| Drift | ±50 ppm/K ±100 μV/K | |||
| Stability 10 % to 90 % Load | < 0.01 % | |||
| Current Limit | 42 mA (550 mW max. power) | |||
| Protection | Continuous short to ground | |||
| Excitation Current | ||||
| Excitation Current | Free programmable (16-bit DAC) | |||
| Predefined Levels | 0, 2, 4, 8, 16, 44 mA | |||
| Accuracy | ±0.1 % ±2 μA (<10 mA), ±0.5 % ±5 μA (>10 mA) | |||
| Bridge measurement | ||||
| Bridge Connection Types | full bridge strain, ½ bridge strain, ¼ bridge strain (3-wire) | |||
| Ranges | 2…1000 mV/V free programmable | |||
| Internal Bridge Completion | ½ bridge and ¼ bridge 120 and 350 Ω | |||
| Bridge Completion Accuracy | 0.05 %; TCR: 5 ppm/K (others on request) | |||
| Internal Shunt Resistor | 100 kΩ (others on request) | |||
| Shunt Resistor Accuracy | 0.05 %; TCR: 10 ppm/K (others on request) | |||
| Input Short, Sensor Offset Adjust | Software-selectable | |||
| Additional Specifications | ||||
| Input connectors | DSUB-9 | |||
| TEDS support | Standard + DSI adapters | |||
| Power supply | 9 - 48 V DC | |||
| Power Consumption | 5.4 W, Max. 11.1 W (7.9 W 120 Ω @ 5 V load, 8.8 W 350 Ω @ 10 V load) | |||
| Weight | 340 g | |||
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |||
| Rev: 1620029200 | ||||
Specifikacije IOLITE-8xSTGS
| Analog inputs | IOLITE 8xSTGS | |||
|---|---|---|---|---|
| Input type | Full / half / quarter bridge strain (3-wire), Potentiometer | |||
| Number of channels | 8 | |||
| ADC Type | 24-bit oversampled sigma-delta with anti-aliasing filter | |||
| Sampling Rate | Simultaneous 20 kS/s per channel (software-selectable) | |||
| Analog input performance (see 1) | ||||
| Ranges | 1 V | 0.1 V | 0.02 V | |
| Gain accuracy | 0.02 % of reading | 0.02 % of reading | 0.02 % of reading | |
| Offset accuracy | 210 uV | 30 uV | 14 uV | |
| Offset Accuracy after Balance Amplifier | 21 uV | 3 uV | 1.4 uV | |
| Typical Noise floor @ 10 kS/s / 1 kS/s / 100 S/s | -107 / -114 / -122 dB | -99 / -107 / -117 dB | -87 / -96 / -108 dB | |
| Typical Dynamic Range @ 10 kS/s / 1 kS/s / 100 S/s | -132 / -139 / -145 dB | -122 / -132 / -139 dB | -112 / -120 / -130 dB | |
| Typ. Crosstalk @ 1 kHz | -120 dB | -126 dB | -114 dB | |
| Typ. CMR @ 50 Hz / 400 Hz / 1 kHz | 76 / 74 / 73 dB | 97 / 90 / 84 dB | 108 / 91 / 83 dB | |
| Gain Drift | Typical 10 ppm/K (max. 20 ppm/K) | |||
| Offset Drift | Typical 0.03 μV/K + 2.5 ppm of range/K, max 0.1 μV/K + 9 ppm of range/K | |||
| Gain Linearity | < 0.01 % | |||
| Input Coupling | DC | |||
| Input Impedance | >10 MΩ | |||
| Overvoltage Protection | In+ to In-: 6 V continuous | |||
| Bandwidth (-3 dB) | 0.433*fs (0.49*fs < 5 kS/s) | |||
| Alias-free Bandwidth | DC to 0.499*fs (DC to 0.44*fs @ < 5 kS/s) | |||
| Alias Rejection | -105 dB (all sample rates) | |||
| Delay Through ADC | 34 / fs | |||
| Oversampling | 128 | |||
| Excitation Voltage | ||||
| Excitation Voltage | Unipolar: 1 V, 2 V, 5 V (see 2) | |||
| Excitation Accuracy | ±3 % of set ±50 mV | |||
| Sense Accuracy | ±0.02 % of reading ±0.25 mV | |||
| Sense Drift | Typical 10 μV/K + 10 ppm of reading/K, max 20 μV/K + 20 ppm of reading/K | |||
| Current Limit | 42 mA | |||
| Protection | Continuous short to ground | |||
| Bridge measurement | ||||
| Bridge Connection Types | full bridge strain, ½ bridge strain, ¼ bridge strain (3-wire) | |||
| Ranges | 2 mV/V ... 1000 mV/V free programmable (software ranges) | |||
| Accuracy | Range \ Excitation | 1 V | 2 V | 5 V |
| 200 mV/V | ±0.035 % of reading ±210 μV/V | ±0.028 % of reading ±105 μV/V | ±0.025 % of reading ±42 μV/V | |
| 20 mV/V | ±0.027 % of reading ±14 μV/V | ±0.027 % of reading ±15 μV/V | ±0.024 % of reading ±6 μV/V | |
| 2 mV/V | ±0.027 % of reading ±14 μV/V | ±0.024 % of reading ±7 μV/V | ±0.022 % of reading ±2.8 μV/V | |
| Internal Bridge Completion | ¼ bridge 120 Ω and 350 Ω | |||
| Bridge Completion Accuracy | ±125 µV/V, TCR: 5 ppm/K (others on request) | |||
| Internal Shunt Resistor | 100 kΩ software selectable to SNS+ or SNS- and In+ or In- | |||
| Shunt Resistor Accuracy | 0.05 %; TCR: 10 ppm/K (others on request) | |||
| Input Short, Sensor Offset Adjust | Software-selectable | |||
| Additional Specifications | ||||
| Rack | IOLITEr-8xSTGS | |||
| Input connectors | Terminal Block Weidmueller SL 2.50-04 | DSUB-37 | ||
| TEDS support | Available | Not available | ||
| Power supply | 9 - 48 V DC | |||
| Power Consumption | Typ. 2.7 W Max. 5.1 W (120 Ω @ 5 V load) | |||
| Weight | 340 g | 330 g | ||
| Slice Dimensions | 128.4 x 118.4 x 30.14 mm | |||
| Additional Specifications | ||||
| Modular | IOLITE-8xSTGS | |||
| Input connectors | Terminal Block Weidmueller SL 2.50-04 | DSUB-37 | ||
| TEDS support | Available | Not available | ||
| Power supply | 9 - 48 V DC | |||
| Power Consumption | Typ. 2.6 W; Max. 4.7 W (120 Ω @ 5 V load) | |||
| Weight | 570 g | 560 g | ||
| Slice Dimensions | 136.75 x 115.0 x 35.0 mm | |||
| Rev: 1697547600 | ||||
| 1) Voltage ranges are describing the input for the bridge mode and are not supported as voltage mode. | ||||
| 2) Ratiometric method | ||||
Specifikacije IOLITE 8xSTGS (v2)
| Analog inputs | IOLITE STGSv2 | |||
|---|---|---|---|---|
| Input type | Full / half / quarter bridge strain (3-wire, 4-wire), Potentiometer | |||
| Number of channels | 8 | |||
| ADC Type | 24-bit oversampled sigma-delta with anti-aliasing filter | |||
| Sampling Rate | Simultaneous 20 kS/s per channel (software-selectable) | |||
| Voltage Mode | ||||
| Ranges | ±1 V | ±100 mV | ±20 mV | |
| Gain accuracy | 0.02 % of reading | 0.02 % of reading | 0.02 % of reading | |
| Offset accuracy | 210 uV | 30 uV | 14 uV | |
| Typical Noise floor @ 10 kS/s / 1 kS/s / 100 S/s | -107 / -114 / -122 dB | -99 / -107 / -117 dB | -87 / -96 / -108 dB | |
| Typical Dynamic Range @ 10 kS/s / 1 kS/s / 100 S/s | -131/ -139/ -144 dB | -123/ -133/ -141 dB | -111 / -123 / -131 dB | |
| Typ. Crosstalk @ 1 kHz | -137dB | -131dB | -121dB | |
| Typ. CMR @ 50 Hz / 400 Hz / 1 kHz | 81 / 80 / 77 dB | 100 / 92 / 84 dB | 110 / 91 / 84 dB | |
| Gain Drift | Typical 10 ppm/K (max. 20 ppm/K) | |||
| Offset Drift | Typical 0.03 μV/K + 2.5 ppm of range/K, max 0.1 μV/K + 9 ppm of range/K | |||
| Gain Linearity | < 0.01 % | |||
| Input Coupling | DC | |||
| Overvoltage Protection | In+ to In-: 6 V continuous | |||
| Analog input performance | ||||
| Bandwidth (-3 dB) | 0.433*fs (0.49*fs < 5 kS/s) | |||
| Alias-free Bandwidth | DC to 0.499*fs (DC to 0.44*fs @ < 5 kS/s) | |||
| Alias Rejection | -105 dB (all sample rates) | |||
| Delay Through ADC | 34 / fs | |||
| Oversampling | 128 | |||
| Excitation Voltage | ||||
| Excitation Voltage | Unipolar: 1 V, 2 V, 5 V (see 1) | |||
| Excitation Accuracy | ±3 % of set ±50 mV | |||
| Sense Accuracy | ±0.02 % of reading ±0.25 mV | |||
| Sense Drift | Typical 10 μV/K + 10 ppm of reading/K, max 20 μV/K + 20 ppm of reading/K | |||
| Current Limit | 42 mA | |||
| Protection | Continuous short to ground | |||
| Bridge measurement | ||||
| Bridge Connection Types | full bridge strain, ½ bridge strain, ¼ bridge strain (4-wire), ¼ bridge strain (3-wire) | |||
| Ranges | 2 mV/V ... 1000 mV/V free programmable (software ranges) | |||
| Accuracy | Range \ Excitation | 1 V | 2 V | 5 V |
| 200 mV/V | ±0.035 % of reading ±210 μV/V | ±0.028 % of reading ±105 μV/V | ±0.025 % of reading ±42 μV/V | |
| 20 mV/V | ±0.027 % of reading ±14 μV/V | ±0.027 % of reading ±15 μV/V | ±0.024 % of reading ±6 μV/V | |
| 2 mV/V | ±0.027 % of reading ±14 μV/V | ±0.024 % of reading ±7 μV/V | ±0.022 % of reading ±2.8 μV/V | |
| Internal Bridge Completion | ¼ bridge 120 Ω and 350 Ω | |||
| Bridge Completion Accuracy | ±125 µV/V, TCR: 5 ppm/K (others on request) | |||
| Internal Shunt Resistor | 100 kΩ software selectable to SNS+ or SNS- and In+ or In- | |||
| Shunt Resistor Accuracy | 0.05 %; TCR: 10 ppm/K (others on request) | |||
| Input Short, Sensor Offset Adjust | Software-selectable | |||
| Internal switch configurations | Bridge type | Selectable connections | Internal SW on: | Additonal compensation |
| Full | 6 or 4 Wires | 4 wires SNS + and EXC + & SNS- and EXC - | ||
| Half | 5 or 3 Wires | 3 wires SNS + and EXC + & SNS- and EXC - | ||
| QB 3W | SNS + and EXC + & SNS- and EXC - | SNS + and EXC + & SNS- and EXC - | Lead wire compensation available | |
| QB 4W | SNS + and EXC + | SNS + and EXC + | ||
| Sensor current measurement | ||||
| Bridge configuration | Full / Half | QB | ||
| Current measuring line | EXC+ line | R Line | ||
| Current limit | 50 mAdc | |||
| Resolution | 0.1 mAdc | |||
| Additional math caculus | Resistance, Power | |||
| Sample rate | 1 Hz | |||
| Additional Specifications | ||||
| Rack | IOLITEr-8xSTGSv2 | |||
| Input connectors | Terminal block, DSUB-37 | |||
| TEDS support | Available for Terminal block | |||
| Power supply | 9 - 48 V DC | |||
| Power Consumption | Typ. 3.1 W Max. 6 W (120 Ω @ 5 V load) | |||
| Weight | 340 g | |||
| Slice Dimensions | 128.4 x 118.4 x 30.14 mm | |||
| Additional Specifications | ||||
| Modular | IOLITE-8xSTGSv2 | |||
| Input connectors | Terminal block, DSUB-37 | |||
| TEDS support | Available for Terminal block | |||
| Power supply | 9 - 48 V DC | |||
| Power Consumption | Typ. 3.1 W Max. 6 W (120 Ω @ 5 V load) | |||
| Weight | 570 g | |||
| Slice Dimensions | 136.75 x 115.0 x 35.0 mm | |||
| Rev: 1671786000 | ||||
| 1) Ratiometric method | ||||
Specifikacije IOLITEi-8xLV
| Analog input | ||
|---|---|---|
| Input type | Isolated voltage | |
| Number of channels | 8 | |
| ADC Type | 24-bit oversampled SAR | |
| Sampling Rates | Simultaneous 20k, 10k, 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
| Voltage Mode | ||
| Ranges | ±100 V | ±10 V |
| Accuracy | ±0.03 % of reading ±50 mV | ±0.03 % of reading ±5 mV |
| Typ. SNR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 91 dB | 90 dB |
| Typical noise floor @ 10 kS | -105 dB | -98 dB |
| Typ. THD (10 kS/s, -1 dBFS sine wave @ 1 kHz) | -91 dB | -91 dB |
| Typ. SFDR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 93 dB | 92 dB |
| Typical IMR @ 400 Hz / 1 kHz | 98 dB / 90 dB | 83 dB / 75 dB |
| Gain Drift | Typical 10 ppm/K, Max. 40 ppm/K | |
| Offset Drift | Typical 2 ppm of range/K, Max. 10 ppm of range/K | |
| Gain Linearity | < 0.02 % | |
| Input Coupling | DC | |
| Input Impedance | 1 MΩ | |
| Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | |
| Analog input performance | ||
| Bandwidth (-3 dB) | 0.49*fs | |
| Alias-free Bandwidth | DC to 0.453*fs | |
| Alias Rejection | -100 dB (all sample rates) | |
| Delay Through ADC | 37 / fs | |
| Oversampling | 32 | |
| Additional Specifications | ||
| Rack | IOLITEir-8xLV | |
| Input Connectors | BNC | Terminal block 2 pole |
| Power supply | 9 - 48 V DC | |
| Isolation Voltage | 450 Vpeak channel to ground & channel to channel | |
| Power Consumption | Typ. 2.4 W, Max. 3.5 W | |
| Weight | 310 g | 270 g |
| Slice Dimensions | 128.4 x 127.6 x 30.1 mm | |
| Additional Specifications | ||
| Modular | IOLITEi-8xLV | |
| Input Connectors | BNC | Terminal block 2 pole |
| Power supply | 9 - 48 V DC | |
| Isolation Voltage | 450 Vpeak channel to ground & channel to channel | |
| Power Consumption | Typ. 2.7 W, Max. 3.3 W | |
| Weight | 545 g | 505 g |
| Slice Dimensions | 137 x 115.0 x 35.0 mm | |
| Rev: 1681991028 | ||
Specifikacije IOLITE-8xLVe
| Inputs | |||
|---|---|---|---|
| Input types | Voltage, Potentiometer, Current (Ext. shunt) | ||
| ADC Type | 24-bit delta-sigma with anti-aliasing filter (-3 dB @ 160 kHz) Butterworth 2nd order | ||
| Sampling Rate | Simultaneous 20 kS/s | ||
| Voltage Mode | |||
| Ranges | ±100 V | ±5 V | |
| Accuracy | ±0.03 % of reading ±0.02 % of range | ||
| Typ. Noise floor @ 10 kS/sec | -114 dB | -99 dB | |
| Typ. THD (10 kS/s, -1 dBFS sine wave @ 1 kHz) | - | -103 dB | |
| Typ. SFDR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | - | 114 dB | |
| Typ. CMR @ 50 Hz / 400 Hz / 1 kHz | 100 dB / 85 dB / 85 dB | 96 dB / 88 dB / 88 dB | |
| Gain Linearity | <0.02 % | <0.01 % | |
| Gain Drift | Typical 5 ppm/K, Max. 20 ppm/K | ||
| Offset Drift | Typical 5 ppm of range/K, Max. 10 ppm of range/K | ||
| Channel Crosstalk | -130 dB | ||
| Input Coupling | DC | ||
| Input Impedance | 800 kΩ (between In+ and In-) | ||
| Max. common mode voltage | ±200 V | ||
| Input Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | ||
| Isolation | 250 V functional isolation (channel to power supply ground) | ||
| Analog input performance | |||
| Bandwidth (-3 dB) | 0.433*fs | ||
| Alias-free Bandwidth | DC to 0.499*fs (DC to 0.44*fs @ < 5 kS/s) | ||
| Alias Rejection | -105 dB (all sample rates) | ||
| Delay Through ADC | 34 / fs | ||
| Oversampling | 128 | ||
| Excitation Voltage | |||
| Excitation voltage | Unipolar 2 ... 24V DC | ||
| Current limit | 2.8 W max. power per channel, 22.4 W per slice | ||
| Excitation accuracy | 0.05 % ± 2 mV | ||
| Drift | ±20 ppm/K ± 60 μV/K | ||
| Stability 10 % to 90 % load | < 0.06 % @ 5 V exc (< 0.01 % @ 24 V exc) | ||
| Noise @ 10 V / 350 Ω | <150 μVrms @ 10 kS | ||
| Line regulation over 10 Ω of change | < 0.04 % @ 120 Ω load | ||
| Protection | Continuous short to ground | ||
| Additional Specifications | |||
| Rack | IOLITEr-8xLVe | ||
| Input connector | Terminal block | DSUB-37 | |
| TEDS support | Yes | ||
| Power supply | 9 - 48 V DC | ||
| Power consumption | Analog input only: Typ. 3.3 W (Max. 4.2 W) With Excitation: 6.9 W 120 Ω load @ 5 V, 38 W 120 Ω load @ 20 V | ||
| Weight | 310 g | 300 g | |
| Slice Dimensions | 128.4 x 118.4 x 30.14 mm | ||
| Additional Specifications | |||
| Modular | IOLITE-8xLVe | ||
| Input connector | Terminal block | DSUB-37 | |
| TEDS support | Yes | ||
| Power supply | 9 - 48 V DC | ||
| Power consumption | Analog input only: Typ. 3.3 W (Max. 4.2 W) With Excitation: 6.9 W 120 Ω load @ 5 V, 38 W 120 Ω load @ 20 V | ||
| Weight | 550 g | 540 g | |
| Slice Dimensions | 136.75 x 115.0 x 35.0 mm | ||
| Rev.: 1721714400 | |||
Specifikacije IOLITE-16xLV
| Analog input | ||
|---|---|---|
| Input type | Voltage | |
| Number of channels | 16 | |
| ADC Type | 24-bit oversampled sigma-delta | |
| Sampling Rates IOLITE | Simultaneous 20k, 10k, 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
| Sampling Rates OBSIDIAN | Simultaneous 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
| Voltage Mode | ||
| Ranges | ±200 V | ±10 V |
| Accuracy | ±0.03 % of reading ±40 mV | ±0.03 % of reading ±2 mV |
| Typ. SNR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 103 dB | 101 dB |
| Typical noise floor @ 10 kS | -115 dB | -105 dB |
| Typ. THD (10 kS/s, -1 dBFS sine wave @ 1 kHz) | -93 dB | -108 dB |
| Typ. SFDR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 95 dB | 111 dB |
| Typical CMR @ 400 Hz / 1 kHz | 88 dB / 87 dB | 82 dB / 80 dB |
| Crosstalk @ 1 kHz | -118 dB | -120 dB |
| Gain Drift | Typical 10 ppm/K, Max. 40 ppm/K | |
| Offset Drift | Typical 2 ppm of range/K, Max. 5 ppm of range/K | |
| Gain Linearity | < 0.01 % | |
| Input Coupling | DC | |
| Input Impedance | 800 kΩ | |
| Max. common mode voltage | ±200 V | |
| Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | |
| Analog input performance | ||
| Bandwidth (-3 dB) | 0.433*fs | |
| Alias-free Bandwidth | DC to 0.45*fs (DC to 0.499*fs @ 20 kS/s) | |
| Alias Rejection | -105 dB (all sample rates) | |
| Delay Through ADC | 34 / fs | |
| Oversampling | 128 | |
| Additional Specifications | ||
| Rack | IOLITEr-16xLV | |
| Input Connectors | Terminal block 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 | |
| Power supply | 9 - 48 V DC | |
| Isolation Voltage | 250 V functional isolation (channel to power supply ground) | |
| Power Consumption | Typ. 3.4 W (Max. 3.9 W) | |
| Weight | 230 g | |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |
| Modular | IOLITE-16xLV | |
| Input Connectors | Terminal block 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 | |
| Power supply | 9 - 48 V DC | |
| Isolation Voltage | 250 V functional isolation (channel to power supply ground) | |
| Power Consumption | Typ. 3.6 W (Max. 4.5 W) | |
| Weight | 530g | |
| Slice Dimensions | 136.75 x 115.0 x 35.0 mm | |
| Rev: 1685344484 | ||
Specifikacije IOLITEi-4xHV
| Analog inputs | IOLITEi 4xHV | |||
|---|---|---|---|---|
| Input type | Voltage | |||
| Number of channels | 4 | |||
| ADC Type | 24-bit delta-sigma with anti-aliasing filter | |||
| Sampling Rate IOLITE | Simultaneous 40 kS/s per channel (software-selectable) | |||
| Sampling Rate OBSIDIAN | Simultaneous 20 kS/sec per channel (software-selectable) | |||
| Anti-aliasing filter | -3 dB @ 150 kHz (Butterworth 3rd order) | |||
| Voltage mode | ||||
| Ranges | ±2000 V | ±1000 V | ±400 V | ±200 V |
| Input Accuracy | ±0.03 % of reading ±0.02 % of range | |||
| Typ. Dynamic Range @ 10 kS | -137 dB | -137 dB | -137 dB | - 132 dB |
| Typ. Noise floor @ 10 kS | -113 dB | -112 dB | -109 dB | -104 dB |
| Typ. THD (40 kS/s, -6 dBFS sine wave @ 1 kHz) | N/A | N/A | N/A | -103 dB |
| Typ. CMR @ 20 kS/s | 80 dB @ 50 Hz, 64 dB @ 400 Hz | |||
| Gain Drift | Typical 10 ppm/K, max. 25 ppm/K | |||
| Offset Drift | Typical 100 μV/K + 2 ppm of range/K, max 200 μV/K + 4 ppm of range/K | |||
| Gain Linearity | < 0.02% (2000 V range), < 0.01% (other ranges) | |||
| Input Coupling | DC | |||
| Input Impedance | 10 MΩ | |||
| Overvoltage protection | CAT II 1000 V | |||
| Analog input performance | ||||
| Bandwidth (-3 dB) | 0.433*fs (0.49*fs < 5 kS/s) | |||
| Alias-free Bandwidth | DC to 0.499*fs (DC to 0.45*fs @ < 5 kS/s) | |||
| Alias Rejection | -105 dB (all sample rates) | |||
| Delay Through ADC | 34 / fs | |||
| Oversampling | 128 | |||
| Additional Specifications | ||||
| Rack | IOLITEir-4xHV | |||
| Input connector | 4mm safety banana jack | |||
| Power supply | 9 - 48 V DC | |||
| Power Consumption | Typ. 2.6 W (max. 3 W) | |||
| Weight | 310 g | |||
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |||
| Additional Specifications | ||||
| Modular | IOLITEi-4xHV | |||
| Input connector | 4mm safety banana jack | |||
| Power supply | 9 - 48 V DC | |||
| Power Consumption | Typ. 2.6 W (max. 3 W) | |||
| Weight | 575 g | |||
| Slice Dimensions | 136.75 x 127.2 x 35.0 mm | |||
| Rev: 1701151200 | ||||
Specifikacije IOLITEi-8xLA
| Analog input | ||
|---|---|---|
| Input type | Isolated current | |
| Number of channels | 8 | |
| ADC Type | 24-bit oversampled SAR | |
| Sampling Rates | Simultaneous 20k, 10k, 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
| Current Mode | ||
| Ranges | ±20 mA | ±2 mA |
| Accuracy | ±0.05 % of reading ±10 µA | ±0.05 % of reading ±2 µA |
| Typical noise floor @ 10 kS/sec | -100 dB | -100 dB |
| Crosstalk (20 kS/sec, -1 dBFS @ 1 kHz) | -121 dB | -128 dB |
| Gain Drift | Typical 10 ppm/K, Max. 40 ppm/K | |
| Offset Drift | Typical 5 ppm of range/K, Max. 15 ppm of range/K | |
| Gain Linearity | < 0.05 % | |
| Input Coupling | DC | |
| Input Impedance | 50 Ω | |
| Overvoltage Protection | In+ to In-: 30 V continuous | |
| Overcurrent Protection | In+ to In-: 70 mA continuous | |
| Analog input performance | ||
| Bandwidth (-3 dB) | 0.49 fs | |
| Alias-free Bandwidth | DC to 0.453 fs | |
| Alias Rejection | -100 dB (all sample rates) | |
| Delay Through ADC | 37 / fs | |
| Oversampling | 32 | |
| Additional Specifications | ||
| Power supply | 9 - 48 V DC | |
| Isolation Voltage | 450 Vpeak channel to ground & channel to channel | |
| Power Consumption | Typ. 2.8 W, Max. 3.5 W | |
| Input Connectors | BNC | Terminal block 2 pole |
| Weight | 310 g | 270 g |
| Slice Dimensions | 128.4 x 127.6 x 30.1 mm | 128.4 x 115.4 x 30.1 mm |
| Rev: 1632117100 | ||
Specifikacije IOLITEi-8xTH
| Inputs | ||
|---|---|---|
| Input type | Isolated universal thermocouple and voltage | |
| Number of channels | 8 | |
| ADC Type | 24-bit delta-sigma | |
| Sampling Rate | Simultaneous 100 S/s | |
| Voltage Mode | ||
| Ranges | ±1 V | ±100 mV |
| Input Accuracy | ±0.02 % of reading ±100 μV | ±0.02 % of reading ±10 μV |
| Typical Noise floor @ 10/100 S/sec | -114 dB / -105 dB | -109 dB / -100 dB |
| Gain Drift | Typical 4 ppm/K (max. 10 ppm/K) | Typical 4 ppm/K (max. 10 ppm/K) |
| Offset Drift | Typical 0.05 μV/K (max. 0.2 μV/K) | Typical 0.05 μV/K (max. 0.2 μV/K) |
| Gain Linearity | <0.01% | <0.01% |
| Input Coupling | DC | DC |
| Input Impedance | 100 MΩ | 100 MΩ |
| Temperature Mode | ||
| Thermocouple Types | K, J, T, R, S, N, E, C, B | |
| Accuracy | ±0.02 % of reading ±0.5 °C ±10 μV | |
| Sampling rates | 10, 20, 40, 80, 100 S/sec | |
| Typical Noise | 0.007 °C RMS@Type K @ 10 S/sec 0.02 °C RMS@Type K @ 100 S/sec | |
| Additional Specifications | ||
| Input connectors | Mini Thermocouple connector (copper) | |
| Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
| Power supply | 9 - 48 V DC | |
| Power consumption | 3.2 W | |
| Weight | 230 g | |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |
| Rev: 1578677400 | ||
Specifikacije IOLITEi-8xTH-HS
| Inputs | ||
|---|---|---|
| Input type | Isolated universal thermocouple and voltage | |
| Number of channels | 8 | |
| ADC Type | 24-bit delta-sigma | |
| Sampling Rate IOLITE | Simultaneous 10, 20, 40, 50, 80, 100, 200, 500, 1k, 2k, 5k, 10k S/s (optional) | |
| Sampling Rate OBSIDIAN | 100 S/s | |
| Voltage Mode | ||
| Ranges | ±1 V | ±100 mV |
| Input Accuracy | ±0.02 % of reading ±50 μV | ±0.02 % of reading ±7 μV |
| Typical Noise Floor @ 10 / 100 / 1k / 10k S/s | -130 dB / -120 dB / -110 dB / -104 dB | -120 dB / -110 dB / -100 dB / -90 dB |
| Offset Drift | Typ. 0.05 μV/K (Max. 0.2 μV/K) | Typ. 0.01 μV/K (Max. 0.1 μV/K) |
| Gain Drift | Typ. 2 ppm/K (Max. 10 ppm/K) | |
| Gain Linearity | < 0.007% | |
| Input Coupling | DC | |
| Input Impedance | 100 MΩ | |
| Temperature Mode | ||
| Thermocouple Types | K, J, T, R, S, N , E, C, B | |
| Accuracy | ±0.02 % of reading ±0.5 °C ±7 μV | |
| Typical Noise | 0.002 °C RMS @ Type K @ 10 S/s 0.006 °C RMS @ Type K @ 100 S/s 0.02 °C RMS @ Type K @ 1 kS/s 0.05 °C RMS @ Type K @ 10 kS/s | |
| Additional Specifications | ||
| Rack | IOLITEir-8xTH-HS | |
| Input connectors | Mini Thermocouple connector (copper) | |
| Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
| Power supply | 9 - 48 V DC | |
| Power consumption | Typ. 2.6 W (Max. 3.4 W) | |
| Weight | 290 g | |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |
| Additional Specifications | ||
| Modular | IOLITEi-8xTH-HS | |
| Input connectors | Mini Thermocouple connector (copper) | |
| Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
| Power supply | 9 - 48 V DC | |
| Power consumption | Typ. 2.6 W (Max. 3.8 W) | |
| Weight | 555 g | |
| Slice Dimensions | 137 x 115.0 x 35.0 mm | |
| Rev: 1701151200 | ||
Specifikacije IOLITEi-8xRTD
| Analog inputs | ||
|---|---|---|
| Input types | Voltage, Resistance or Universal PTxxx inputs | |
| Number of channels | 8 | |
| ADC Type | 24-bit delta-sigma | |
| Sampling Rate | Simultaneous 100 S/s | |
| Voltage Mode | ||
| Ranges | ±1 V | ±100 mV |
| Input Accuracy | ±0.02 % of reading ±0.01 % of range ±10 μV | |
| Typical Noise floor @ 10/100 s/sec | -117 dB / -107 dB | -111 dB / -101 dB |
| Gain Drift | Typical 4 ppm/K (max. 10 ppm/K) | |
| Offset Drift | Typical 0.05 μV/K (max. 0.2 μV/K) | |
| Gain Linearity | < 0.01 % | |
| Input Coupling | DC | |
| Input Impedance | 1 MΩ | |
| Temperature Mode | ||
| Types | PT100, PT200, PT500, PT1000, PT2000 | |
| Measurement range | -200 °C to +850 °C | |
| Accuracy | ±0.05 % of reading ±0.2 °C | |
| Temperature Drift | typ. ±5 ppm/K (max. ±12 ppm/K ±0.003 °C/K) | |
| Input Connection | 3-wire or 4-wire | |
| Resistance Mode | ||
| Ranges | 0…10 kΩ | 0…1 kΩ |
| Accuracy | ±0.02 % of reading ±0.01 % of range | |
| Input Connection | 3-wire or 4-wire | |
| Additional Specifications | ||
| Rack | IOLITEir-8xRTD | |
| Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
| Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
| Power supply | 9 - 48 V DC | |
| Power consumption | Typ. 2.1 W, Max. 2.7 W | |
| Weight | 325 g | 225 g |
| Dimensions | 128.4 x 115.4 x 30.1 mm | |
| Modular | IOLITEi-8xRTD | |
| Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
| Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
| Power supply | 9 - 48 V DC | |
| Power consumption | Typ. 3.5 W (Max. 4.7 W) | |
| Weight | 585 g | 485 g |
| Dimensions | 137 x 115.0 x 35.0 mm | |
| Rev: 1727427136 | ||
Specifikacije IOLITEi-8xRTD-HS
| Analog inputs | ||
|---|---|---|
| Input types | Voltage, Resistance or Universal PTxxx inputs | |
| Number of channels | 8 | |
| ADC Type | 24-bit delta-sigma | |
| Sampling Rate IOLITE | Simultaneous 10, 20, 40, 50, 80, 100, 200, 500, 1k, 2k, 5k, 10k S/s (optional) | |
| Sampling Rate OBSIDIAN | 100 S/s | |
| Voltage mode | ||
| Ranges | ±1 V | ±100 mV |
| Input Accuracy | ±0.02 % of reading ±0.01 % of range | |
| Typical Noise Floor @ 10 / 100 / 1k / 10k S/s | -130 dB / -120 dB / -110 dB / -104 dB | -120 dB / -108 dB / -98 dB / -90 dB |
| Offset Drift | Typ. 0.05 μV/K (Max. 0.2 μV/K) | Typ. 0.01 μV/K (Max. 0.1 μV/K) |
| Gain Drift | Typ. 2 ppm/K (Max. 10 ppm/K) | |
| Gain Linearity | < 0.007 % | |
| Input Coupling | DC | |
| Input Impedance | 10 MΩ | |
| Temperature mode | ||
| Ranges | PT500, PT1000, PT2000 | PT100, PT200 |
| Excitation current | 150 uA | 400 uA |
| Measurement range | -200 °C to +850 °C | |
| Accuracy | ±0.02 % of reading ±0.2 °C | |
| Temperature Drift | Typ. ±2 ppm/K (Max. ±10 ppm/K) | |
| Input Connection | 3-wire or 4-wire | |
| Resistance mode | ||
| Ranges | 0…10 kΩ | 0…1 kΩ |
| Excitation current | 150 uA | 400 uA |
| Accuracy | ±0.02 % of reading ±0.008 % of range | |
| Input Connection | 3-wire or 4-wire | |
| Additional Specifications | ||
| Rack | IOLITEir-8xRTD-HS | |
| Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
| Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
| Power supply | 9 - 48 V DC | |
| Power consumption | Typ. 3.5 W (Max. 4.3 W) | |
| Weight | 325 g | 225 g |
| Dimensions | 128.4 x 115.4 x 30.1 mm | |
| Additional Specifications | ||
| Modular | IOLITEi-8xRTD-HS | |
| Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
| Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
| Power supply | 9 - 48 V DC | |
| Power consumption | Typ. 3.5 W (Max. 4.7 W) | |
| Weight | 585 g | 485 g |
| Dimensions | 137 x 115.0 x 35.0 mm | |
| Rev: 1701151200 | ||
Specifikacije IOLITEi-8xRTDp
| Analog inputs | |||
|---|---|---|---|
| Input types | Voltage, resistor or universal PTxxx inputs | ||
| Number of channels | 8 | ||
| ADC Type | 24-bit delta-sigma | ||
| Sampling Rate | Simultaneous 100 S/s | ||
| Voltage Mode | |||
| Ranges | ±1 V | ±100 mV | |
| Input Accuracy | ±0.02 % of reading ±0.01 % of range ±10 μV | ±0.02 % of reading ±0.01 % of range ±10 μV | |
| Typical Noise floor @ 10/100 s/sec | -117 dB / -107 dB | -111 dB / -101 dB | |
| Gain Drift | Typical 4 ppm/K (max. 10 ppm/K) | Typical 4 ppm/K (max. 10 ppm/K) | |
| Offset Drift | Typical 0.05 μV/K (max. 0.2 μV/K) | Typical 0.05 μV/K (max. 0.2 μV/K) | |
| Gain Linearity | < 0.01 % | < 0.01 % | |
| Input Coupling | DC | DC | |
| Input Impedance | 1 MΩ | 1 MΩ | |
| Temperature Mode | |||
| Ranges | PT200, PT500, PT1000, PT2000 | PT100 | |
| Excitation current | 0.4 mA or ±0.4 mA | 2 mA or ±2 mA | |
| Excitation type | DC or square wave from 5 Hz to 50 Hz | DC or square wave from 5 Hz to 50 Hz | |
| Measurement range | -200 °C to +850 °C | -200 °C to +850 °C | |
| Accuracy | ±0.05 % of reading ±0.2 °C | ±0.05 % of reading ±0.2 °C | |
| Temperature Drift | typ. ±5 ppm/K (max. ±12 ppm/K ±0.003 °C/K) | typ. ±5 ppm/K (max. ±12 ppm/K ±0.003 °C/K) | |
| Input Connection | 2-wire or 4-wire | 2-wire or 4-wire | |
| Resolution | < 0.001 °C | < 0.001 °C | |
| Resistance Mode | |||
| Ranges | 0…10 kΩ | 0…1 kΩ | 0…100 Ω |
| Excitation current | 0.4 mA or ±0.4 mA | 2 mA or ±2 mA | 2 mA or ±2 mA |
| Excitation type (See 1) | DC or square wave from 5 Hz to 50 Hz | DC or square wave from 5 Hz to 50 Hz | DC or square wave from 5 Hz to 50 Hz |
| Accuracy | ±0.02 % of reading ±0.01 % of range | ±0.02 % of reading ±0.01 % of range | ±0.02 % of reading ±0.01 % of range |
| Input Connection | 2-wire or 4-wire | 2-wire or 4-wire | 2-wire or 4-wire |
| Additional Specifications | |||
| Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | ||
| Isolation voltage | 210 Vdc or 150 Vacrms channel to ground & channel to channel | ||
| Power supply | 9 - 48 V DC | ||
| Power consumption | Typ. 2.1 W, Max. 2.7 W | ||
| Weight | 330 g | ||
| Dimensions | 128.4 x 115.4 x 30.1 mm | ||
| Rev: 1667583000 | |||
| 1) The frequency of the square wave is related to the SR/2. | |||
Specifikacije IOLITE-32xDI
| Digital Input | |
|---|---|
| Isolated Input Channels | 32 |
| Input low level | -1 V ~ +1 V |
| Input high level | -48 V ~ -3 V, +3 V ~ +48 V |
| Input high current @ 5 V | UIN < 1 mA |
| Input high current @ 30 V | UIN < 1 mA |
| Sampling rate | Simultaneous 20 kS/s |
| Overvoltage protection | 100 V continuous (250 Vpeak) |
| Isolation voltage peak | 1000 V Isolated common GND, groups of 8 ch |
| Additional Specifications | |
| Input connectors | Terminal block, 2 pole, 4 x 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 |
| Power supply | 9 - 48 V DC |
| Power out | max. 2 A (unprotected) |
| Power consumption | Typ. 1.2 W, Max. 1.9 W |
| Weight | 220 g |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
| Rev: 1668186000 | |
Specifikacije IOLITE-4xCNT
| Counter | |
|---|---|
| Number of channels | 4 |
| Timebase | 100 MHz |
| Time base accuracy | Typical: 5 ppm, Max: 20 ppm |
| Max. bandwidth | 10 MHz |
| Input Filter | 500 ns, 1 μs, 2 μs, 4 μs, 5 μs and 7.5 μs |
| Input Level Compatibility | TTL (Low: <0.8 V, High >2 V) |
| Input impedance | 100 kΩ pull-up to +3.3 V |
| Input Protection | ±25 V continuous |
| Counter modes | counting, waveform timing, encoder, gear-tooth sensor |
| Isolated Sensor Power Supply | |
| Output Voltage +5 V | 5.1 V +/- 10 % 100 mA max. (400 mA to supply 4 channels) |
| Output Voltage +12 V | 12.1 V +/-5 % 50 mA max. (100 mA to supply 4 channels) |
| Isolation | Ch to GND isolation |
| Additional Specifications | |
| Input connector | 7-pin LEMO 1B series EEG.1B.307.CLNY |
| Power Consumption @ 24 V | Typ. 1.9 W |
| Power supply | 9 - 48 V DC |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
Specifikacije IOLITE-32xDO
| Digital Output¹ | |
|---|---|
| Isolated Output Channels | 32 |
| Compatibility | Solid state relay |
| Maximum sink current | 0.5 A |
| Maximum switching voltage | 50 V |
| Maximum update rate | depending on EtherCAT master |
| Isolation voltage peak | 1000 V Isolated common GND, groups of 8 ch |
| Additional Specifications | |
| Input connectors | Terminal block, 2 pole, 4 x 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 |
| Power supply | 9 - 48 V DC |
| Power out | max. 2 A (unprotected) |
| Power consumption | Typ. 1.2 W, Max. 2.0 W |
| Weight | 230 g |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
| ¹ Not supported on the OBSIDIAN | |
| Rev: 1668186000 | |
Specifikacije IOLITE-8xDI-4xDO
| Digital Input | |
|---|---|
| Isolated Input Channels | 8 |
| Input low level | -1 V ~ +1 V |
| Input high level | -48 V ~ -3 V, +3 V ~ +48 V |
| Input high current @ 5 V | UIN < 1 mA |
| Input high current @ 30 V | UIN < 1 mA |
| Sampling rate | Simultaneous 40 kS/s |
| Overvoltage protection | 100 V continuous (250 Vpeak) |
| Isolation voltage peak | 1000 V Isolated common GND |
| Digital Output¹ | |
| Isolated Output Channels | 4 |
| Compatibility | Solid state relay |
| Maximum sink current | 0.5 A |
| Maximum switching voltage | 50 V |
| Maximum update rate | depending on EtherCAT master |
| Isolation voltage peak | 1000 V Isolated common GND |
| Additional Specifications | |
| Input connectors | Terminal block (3 x 2 pole, 2 x 12 pole, 1 x 8 pole) OMNIMATE SL 2.50 / BLF 2.50/180 |
| Power supply | 9 - 48 V DC |
| Power out | max. 2 A (unprotected) |
| Power consumption | 1.8 |
| Weight | 184 g |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
| ¹ Not supported on the OBSIDIAN | |
| Rev: 1668186000 | |
Tehnične specifikacije IOLITE-16xAO
| Analog Output | |
|---|---|
| Output types | Voltage |
| Number of channels | 16 |
| Output connector | Terminal block |
| DAC Resolution | 16-bit |
| Update Rate | 20000 S/s (see 1) |
| Update Rate | |
| Full Scale Output Range | ±10 V (see 2) |
| Accuracy (typ.) | 0.05 % ±1.5 mV (0 to 20 mA load) |
| Temperature gain drift (typ.) | ±10 ppm/K |
| Temperature offset drift (typ.) | ±5 uV/K |
| Output impedance | < 1 Ω DC |
| Minimal load resistance | 500 Ω load @ 10 V output |
| Settling time (0.05 % of set value) | 140 µs |
| Max slew rate | 0.20 V/µs |
| Max capacitive load (2 % overshoot) | 10 nF |
| Output protection | Short circuit protected |
| Current limit | 20 mA per channel (160 mA per module) |
| Isolation | Channel to ground |
| Additional Specifications | |
| Output connectors | Terminal block, 2 pole, 4 x 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 |
| Power supply | 9 - 48 V DC |
| Power out | max. 2 A |
| Power consumption | Typ. 4.5 W, Max. 8 W |
| Weight | 210 g |
| Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
| Rev: 1603360800 | |
| 1) Only asynchronous mode is supported in Dewesoft, function generator is not supported | |
| 2) Only DC output voltage, function generator not supported | |
Tehnične specifikacije IOLITEi-4xCAN-FD
| CAN ports specification | |
|---|---|
| Number of ports | 4 |
| Interface type | CAN-FD, CAN 2.0B |
| CAN 2.0B data rate | Up to 1 Mbit/s (see 1) |
| CAN-FD data rate | Up to 5 Mbit/s (see 1) |
| Special protocols | J1939, XCP, OBDII |
| Galvanic isolation | Isolated |
| Bus pin fault protection | ±36 V |
| Power specification | |
| Power supply | 9 - 48 V DC |
| Maximum sensor power consumption | 5 V / max. 250 mA (1.25 W) 12 V / max. 90 mA (1.1 W) |
| Maximum power consumption | max. 2 W (no load) |
| Sensor supply isolation | Channel to ground |
| Additional Specifications | |
| Rack | IOLITEir-4xCAN-FD |
| Input connector | DSUB9 |
| Power supply | 9 - 48 V DC |
| Weight | 310 g |
| Slice Dimensions | 128.4 x 118.4 x 30.14 mm |
| Additional Specifications | |
| Modular | IOLITEi-4xCAN-FD |
| Input connector | DSUB9 |
| Power supply | 9 - 48 V DC |
| Weight | 550 g |
| Slice Dimensions | 136.75 x 115.0 x 35.0 mm |
| 1) For more information please see the manual. | |
