SIRIUS® R8技术规格

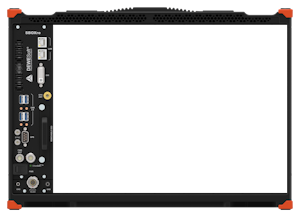

SIRIUS® R8系统规格

Computer
ProcessorIntel® Core™ i5 (I5-1145G7E) 4x 1.5 GHz base, 4.1 GHz max 8 threads
Memory8 GB (optional up to 32 GB)
Storage500 GB removable SATA SSD Option: up to 4 TB removable SATA SSD Option: up to 1 TB NVMe internal SSD
Interfaces and options
USBFront: 4x USB 3.0
EthernetStandard: 2x 2.5GLAN (RJ45) Optional: 1x 2.5GLAN (RJ45), 1x WLAN (RP-SMA Female Jack)
EtherCAT®1x EtherCAT® 100 Mbps Full Duplex, 8-pin LEMO female, 8 A (shared with power out connector)
Power outSwitched input supply on 2-pin LEMO female, 8 A (shared with EtherCAT® connector)
Synchronization2x SIRIUS® SYNC
Video1x DVI-I (VGA and HDMI compatible)
GPS (option)10 Hz or 100 Hz or 100 Hz + RTK
GPS display (option)External on DSUB-9 female connector + remote power on
Analog out optionup to 64 channels
Power
Power supply12 - 36 V DC
Power consumptionTyp. 30 W (Max. 55 W) (excl. SIRIUS® slices)
Environmental
Operating Temperature-10 to 50 °C
Storage Temperature-40 to 85 °C
Humidity5 to 95 % RH non-condensing at 50 °C
IP ratingIP20
Shock & VibrationVibration sweep sinus (EN 60068-2-6:2008) Vibration random (EN 60721-3-2: 1997 - Class 2M2) Shock (EN 60068-2-27:2009) MIL-STD-810D
Physical
Dimensions446 x 317 x 148 mm
Weight7.4 kg (excl. SIRIUS® slices)
Rev: 1675778400

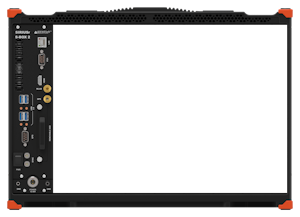

SIRIUS® R8R系统规格

Computer
ProcessorIntel® Core™ i5 (I5-1145G7E) 4x 1.5 GHz base, 4.1 GHz max 8 threads
Memory8 GB (optional up to 32 GB)
Storage500 GB removable SATA SSD Option: up to 4 TB removable SATA SSD Option: up to 1 TB NVMe internal SSD
Interfaces and options
USBFront: 4x USB 3.0
EthernetStandard: 2x 2.5GLAN (RJ45) Optional: 1x 2.5GLAN (RJ45), 1x WLAN (RP-SMA Female Jack)
EtherCAT®1x EtherCAT® 100 Mbps Full Duplex, 8-pin LEMO female, 8 A (shared with power out connector)
Power outSwitched input supply on 2-pin LEMO female, 8 A (shared with EtherCAT® connector)
Synchronization2x SIRIUS® SYNC
Video1x DVI-I (VGA and HDMI compatible)
GPS (option)10 Hz or 100 Hz or 100 Hz + RTK
GPS display (option)External on DSUB-9 female connector + remote power on
Analog out optionup to 64 channels
Power
Power supply12 - 36 V DC
Power consumptionTyp. 30 W (Max. 55 W) (excl. SIRIUS® slices)
Environmental
Operating Temperature-10 to 50 °C
Storage Temperature-40 to 85 °C
Humidity5 to 95 % RH non-condensing at 50 °C
IP ratingIP20
Shock & VibrationVibration sweep sinus (EN 60068-2-6:2008) Vibration random (EN 60721-3-2: 1997 - Class 2M2) Shock (EN 60068-2-27:2009) MIL-STD-810D
Vibration profileProfile breakpoints: 5 Hz - 0.035 g²/Hz 12 Hz - 1 g²/Hz 100 Hz - 0.001 g²/Hz 2 kHz - 0.001 g²/Hz Profile RMS / Peak = 3.1 g / 9.3 g 10 min in each axis, 30 min total
Physical
Dimensions446 x 317 x 148 mm
Weight7.4 kg (excl. SIRIUS® slices)
Rev: 1675778400

SIRIUS® DualCoreADC®的过滤规格

Digital Filter (vs. Sample Rate)0.1 ... 51.2 kS/s51.2 ... 102.4 kS/s102.4 ... 204.8 kS/s
Bandwidth (-3 dB)DC to 0.494 fsDC to 0.49 fsDC to 0.38 fs
Passband (-0.1 dB)DC to 0.47 fsDC to 0.45 fsDC to 0.24 fs
Passband Ripple-0.035 to +0.01 dB-0.035 to +0.01 dB-0.035 to +0.01 dB
Alias-free BandwidthDC to 0.42 fsDC to 0.32 fsDC to 0.22 fs
Alias Rejection-95 dB-92 dB-97 dB
Delay through ADC12 / fs9 / fs5 / fs
Oversampling25612864

SIRIUS® HS(高速)的过滤规格

ADC
Type16-bit SAR
Sampling RateSimultaneous 1 MS/sec
Analog anti alias filterBypass or analog 100 kHz 5th order Bessel
Digital low pass filter (software selectable)
Digital filter CharacteristicBypass, Butterworth or Bessel
Filter Order2nd , 4th, 6th or 8th
Ratio Sample rate to Filter Freq.From 2 to 100
TopologyCascaded IIR Filter (up to 4 sections)

SIRIUS® CNT(计数器)规格

Counter
ModesCounting, waveform timing, encoder, tacho, geartooth sensor
Counter timebase102.4 MHz
Time base accuracyTypical: 5 ppm, Max: 20 ppm
Max. Bandwidth10 MHz
Input Filter500 ns, 1 μs, 2 μs, 4 μs, 5 μs and 7.5 μs
Counter resolution32-bit
Input Compatibility, LevelTTL/CMOS (Low: <0.8 V, High >2 V)
Input termination, impedance100 kΩ pull-up to +3.3 V
Input Protection±25 V continuous
Alarm outputOpen collector, max. 100 mA / 30 V
Sensor supply5 V / 100 mA; 12 V / 50 mA
Rev: 1611658800

SIRIUS®模拟输出规格

Voltage Output
DAC Type24-bit delta-sigma
Sampling RateSimultaneous 200 kS/s
Number Of Channels8
FunctionFile replay, conditioned AI output, FGEN (software option), channel output
Specifications
Full Scale±10 V
Analogue out bandwidth40 kHz
Accuracy±0.1 % of reading ±0.02 V
Temperature Drift±50 ppm/K of reading ±200 μV/K
Output configurationSingle Ended
Typ. Noise floor @ 50 (200) kS/s output rate-95 dB (-86 dB) @ 100 kHz Bandwidth
Inter channel phase mismatch0.1° * fout [kHz] + 0.1°
THD< -90 dB @ 1 kHz, 10 Vpeak-peak
Output Impedance< 1 Ω
Maximum Output Current20 mA
Maximum load> 1000 Ω
Output ProtectionContinuous short to ground
Signal Delay
Sampling Rate100 S/s…50 kS/s50 kS/s…100 kS/s100 kS/s…200 kS/s
Signal conditioning mode (see 1)14 Samples + 50 μs19 Samples + 2 μs12 Samples + 35 μs
Additional Specifications
Output connectorBNC
1) SIRIUS-HD series supports signal conditioning only for channels 1-8

SIRIUS® CAN总线规格

CAN bus
Number of ports1
Interface typeCAN 2.0B, up to 1 MBit/s
Special applicationsCCP, OBDII, J1939, CAN output
Galvanic isolationIsolated (only on isolated motherboard)
Bus pin fault protection±36 V
ESD protection8 kV

SIRIUS® DualCoreADC® 放大器概述

UNISTGSTGMMULTIACCMIC200CHGHVLV
ConnectorsDSUB-9, L2B10fDSUB-9, L2B7f, L2B10fDSUB-9, L2B7f, L2B10fDSUB-15, L2B16fBNC, TNCL1B7fBNC, TNCBANANADSUB-9, BNC, BANANA
Counter version
Isolated version
Differential version
EtherCAT version
Rack version
Fanless version ✓(see 1)
Channels per slice888888888
Data rate / channel200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT200 kS/s USB, 20 kS/s EtherCAT
Resolution24-bit dual core24-bit dual core24-bit dual core24-bit dual core24-bit dual core24-bit dual core24-bit dual core24-bit dual core24-bit dual core
Bandwidth70 kHz70 kHz70 kHz70 kHz70 kHz70 kHz70 kHz70 kHz70 kHz
Voltage ranges±100 V, ±10 V, ±1 V, ±100 mV, ±10 mV±50 V, ±10 V, ±1 V, ±100 mV±10 V, ±1 V, ±100 mV, ±10 mV±10 V, ±1 V, ±100 mV, ±50 mV±10 V, ±500 mV±10 V, ±500 mV±10 V, ±500 mV±1200 V, ±50 V±200 V, ±10 V, ±1 V, ±100 mV
Input couplingDC, AC 0.3 Hz / 0.16 Hz (1, 3, 5, 10, 20 Hz SW)DC, AC 1 Hz (3, 10 Hz SW)DCDCDC, AC 0.1 Hz, 1 HzAC 0.35 Hz (3, 10 Hz SW)DC, AC 0.1 Hz, 1 Hz, 10 Hz, 100 HzDCDC, AC 1 Hz (3, 10 Hz SW)
Sensor excitation0..20 V max. 0.8 W, 0..60 mA max 0.5 W, IEPE 2..20 mA0..20 V max. 0.8 W, 0..60 mA max 0.5 W0..15 V max. 44 mA0..12 V max. 44 mAIEPE 2, 4, 8, 12, 16, 20 mA14 V bipolar, 200 V polarizationIEPE 4, 8, 12 mA2..30 V bipolar, 0..24 V unipolar, max. 0.2 A / 2 W
Bridge connectionFull, ½, ¼ 350 Ω, ¼ 120 Ω 3, 4 wireFull, ½, ¼ 350 Ω, ¼ 120 Ω 3, 4 wireFull, ½, ¼ 350 Ω, ¼ 120 Ω 3 wireFull, ½, ¼ 350 Ω, ¼ 120 Ω 3 wireFull
Programmable shunt59.88 kΩ, 175 kΩ bipolar59.88 kΩ, 175 kΩ bipolar100 kΩ bipolar59.88 kΩ
IEPE inputDSI-ACCDSI-ACCDSI-ACCDSI-ACC
Resistance
Temperature (PTx)DSI-RTDDSI-RTDDSI-RTD
ThermocoupleDSI-THDSI-THDSI-THDSI-THDSI-TH
Currentext. shunt, DSIext. shunt, DSIext. shunt, DSIext. shunt, DSIext. shuntext. shuntext. shuntext. shunt, DSI
Potentiometer
LVDTDSI-LVDTDSI-LVDTDSI-LVDTDSI-LVDTDSI-LVDT
ChargeDSI-CHGDSI-CHGDSI-CHGDSI-CHG100 k, 10 k pCDSI-CHG
TEDS
Isolation voltage1000 V1000 V1000 V1000 V1000 V1000 V1000 VCAT II 1000 V1000 V
Power consumption per channel2 W/ch2 W/ch1.3 W/ch1.3 W/ch1 W/ch1.1 W/ch1.2 W/ch1 W/ch1.2 W/ch
Advanced functionsSupports all strain types, IEPE sensors and high input rangeSupports all strain types and high input rangeLow power, sensor and amplifier balance, bipolar shuntAnalog Output, Low power, sensor and amplifier balanceSensor error detection, high dynamic rangeSupports polarized condenser microphonesSensor error detection in IEPE and CHG mode (injection)High voltage, high isolationHigh sensor power and multi range
(1) Fanless operation only for BNC or Banana version (without excitation)
Rev: 1646204700

SIRIUS® DualCoreADC® UNI 放大器规格

Inputs
Input typesVoltage Full/Half/Quarter bridge strain (120 Ω and 350 Ω) IEPE Potentiometer, RTD, Resistance Current (ext. Shunt)
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Dual Core Ranges (Low)±100 V (±5 V)±10 V (±500 mV)±1 V (±50 mV)±100 mV (±5 mV)±10 mV (±5 mV)
Gain accuracy±0.05 % of reading
Offset accuracy (Dual Core)±20 (10) mV±2 (1) mV±0.2 (0.2) mV±0.1 (0.1) mV±0.1 (0.1) mV
Offset Accuracy after Balance Amplifier±1 mV±0.1 mV±0.02 mV±0.01 mV±0.01 mV
Typ. Dynamic Range @ 10 kS/s (Dual Core)-147 dB (-160 dB)-147 dB (-165 dB)-144 dB (-153 dB)-137 dB (-137 dB)-117 dB (-117 dB)
Typ. Noise floor @ 10 kS/s (Dual Core)-109 dB (-122 dB)-109 dB (-126 dB)-108 dB (-114 dB)-100 dB (-100 dB)-80 dB (-80 dB)
Typ. CMR @ DC...50 Hz / 400 Hz / 1 kHz84 / 74 / 67 dB104 / 103 / 100 dB112 / 105 / 99 dB121 / 107 / 98 dB121 / 107 / 98 dB
Gain DriftTypical 10 PPM/K, max. 40 PPM/K
Offset Drift range ≥ 100 mV: Typical 0.3 μV/K + 2 ppm of range/K, max 0.8 μV/K + 10 ppm of range/K range 10 mV: Typical 0.5 μV/K, max 1.8 μV/K
Gain Linearity range ≥ 100 mV: <0.02 % range 10 mV: <0.03 %
Inter Channel Phase-mismatch 0.02° * fin [kHz] + 0.1° (@ 200 kS/s)
Channel Crosstalk -120 dB @ 10 kHz
Input CouplingDC AC 0.3 Hz for 100 V range; AC 0.16 Hz for all other ranges; (1 Hz, 3 Hz, 5 Hz, 10 Hz, 20 Hz per SW)
Input Impedance2 MΩ between IN+ and IN- for 100 V Range; all other Ranges > 1 GΩ
Max. Common Mode VoltageIsolated version: ±500 V
Differential version: 100 V Range: ±120 V; all other Ranges: ±12 V
Overvoltage Protection100 V Range: 200 V; all other Ranges: 100 V (200 V peak for 10 ms)
Excitation Voltage
Excitation Voltage Free programmable (16-bit DAC)
Predefined levels0, 1, 2.5, 5, 10, 15 and 20 VDC
Accuracy±0.05 % ±2 mV
Drift±10 ppm/K ±100 μV/K
Load stability0 % to 100 % load <0.01 %
Noise @ 10 V / 350 Ω <150 μVrms @ 10 kS/s
Line regulation over 20 Ω of change<0.005 % @ 120 Ω load
Sense Impedance to Exc / to GND 100 kΩ / >100 MΩ
Current limit100 mA (max. 800 mW)
Protection Continuous short to ground
Excitation Current
Excitation CurrentFree programmable (16-bit DAC)
Predefined levels0.1, 1, 2, 5, 10, 20 and 60 mA DC
Ranges 0.1 mA - 10 mA>10 mA - 60 mA
Accuracy0.05 % ±2 μA0.1 % ±20 μA
Drift Typical15 ppm/K45 ppm/K
Compliance voltage20 Volt, max. 500 mW
Output Impedance>100 MΩ
Bridge Connection Types
Bridge typesFull / Half / Quarter bridge (3-wire or 4-wire) / Quarter Constant Current (2-wire or 4-wire)
Ranges 2 mV/V…1000 mV/V free programmable with Dual Core
Internal Bridge CompletionHalf and Quarter bridge 120 Ω and 350 Ω
Typ. Bridge Completion Accuracy0.05 %; TCR: 2 ppm/K (others on request)
Internal Shunt Resistor59.88 kΩ, 175 kΩ, software selectable (others on request)
Typ. Shunt Resistor Accuracy0.05 %; TCR: 10 ppm/K (others on request)
Input Short, Sensor Offset Adjust Software selectable
IEPE mode
IEPE CurrentFree programmable (16-bit DAC)
Predefined levels2, 4, 8, 12, 16 or 20 mA
Compliance voltage25 Volt
Output Impedance>100 kΩ
Sensor detectionShortcut: <4 Volt; Open: >19 Volt
Counters (only on UNI+ type)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data Alarm output
Counter Modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter SpecificationsSee "SIRIUS counter specifications"
Additional Specifications
Input connectorDSUB-9, 8-pin LEMO-2B, 10-pin LEMO-2B, 16-pin LEMO-2B (others on request)
TEDS supportStandard + DSI® adapters
Rev: 1657094400

SIRIUS® DualCoreADC® STG 放大器规格

Inputs
Input typesVoltage Full/Half/Quarter bridge strain (120 Ω and 350 Ω) Potentiometer, RTD, Resistance Current (ext. Shunt)
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Dual Core Ranges (Low)±50 V (±2.5 V)±10 V (±500 mV)±1 V (±50 mV)±100 mV (±5 mV)
Gain accuracy±0.05 % of reading
Offset accuracy (Dual Core)±20 (10) mV±2 (1) mV±0.2 (0.2) mV±0.1 (0.1) mV
Offset Accuracy after Balance Amplifier±1 mV±0.1 mV±0.02 mV±0.01 mV
Typ. Dynamic Range @ 10 kS/s (Dual Core)-137 dB (-147 dB)-137 dB (-152 dB)-137 dB (-147 dB)-135 dB (-137 dB)
Typ. Noise floor @ 10 kS/s (Dual Core)-108 dB (-118 dB)-107 dB (-125 dB)-107 dB (-113 dB)-100 dB (-100 dB)
Typ. CMR @ DC...50 Hz / 400 Hz / 1 kHz56 / 56 / 56 dB88 / 86 / 84 dB97 / 96 / 95 dB115 / 112 / 102 dB
Gain Drift Typical 10 PPM/K, max. 40 PPM/K
Offset Drift Typical 0.3 μV/K + 2 ppm of range/K, max 0.8 μV/K + 10 ppm of range/K
Gain Linearity <0.02 %
Inter Channel Phase-mismatch 0.02° * fin [kHz] + 0.1° (@ 200 kS/s)
Channel Crosstalk -120 dB @ 10 kHz
Input CouplingDC, AC 1 Hz (3 Hz, 10 Hz per SW)
Input Impedance1 MΩ between IN+ and IN- for 50 V Range; all other Ranges > 1 GΩ
Max. Common Mode VoltageIsolated version: ±500 V
Differential version: 50 V Range: ±60 V; all other Ranges: ±12 V
Overvoltage Protection50 V Range: 300 V; all other Ranges: 50 V (200 V peak for 10 ms)
Excitation Voltage
Excitation Voltage Free programmable (16-bit DAC)
Predefined levels0, 1, 2.5, 5, 10, 15 and 20 VDC
Accuracy±0.05 % ±2 mV
Drift±10 ppm/K ±100 μV/K
Load stability0 % to 100 % load <0.01 %
Noise @ 10 V / 350 Ω <150 μVrms @ 10 kS/s
Line regulation over 20 Ω of change<0.005 % @ 120 Ω load
Sense Impedance to Exc / to GND 100 kΩ / >100 MΩ
Current limit100 mA (max. 800 mW)
Protection Continuous short to ground
Excitation Current
Amplifier versionSTGv2STGv3
Excitation CurrentFree programmable (16-bit DAC)
Predefined levels0.1, 1, 2, 5, 10, 20 and 60 mA DC
Ranges 0.1 - 10 mA10 - 60 mA0.01 - 1 mA1 - 60 mA
Accuracy0.1 % ±2 μA 0.5 % ±50 μApreview 0.02 % ±2 μApreview 0.25 % ±20 μA
Drift15 ppm/K100 ppm/Kpreview 15 ppm/Kpreview 100 ppm/K
Compliance voltage20 Volt, max. 500 mW
Output Impedance>1 MΩ
Bridge Connection Types
Bridge typesFull / Half / Quarter bridge (3-wire or 4-wire)
Ranges 2 mV/V…1000 mV/V free programmable with Dual Core
Internal Bridge CompletionHalf and Quarter bridge 120 Ω and 350 Ω
Maximum sensor resistance5 kΩ for Full and Half bridge measurements
Typ. Bridge Completion Accuracy0.05 %; TCR: 2 ppm/K (others on request)
Internal Shunt Resistor59.88 kΩ, 175 kΩ, software selectable (others on request)
Typ. Shunt Resistor Accuracy0.05 %; TCR: 10 ppm/K (others on request)
Input Short, Sensor Offset Adjust Software selectable
Counters (only on STG+ type)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data Alarm output
Counter Modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter SpecificationsSee "SIRIUS counter specifications"
Additional Specifications
Input connectorDSUB-9, 8-pin LEMO-2B, 16-pin LEMO-2B (others on request)
TEDS supportStandard + DSI® adapters
Rev: 1583245200

SIRIUS® DualCoreADC® STGM 放大器规格

Inputs
Input typesVoltage Full / Half / Quarter bridge strain (120 Ω and 350 Ω)
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Dual Core Ranges (Low range)±10 V (±500 mV)±1 V (50 mV)±100 mV (±5 mV)±10 mV (±0.5 mV)
Gain accuracy±0.05 % of reading
Offset accuracy (Dual Core)±5 (2) mV±0.5 (0.2) mV±0.1 (0.1) mV±0.1 (0.1) mV
Offset accuracy after Balance Amplifier0.2 mV0.02 mV0.02 mV0.02 mV
Typ. Dynamic Range @ 10 kS/s (Dual Core)-137 dB (-152 dB)-137 dB (-147 dB)-130 dB (-132 dB)-112 dB (-112 dB)
Typ. Noise floor @ 10 kS/s (Dual Core)-105 dB (-121 dB)-104 dB (-111 dB)-95 dB (-95 dB)-75 dB (-75 dB)
Typ. CMR @ DC…50 Hz / 400 Hz / 1 kHz88 / 86 / 84 dB97 / 96 / 95 dB111 / 110 / 102 dB111 / 110 / 102 dB
Gain DriftTypical 10 ppm/K, max. 40 ppm/K
Offset DriftTypical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/s)
Channel Crosstalk-120 dB @ 10 kHz
Input Coupling DC
Input Impedance10 MΩ
Max. Common Mode VoltageIsolated version: ±500 V
Differential version: ±12 V
Overvoltage ProtectionIn+ to In-: 50 V continuous; 200 V peak (10 ms)
Excitation Voltage
Excitation VoltageFree programmable (16-bit DAC)
Predefined levels0, 1, 2.5, 5, 10 and 15 VDC
Accuracy±0.05 % ±2 mV
Drift±50 ppm/K ±100 μV/K
Load stability0 % to 100 % load <0.01 %
Noise @ 10 V / 350 Ω<150 μVrms @ 10 kS/s
Line regulation over 20 Ω of change<0.005 % @ 120 Ω load
Sense Impedance100 kΩ to Exc / >100 MΩ to GND
Current limit45 mA
ProtectionContinuous short to ground
Bridge Connection Types
Bridge TypesFull / Half / Quarter bridge (3-wire)
Ranges2 mV/V…1000 mV/V free programmable with Dual Core
Internal Bridge Completion½ bridge 1 kΩ and ¼ bridge 120 Ω and 350 Ω
Typ. Bridge Completion Accuracy0.05 %; TCR: 5 ppm/K (others on request)
Maximum sensor resistance5 kΩ for Full and Half bridge measurements
Internal Shunt Resistor100 kΩ, software selectable (others on request)
Typ. Shunt Resistor Accuracy0.05 %; TCR: 10 ppm/K (others on request)
Input Short, Sensor Offset AdjustSoftware selectable
Counters (only on STGM+ type)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data Alarm output
Counter Modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter Specifications counting, waveform timing, encoder, tacho, gear-tooth sensor
Additional Specifications
Input connectorDSUB-9, 8-pin LEMO-2B, 16-pin LEMO-2B (others on request)
TEDS supportStandard + DSI® adapters

SIRIUS® DualCoreADC® ACC功放规格

Inputs
Input typesVoltage IEPE
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Ranges (Dual Core Low Range)±10 V (±500 mV)±500 mV (NA)
Input Accuracy (Dual Core)±0.1 % of reading ±10 (1) mV±0.1 % of reading ±1 (NA) mV
Dynamic Range @ 10 kS/s (Dual Core)-140 dB (-160 dB)-135 dB (NA)
Typ. Noise floor @ 50 kS/s (Dual Core)-107 dB (-125 dB)-100 dB (NA)
Typ. CMR @ 50 Hz / 1 kHz140 / 120 dB140 / 120 dB
Gain DriftTypical 10 ppm/K, max. 30 ppm/K
Offset DriftTypical 0.5 μV/K + 2 ppm of range/K, max 2 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/s)
Channel Crosstalk<-160 dB @ 1 kHz
Input CouplingDC, AC 0.1 Hz,1 Hz
Input Impedance1 MΩ (270 kΩ for AC coupling ≥1 Hz) in parallel with 100 pF
Overvoltage ProtectionIn+ to In-: 50 V continuous; 200 V peak (10 ms)
IEPE Mode
Excitation2, 4, 8, 12, 16 or 20 mA
Compliance voltage25 Volt
Output Impedance>100 kΩ
Sensor detectionShortcut: <4 Volt; Open: >19 Volt
Counters (ACC+ type only)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data
Counter Modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter SpecificationsSee "SIRIUS counter specifications"
Additional Specifications
Input connector BNCBNC or TNC (others on request)
TEDS supportIEPE mode only

SIRIUS® DualCoreADC® CHG 放大器规格

Inputs
Input typesVoltage IEPE Charge
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Ranges (Dual Core Low Range)±10 V (500 mV)±500 mV (NA)
Input Accuracy (Dual Core)±0.05 % of reading ±5 (0.5) mV±0.05 % of reading ±0.5 mV
Typ. Dynamic Range @ 10kS/s (Dual Core)-140 dB (-155 dB)-130 dB (NA)
Typ. Noise floor @ 50 kS/s (Dual Core)-107 dB (-124 dB)-98 dB (NA)
Typ. CMR @ 50 Hz / 1 kHz140 dB / 120 dB140 dB / 120 dB
Gain DriftTypical 10 ppm/K, max. 30 ppm/K
Offset DriftTypical 1 μV/K + 5 ppm of range/K, max 5 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/s)
Channel Crosstalk-180 dB @ 50 Hz; -160 dB @ 1 kHz
Input CouplingDC, AC (0.1 Hz, 1 Hz, 10 Hz or 100 Hz)
Input Impedance1 MΩ in parallel with 100 pF
Overvoltage ProtectionIn+ to In-: 50 V continuous; 200 V peak (10 ms)
IEPE Mode
Excitation4, 8 or 12 mA
Compliance voltage25 Volt
Output Impedance>100 kΩ
Sensor detectionShortcut: <4 Volt; Open: >19 Volt
Input Coupling0.01 Hz, 0.03 Hz, 0.1 Hz, 0.5 Hz, 1 Hz, 10 Hz or 100 Hz
Charge Mode
Charge ranges (Low Range)±100 000 pC (5000 pC)±10 000 pC (500 pC)
Input accuracy (HPF 0.1 Hz)±0.5 % of reading ±20 pC±0.5 % of reading ±5 pC
Typ. Dynamic Range @ 10 kS/s (Dual Core)-130 dB (-150 dB)-120 dB (-140 dB)
Typ. Noise floor @ 50 kS/s (Dual Core)107 dB (120 dB)105 dB (118 dB)
Input coupling0.01 Hz, 0.03 Hz, 0.1 Hz, 0.5 Hz, 1 Hz, 10 Hz or 100 Hz
Charge injection1 Vrms, 20 Hz, 0.5 % accuracy
Counters (only in CHG+ type)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data
Counter modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General counter specificationsSee "SIRIUS counter specifications"
Additional specifications
Input connectorBNC or TNC (others on request)
TEDS supportIEPE mode only

SIRIUS® DualCoreADC® MIC200 放大器规格

Inputs
Input typesVoltage (Externally polarized microphones)
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Dual Core Ranges (Dual Core)±10 V (±500 mV)±500 mV (NA)
Input Accuracy±0.1 % of reading ±1 mV±0.1 % of reading ±50 μV
Input Accuracy (Signal: -1 dBFS @ 1 kHz)±0.02 dB
Frequency response (10 Hz - 10 kHz)±0.02 dB
Frequency response (1 Hz - 25.6 kHz)±0.1 dB
Dynamic Range @ 10 kS/s (Dual Core)-139 dB (-160 dB)-134 dB (NA)
Typ. Noise floor @ 50 kS/s (Dual Core)-109 dB (-125 dB)-100 dB (NA)
Typ. THD @ 200 kS/s (Signal: -1 dBFS @ 1 kHz)-94 dB-92 dB
Typ. SFDR @ 200 kS/s (Signal: -1 dBFS @ 1 kHz)97 dB93 dB
Typ. CMR @ 50 Hz / 400 Hz / 1 kHz140 / 133 / 126 dB140 / 133 / 126 dB
Gain Drifttyp. 10 ppm/K, max. 40 ppm/K
Gain Linearity<0.03 %
Input CouplingAC 0.35 Hz (3 Hz, 10 Hz per SW)
Excitation
Preamplifier Excitation Voltage±14 V
Polarization Voltage200 V
Polarization Voltage Accuracy±0.5 %
ProtectionContinuous short to ground
Additional Specifications
Input connector7-pin LEMO 1B
TEDS supportStandard (Class 2)
Rev: 1683968400

SIRIUS® DualCoreADC® HV 放大器规格

Inputs Voltage
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Ranges (Dual Core Low Range)±1200 V (±50 V)±50 V (NA)
Gain accuracy±0.05 % of reading
Offset accuracy (Dual Core)±100 (50) mV±50 mV
Typ. Dynamic Range @ 10 kS/s (Dual Core)-142 dB (-158 dB)-132 dB (NA)
Typ. Noise floor @ 50 kS/s (Dual Core)-107 dB (-120 dB)-95 dB (NA)
Typ. CMR @ 50 Hz / 1 kHz85 / 60 dB85 / 60 dB
Gain DriftTypical 5 ppm/K, max. 30 ppm/K
Offset DriftTypical 1 mV/K + 1 ppm of range/K, max 2 mV/K + 5 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.04° * fin [kHz] + 0.2° (@ 200 kS/s)
Channel Crosstalk-115 dB @ 50 Hz; -90 dB @ 1 kHz
Input CouplingDC
Input Impedance10 MΩ | 2 pF
Overvoltage categoryCAT II 1000 V
Maximum input voltage2000 Vdc or 2000 Vpk (1414 Vacrms)
Additional Specifications
Input connectorBanana
TEDS supportNot available
Rev: 1698322800

SIRIUS® DualCoreADC®低压放大器规格

Inputs
Input typesVoltage Full bridge strain Current (ext. Shunt)
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Dual Core Ranges (Low Range)±200 V (10 V)±10 V (500 mV)±1 V (50 mV)±100 mV (5 mV)
Gain accuracy±0.05 % of reading
Offset accuracy (Dual Core)±40 (20) mV±2 (1) mV±0.2 (0.2) mV±0.1 (0.1) mV
Offset accuracy after Balance Amplifier2 mV0.1 mV0.02 mV0.01 mV
Typ. Dynamic Range @ 10 kS/s (Dual Core)-136 dB (-146 dB)-137 dB (-152 dB)-137 dB (-147 dB)-130 dB (-132 dB)
Typ. Noise floor @ 10 kS/s (Dual Core)-109 dB (-118 dB)-109 dB (-126 dB)-109 dB (-116 dB)-97 dB (-97 dB)
Typ. CMR @ 50 Hz / 400 Hz / 1 kHz / 10 kHz70 / 70 / 60 / 55 dB95 / 95 / 89 / 84 dB105 / 105 / 100 / 95 dB115 / 112 / 107 / 102 dB
Gain DriftTypical 10 ppm/K, max. 30 ppm/K
Offset DriftTypical 0.3 μV/K + 5 ppm of range/K, max: 2 μV/k + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/s and 10 V range)
Channel Crosstalk-120 dB @ 10 kHz (range ≤10 V); -95 dB @ 10 kHz (range = 100 V)
Input Coupling (see 1)DC, AC 1 Hz (3 Hz, 10 Hz per SW)
Input Impedance200 V Range: 1 MΩ; all other ranges 10 MΩ between IN+ or IN- against GND
Max. common mode voltageIsolated version ±500 V
Differential version: 200 V range: ±200 V; all other Ranges: ±12 V
Overvoltage Protection200 V Range: 300 V; all other ranges: 100 V (250 V peak for 10 ms)
Excitation Voltage
Excitation voltageUnipolar or Bipolar Software selectable (programmable with 16-bit DAC)
Excitation Level unipolar0…24 Volt; Predefined levels: 1, 2.5, 5, 10, 12, 15 and 24 VDC
Excitation Level bipolar2…30 Volt; Predefined levels: 2.5, 5, 10, 12, 15, 24 and 30 VDC
Accuracy±0.1 % ±5 mV
Drift±50 ppm/K ±100 μV/K
Stability10 % to 90 % load (bipolar) <0.01 %
Current limit200 mA (2 W max. per channel, 12 W max. per Slice)
ProtectionContinuous short to ground
Bridge connection types
Bridge typeFull bridge
Ranges @ 10 Vexc(low range)2 mV/V…1000 mV/V free programmable with Dual Core
Input short, Sensor offset adjustSoftware selectable
Counters (only on LV+ type)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data Alarm output
Counter modesCounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter SpecificationsSee "SIRIUS counter specifications"
Additional Specifications
Misc functionExcitation control monitoring, Amplifier Short, Single Ended/Differential
Input connectorDSUB-9, BNC, Banana (others on request)
TEDS supportStandard + DSI® adapters
1) In- must be within ±10 V referred to GND (iso); for Ranges >10 V the DC value of In- is not rejected

SIRIUS® DualCoreADC® MULTI 放大器规格

Inputs
Input typesVoltage Full / Half / Quarter bridge strain (120 Ω and 350 Ω)
ADC Type24-bit delta-sigma dual core with anti-aliasing filter
Sampling RateSimultaneous 200 kS/s
Voltage Mode
Dual Core Ranges (Low range)±10 V (±500 mV)±1 V (50 mV)±100 mV (±5 mV)±50 mV (±2.5 mV)
Gain accuracy±0.05 % of reading
Offset accuracy (Dual Core)±10 (5) mV±1 (0.5) mV±0.2 (0.2) mV±0.2 (0.2) mV
Offset accuracy after Balance Amplifier0.2 mV0.02 mV0.02 mV0.02 mV
Typ. Dynamic Range @ 10 kS/s (Dual Core)-137 dB (-152 dB)-137 dB (-147 dB)-135 dB (-137 dB)-133 dB (-133 dB)
Typ. Noise floor @ 10 kS/s (Dual Core)-105 dB (-121 dB)-104 dB (-111 dB)-100 dB (-101 dB)-95 dB (-95 dB)
Typ. CMR @ 400 Hz / 1 kHz86 / 84 dB96 / 95 dB112 / 102 dB112 / 102 dB
Gain DriftTypical 10 ppm/K, max. 40 ppm/K
Offset DriftTypical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/s)
Channel Crosstalk-120 dB @ 10 kHz
Input Coupling DC
Input Impedance10 MΩ
Max. Common Mode VoltageIsolated version: ±500 V Differential version: ±12 V
Overvoltage ProtectionIn+ to In-: 50 V continuous; 200 V peak (10 ms)
Excitation Voltage
Excitation VoltageFree programmable (16-bit DAC)
Predefined levels0, 1, 2.5, 5, 10 and 12 VDC
Accuracy±0.1 % ±10 mV
Drift±50 ppm/K ±100 μV/K
Load stability0 % to 100 % load <0.01 %
Current limit45 mA (max. 400 mW)
ProtectionContinuous short to ground
Additional Fixed ExcitationsDSUB-15: 12 V (max. 50 mA); 5 V (max. 100 mA) Accuracy 5 % 16-pin LEMO-2B: +/- 14.5 V (max. 50 mA); 5 V (max. 100 mA) Accuracy 5 %
Bridge Connection Types
Bridge TypesFull / Half / Quarter bridge (3-wire)
Ranges2 mV/V…1000 mV/V free programmable with Dual Core
Internal Bridge Completion½ bridge 1 kΩ and ¼ bridge 120 Ω and 350 Ω
Typ. Bridge Completion Accuracy0.05 %; TCR: 5 ppm/K (others on request)
Internal Shunt Resistor59.88 kΩ, software selectable (others on request)
Typ. Shunt Resistor Accuracy0.05 %; TCR: 10 ppm/K (others on request)
Input Short, Sensor Offset AdjustSoftware selectable
Counters
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data
Counter Modescounting, waveform timing, encoder, tacho, gear-tooth sensor
Input Level CompatibilityCMOS, LVTTL (protected up to ±25 Volt continuous)
Analog Out
Overall information1 channel, 24-bit sigma delta 200 kHz, ±10 V
Accuracy±0.1 % of reading ±0.02 V
Temperature Drift±50 ppm/K of reading ± 200 µV/K
Output Impedance<10 Ω
Maximum Output Current / Load20 mA / >1000 Ω
Output ProtectionContinuous short to ground
Additional Specifications
Input connectorDSUB-15, 16-pin LEMO-2B (others on request)
TEDS supportStandard + DSI® adapters

SIRIUS® HD(高密度)放大器概述

HD-STGSHD-LVHD-ACC
ConnectorsDSUB-9, L1B10fDSUB-9, BNCBNC
Counter version
Isolated version
Differential version
EtherCAT version
Rack version
Fanless version
Channels per slice161616
Data rate / channel200 kS/s USB, 10 kS/s EtherCAT200 kS/s USB, 10 kS/s EtherCAT200 kS/s USB, 10 kS/s EtherCAT
Resolution24-bit24-bit24-bit
Bandwidth70 kHz71 kHz72 kHz
Voltage ranges±10 V, ±1 V, ±100 mV, ±10 mV±100 V, ±10 V, ±1 V, ±100 mV±10 V, ±5 V, ±1 V, ±200 mV
Input couplingDCDCDC, AC 0.1 Hz, 1 Hz
Sensor excitation0..12 V max. 44 mA2…30 V bipolar, 0…24 unipolar, max. 0.2 A / 2 WIEPE 4,8,12 mA
Bridge connectionFull, ½, ¼ 350 Ω, ¼ 120 Ω 3-wireFull
Programmable shunt100 kΩ
IEPE inputDSI-ACCDSI-ACC
Resistance
Temperature (PTx)DSI-RTDDSI-RTD
ThermocoupleDSI-THDSI-TH
Potentiometer
LVDTDSI-LVDTDSI-LVDT
ChargeDSI-CHGDSI-CHG
Currentext. shunt, DSIext. shunt, DSIext. shunt
TEDS
Isolation voltage500 V in pairs500 V in pairs500 V in pairs
Power consumption per channel1.3 W/pair1.3 W/pair1.3 W/pair
Advanced functionsLow power, sensor and amplifier balanceHigh sensor power and multi rangeSensor error detection

SIRIUS® HD-STGS 功放规格

Inputs
Input typesVoltage Full/Half/Quarter bridge strain (120 Ω and 350 Ω) Potentiometer Current (ext. Shunt)
ADC Type24-bit delta-sigma with anti-aliasing filter
Sampling Rate Simultaneous200 kS/sec
Voltage Mode
Ranges±10 V±1 V±100 mV±10 mV
Gain Accuracy±0.05 % of reading
Offset Accuracy±2 mV±0.2 mV±0.1 mV±0.1 mV
Offset Accuracy after Balance Amplifier±0.2 mV±0.02 mV±0.01 mV±0.01 mV
Dynamic Range @ 10 kS-137 dB-137 dB-130 dB-112 dB
Typ. Noise floor @ 10 kS-105 dB-104 dB-95 dB-75 dB
Typ. CMR @ 400 Hz / 1 kHz86 / 84 dB96 / 95 dB112 / 102 dB112 / 102 dB
Gain DriftTypical 10 PPM/K, max. 40 PPM/K
Offset DriftTypical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/sec)
Channel Cross talk-120 dB @ 10 kHz
Input CouplingDC
Input Impedance10 MΩ
Max. common mode voltage±12 V
Overvoltage ProtectionIn + to In-: 50 V continuous; 200 V peak (10 msec)
Excitation Voltage
Excitation Voltage Free programmable (16-bit DAC)
Predefined levels0, 1, 2.5, 5, 10 and 12 VDC
Accuracy±0.05 % ±2 mV
Drift±50 ppm/K ±100 μV/K
Stability 10 % to 90 % load<0.01 %
Current limit45 mA (350 mW max. power)
ProtectionContinuous short to ground
Bridge Connection Types
Bridge typesFull / Half / Quarter bridge (3-wire)
Ranges2 mV/V…1000 mV/V free programmable
Internal Bridge Completion½ bridge and ¼ bridge 120 Ω and 350 Ω
Bridge Completion Accuracy0.05 %; TCR: 5 ppm/K (others on request)
Internal Shunt Resistor100 kΩ (others on request)
Maximum sensor resistance5 kΩ for Full and Half bridge measurements
Typ. Shunt Resistor Accuracy0.05 %; TCR: 10 ppm/K (others on request)
Input Short, Sensor Offset AdjustSoftware selectable
Additional Specifications
Input connectorDSUB-9
TEDS supportStandard + DSI® adapters
Rev: 1593385200

SIRIUS® HD-ACC 功放规格

Inputs
Input typesVoltage IEPE
ADC TypeType 24-bit delta-sigma with anti-aliasing filter
Sampling RateSimultaneous 200 kS/sec
Voltage Mode
Range±10 V±5 V±1 V±200 mV
Gain accuracy±0.05 % of reading
Offset accuracy±2 mV±1 mV±0.2 mV±0.1 mV
Typ. Dynamic Range @ 10 kS-137 dB-137 dB-137 dB-131 dB
Typ. Noise floor @ 10 kS-109 dB-109 dB-108 dB-102 dB
Typ. CMR @ 400 Hz / 1 kHz140 dB / 120 dB
Gain DriftTypical 10 PPM/K, max. 30 PPM/K
Offset DriftTypical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/sec and 10 V Range)
Channel Cross talk-150 dB @ 50 Hz; -140 dB @ 1 kHz
Input CouplingDC, AC 0.1 Hz, 1 Hz
Input Impedance1 MΩ (270 kΩ for AC coupling ≥ 1 Hz) in parallel with 100 pF
Over-voltage ProtectionIn+ to In-: 50 V continuous; 200 V peak (10 msec) In- to GND (differential version): 3 Volt
IEPE mode
Excitation4, 8 or 12 mA
Compliance voltage22 Volt
Output Impedance>100 kΩ
Sensor detectionShortcut: <4 Volt; Open: >19 Volt
Additional Specifications
Input connectorBNC
TEDS supportIEPE mode only
Rev: 1593385200

SIRIUS® HD-LV 功放规格

Inputs
Input typesVoltage Full bridge strain Current (ext. Shunt)
ADC TypeType 24-bit delta-sigma with anti-aliasing filter
Sampling RateSimultaneous 200 kS/sec
Voltage Mode
Ranges±100 V±10 V±1 V±100 mV
Gain accuracy±0.05 % of reading
Offset accuracy± 20 mV± 2 mV± 0.2 mV± 0.1 mV
Dynamic Range @ 10 kS-134 dB-137 dB-137 dB-125 dB
Typ. Noise floor @ 10 kS-104 dB-104 dB-104 dB-95 dB
Typ. CMR @ 400 Hz / 1 kHz74 / 70 dB86 / 84 dB96 / 95 dB112 / 102 dB
Gain DriftTypical 10 PPM/K, max. 40 PPM/K
Offset DriftTypical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1° (@ 200 kS/sec and 10 V Range)
Channel Cross talk-120 dB @ 10 kHz (Range ≤10 V); -76 dB @ 1 kHz (Range = 100 V)
Input CouplingDC
Input Impedance1 MΩ for 100 V Range; all other Ranges 10 MΩ
Max. common mode voltage100 V Range: ±100 V; all other Ranges: ±12 V
Overvoltage ProtectionIn+ to In-: 100 V Range: 200 V; all other Ranges: 50 V (200 V for 10 msec)
Excitation Voltage
Excitation Voltage Unipolar or Bipolar Software selectable Free programmable (16-bit DAC)
Excitation Level unipolar0…24 Volt; Predefined levels: 1, 2.5, 5, 10, 12, 15, 20 and 24 VDC
Excitation Level bipolar2…30 Volt; Predefined levels: 2.5, 5, 10, 12, 15, 24 and 30 VDC
Accuracy±0.1 % ±5 mV
Drift±50 ppm/K ±100 μV/K
Stability 10 % to 90 % load<0.01 %
Current limit100 mA (1 Watt max. per Channel, 12 Watt max. per Slice)
ProtectionContinuous short to ground
Bridge Connection TypesFull bridge
Ranges @ 10 VExc2 mV/V…1000 mV/V free programmable
Sensor Offset AdjustSoftware selectable
Additional Specifications
Input connectorDSUB-9, BNC (others on request)
TEDS supportStandard + DSI® adapters
Rev: 1593385200

SIRIUS® HS(高速)放大器概述

HS-HVHS-LVHS-ACCHS-CHGHS-STG
ConnectorsBANANADSUB-9, BNC, BANANABNCBNC, TNCDSUB-9
Counter version
Isolated version
Differential version
EtherCAT version
Rack version
Fanless version✓ (see 1)
Channels per slice88888
Data rate / channel1 MS/s1 MS/s1 MS/s1 MS/s1 MS/s
Resolution16-bit16-bit16-bit16-bit16-bit
Bandwidth2 MHz1 MHz500 kHz500 kHz1 MHz
Voltage ranges±2000 V … ±20 V±100 V … ±50 mV±10 V … ±200 mV±10 V … ±100 mV±50 V … ±20 mV
Input couplingDCDC, AC 1 Hz (3, 10 Hz SW)DC, AC 1 Hz (3, 10 Hz SW)DC, AC 0.1 Hz, 1 Hz, 10 Hz, 100 HzDC, AC 1 Hz (3, 10 Hz SW)
Sensor excitation2…30 V bipolar, 0…24 V unipolar, max. 0.2 A / 2 WIEPE 4 mA, 8 mAIEPE 4, 8, 12 mA0…20 V max. 0.8 W, 0..60 mA max 0.5 W
Bridge connectionFullFull, ½, ¼ 350 Ω, ¼ 120 Ω, 3 or 4 wire
Programmable shunt59.88 kΩ, 175 kΩ bipolar
IEPE inputDSI-ACCDSI-ACC
Resistance
Temperature (PTx)DSI-RTD
ThermocoupleDSI-THDSI-TH
Potentiometer
LVDTDSI-LVDTDSI-LVDT
ChargeDSI-CHG1 k …100 k pCDSI-CHG
Currentext. shunt, DSIext. shuntext. shuntext. shunt, DSI
TEDS
Isolation voltageCAT II 1000 V1000 V1000 V1000 V1000 V
Power consumption per channel1 W/ch1.2 W/ch2 W/ch1.2 W/ch2 W/ch
Advanced functionsHigh voltage, high bandwidth, high isolationHigh sensor power and multi rangeSensor error detection, high speedSensor error detection in IEPE and CHG mode (injection)High speed, supports all strain types and high input range
(1) Fanless operation only for BNC or Banana version (without excitation)

SIRIUS® HS-ACC 放大器规格

Inputs
Input typesVoltage IEPE
ADC Type16-bit SAR
Sampling RateSimultaneous 1 MS/s
FilteringSee "HS general specifications"
Analog bandwidth500 kHz
Voltage Mode
Ranges±10 Volt±5 Volt±1 Volt±0.2 Volt
Input Accuracy±0.05 % of reading
Offset Accuracy±2 mV±1 mV±0.2 mV±0.1 mV
Typ. Noise floor @ 100 kS/s-89 dB-89 dB-86 dB-83 dB
Typ. CMR @ 50 Hz / 400 Hz / 1 kHz120 / 96 / 88 dB126 / 100 / 92 dB140 / 110 / 102 dB140 / 118 / 110 dB
Gain DriftTypical 10 ppm/K, max. 30 ppm/K
Offset DriftTypical 0.5 μV/K + 10 ppm of range/K, max 3 μV/K + 20 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1°
Channel Cross talk-83 dB
Input CouplingDC or AC (1 Hz)
Input Impedance1 MΩ
Overvoltage Protection50 V continuous; 200 V peak (10 msec)
IEPE mode
Excitation4 or 8 mA
Compliance voltage25 Volt
Output Impedance>100 kΩ
Sensor detectionShortcut: <4 Volt; Open: >19 Volt
Counters (HS-ACC+ type only)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data
Counter Modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter SpecificationsSee "SIRIUS counter specification"
Additional Specifications
Input connectorBNC
TEDS supportIEPE mode only
Rev: 1593385200

SIRIUS® HS-CHG 功放规格

Inputs
Input typesVoltage IEPE Charge
ADC Type16-bit SAR
Sampling RateSimultaneous 1 MS/s
FilteringSee "HS general specifications"
Analog bandwidth (see 1)500 kHz
Voltage Mode
Ranges±10, ±5, ±2, ±1, ±0.5, ±0.2, ±0.1 Volt
Input AccuracySignal frequencyAccuracy
DC±0.05 % of reading ±0.02 % of range ±50 μV
up to 10kHz±0.1 % of reading ±0.05 % of range
up to 100kHz±2 % of reading ±0.1 % of range
Typ. Noise floorSample rate/Range →10 V5 V1 V0.1 V
1 MS/s-88 dB-87 dB-85 dB-68 dB
200 kS/s-89 dB-89 dB-88 dB-83 dB
20 kS/s<-100 dB<-100 dB<-100 dB-92 dB
Typical CMR50 Hz / 1 kHz>140 / 120 dB>140 / 124 dB>140 / 126 dB>140 / 126 dB
Gain DriftTypical 10 ppm/K, max. 30 ppm/K
Offset DriftTypical 0.5 μV/K + 10 ppm of range/K, max 3 μV/K + 20 ppm of range/K
Gain Linearity<0.02 %
Inter Channel Phase-mismatch0.02° * fin [kHz] + 0.1°
Channel Cross talk-110 dB @ 1 kHz; -90 dB @ 10 kHz
Input CouplingDC or AC (0.1 Hz, 1 Hz, 10 Hz or 100 Hz)
Input Impedance1 MΩ / 100 pF
Overvoltage Protection50 V continuous; 200 V peak (10 msec)
IEPE mode
Charge ranges±100 000, 50 000, 20 000, 10 000, 5000, 2000, 1000 pC
Excitation4 or 8 mA
Compliance voltage25 Volt
Output Impedance>100 kΩ
Sensor detectionShortcut: <4 Volt; Open: >19 Volt
Input Accuracy±0.5 % of reading ±0.05 % of range ±2 pC
Input Coupling0.01 Hz, 0.03 Hz, 0.1 Hz, 0.5 Hz, 1 Hz, 10 Hz or 100 Hz
Counters (only on HS-CHG+ type)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data
Counter Modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter Specifications See "SIRIUS counter specification"
Additional Specifications
Input connectorBNC (others on request)
TEDS supportIEPE mode only
1) 200 kHz for Charge ranges
Rev: 1593385200

SIRIUS® HS-HV (v2) 放大器规格

Inputs
Input typesVoltage
ADC Type16-bit SAR
Sampling RateSimultaneous 1 MS/s
FilteringSee "HS general specifications"
Analog bandwidth2 MHz
Voltage Mode
Ranges±1600 V, ±800 V, ±400 V, ±200 V, ±100 V, ±50 V, ±20 V
Input Accuracy (see 1)Signal frequencyAccuracy
DC±0.03 % of reading ±0.02 % of range ±0.04 V
Up to 1 kHz±0.03 % of reading ±0.02 % of range
Up to 10 kHz±0.1 % of reading ±0.05 % of range
Up to 100 kHz±2 % of reading ±0.1 % of range
Up to 1000 kHz±5 % of reading ±0.5 % of range
Typ. Noise floorSample rate/Range →1600 V400 V100 V
1 MS/s-83 dB-79 dB-71 dB
200 kS/s-85 dB-85 dB-82 dB
20 kS/s-100 dB-97 dB-90 dB
Typ. CMR @ 50 Hz / 1 kHz / 10 kHz85 dB / 75 dB / 50 dB
Gain DriftTypical 25 ppm/K, max. 50 ppm/K
Offset DriftTypical 1 mV/K + 10 ppm of range/K, max 2 mV/K + 15 ppm of range/K
Gain Linearity<0.02 %
Channel Cross talk-115 dB @ 50 Hz; -90 dB @ 1 kHz
Input CouplingDC
Input Impedance10 MΩ | 2 pF
Overvoltage categoryCAT II 1000 V
Maximum input voltage2000 Vdc or 2000 Vpk (1414 Vacrms)
Additional Specifications
Input connectorBanana
TEDS support NA
1) 50 V Range (1.2 MHz) and 20 V range (700 kHz) have limited bandwidth
Rev: 1671188100

SIRIUS® HS-HV (v3) 放大器规格

Inputs
Input typesVoltage
ADC Type16-bit SAR
Sampling RateSimultaneous 1 MS/s
FilteringSee "HS general specifications"
Analog bandwidth2 MHz (1.5 MHz for 50 V range, 800 kHz for 20 V range)
Voltage Mode
Ranges±2000 V, ±1000 V, ±400 V, ±200 V, ±100 V, ±50 V, ±20 V
Input AccuracySignal frequencyAccuracy
DC±0.03 % of reading ±0.02 % of range ±0.04 V
Up to 1 kHz±0.03 % of reading ±0.02 % of range
Up to 10 kHz±0.1 % of reading ±0.05 % of range
Up to 100 kHz±2 % of reading ±0.1 % of range
Up to 1000 kHz±5 % of reading ±0.5 % of range
Typ. Noise floorSample rate/Range →2000 V400 V100 V
1 MS/s-84 dB-80 dB-71 dB
200 kS/s-86 dB-85 dB-83 dB
20 kS/s-100 dB-96 dB-91 dB
Typ. CMR @ 50 Hz / 1 kHz / 10 kHz95 dB / 75 dB / 55 dB
Gain DriftTypical 25 ppm/K, max. 50 ppm/K
Offset DriftTypical 1 mV/K + 10 ppm of range/K, max 2 mV/K + 15 ppm of range/K
Gain Linearity<0.02 %
Channel Cross talk-115 dB @ 50 Hz; -90 dB @ 1 kHz
Input CouplingDC
Input Impedance10 MΩ | 2 pF
Overvoltage categoryCAT II 1000 V
Maximum input voltage2000 Vdc or 2000 Vpk (1414 Vacrms)
Additional Specifications
Input connectorBanana
TEDS support NA
Rev: 1698322800

SIRIUS® HS-LV 功放规格

Inputs
Input typesVoltage Full bridge strain Current (ext. Shunt)
ADC Type16-bit SAR
Sampling RateSimultaneous 1 MS/s
FilteringSee "HS general specifications"
Analog bandwidth1 MHz (800 kHz for ranges ≤0.2 V)
Voltage Mode
Ranges±100, 50, 20, 10, 5, 2, 1, 0.5, 0.2, 0.1 and 0.05 Volt
Input AccuracySignal frequencyAccuracy
DC ±0.03 % of reading ±0.02 % of range ±100 μV (2 mV for Ranges ≥10 Volt)
Up to 1 kHz ±0.03 % of reading ±0.02 % of range
Up to 10 kHz±0.1 % of reading ±0.05 % of range
Up to 100 kHz±2 % of reading ±0.1 % of range
Up to 1000 kHz±5 % of reading ±0.5 % of range
Offset accuracy after Balance AmplifierRange <10 V: ±0.002 % of range ±3 μV; Range ≥10 V: ±0.005 % of range
Typ. Noise floorSample rate/Range →100 V5 V0.5 V0.05 V
1 MS/s-85 dB-86 dB-78 dB-59 dB
200 kS/s-88 dB-88 dB-87 dB-76 dB
20 kS/s<-100 dB<-100 dB-95 dB-86 dB
Typical CMRBandwidth/Range →100 V5 V0.5 V0.05 V
50 Hz70 dB88 dB102 dB102 dB
400 Hz70 dB86 dB100 dB100 dB
10 kHz55 dB70 dB80 dB80 dB
Gain DriftTypical 10 ppm/K, max. 30 ppm/K
Offset DriftTypical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K
Gain Linearity<0.02 %
Inter channel phase mismatch0.02° * fin [kHz] + 0.1° (5 V Range)
Channel Cross talk Range<10 V: -120 dB @ 10 kHz; Range ≥10 V: -95 dB @ 10 kHz
Input Coupling (see 1)DC, AC 1 Hz (3 Hz, 10 Hz per SW)
Input ImpedanceRange <10 V: 10 MΩ; Range ≥10 V: 1 MΩ | 110 pF between INx to GND
Max. Common Mode VoltageIsolated version: ±500 V
Differential version: Ranges ≥10 Volt: ±100 V; all other Ranges: ±12 V
Overvoltage Protection<10 V: 100 V (200 V peak for 10 msec); Range ≥10 V: 300 V cont.
Excitation Voltage
Excitation Voltage Unipolar or Bipolar Software selectable Free programmable (16-bit DAC)
Excitation Levelunipolar 0…24 Volt; Predefined levels: 1, 2.5, 5, 10, 12, 15, 20 and 24 VDC
Excitation Levelbipolar 2…30 Volt; Predefined levels: 2.5, 5, 10, 12, 15, 24 and 30 VDC
Accuracy±0.1 % ±5 mV
Drift±50 ppm/K ±100 μV/K
Stability 10 % to 90 % load (bipolar)<0.01 %
Current limit200 mA (2 Watt max. per Channel, 12 Watt max. per Slice)
ProtectionContinuous short to ground
Input short, Sensor offset adjustSoftware selectable
Counters (only on HS-LV+ type)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data
Counter modescounting, waveform timing, encoder, tacho, gear tooth sensor
General Counter Specifications See "SIRIUS counter specification"
Additional Specifications
Input connectorDSUB-9, Banana, BNC (others on request)
TEDS supportStandard + DSI® adapters
1) In- must be within ±10 V referred to GND (iso); for Ranges ≥10 V the DC value of In- is not rejected
Rev: 1593504000

SIRIUS® HS-STG 放大器规格

Inputs
Input typesVoltage Full/Half/Quarter bridge strain (120 Ω and 350 Ω) Potentiometer, RTD, Resistance Current (ext. Shunt)
ADC Type16-bit SAR
Sampling RateSimultaneous 1 MS/s
FilteringSee "HS general specifications"
Analog bandwidth1 MHz (800 kHz for ranges ≤0.2 V)
Voltage Mode
Ranges±50, 20, 10, 5, 2, 1, 0.4, 0.2, 0.1, 0.04 and 0.02 Volt
Input AccuracySignal frequencyAccuracy
DCRange <10 V: ±0.03 % of reading ±0.04 % of range ±10 μV
Range ≥10 V: ±0.05 % of reading ±0.01 % of range ±5 mV
Up to 1 kHz±0.03 % of reading ±0.02 % of range
Up to 10 kHz±0.1 % of reading ±0.05 % of range
Up to 100 kHz±2 % of reading ±0.1 % of range
Up to 500 kHz±10 % of reading ±0.5 % of range
Offset accuracy after Balance AmplifierRange <10 V: ±0.002 % of range ±3 μV; Range ≥10 V: Not performed
Typ. Noise floorSample rate/Range →50 V5 V0.2 V0.02 V
1 MS/s-87 dB-88 dB-81 dB-63 dB
200 kS/s-88 dB-88 dB-85 dB-74 dB
20 kS/s<-100 dB<-100 dB-94 dB-84 dB
Typical CMRBandwidth/Range →50 V5 V0.2 V0.02 V
50 Hz70 dB88 dB102 dB102 dB
400 Hz70 dB86 dB100 dB100 dB
10 kHz55 dB70 dB80 dB80 dB
Gain DriftTypical 10 ppm/K, max. 30 ppm/K
Offset Drifttypical 0.3 μV/K + 15 ppm of range/K, max 2 μV/K + 40 ppm of range/K
Gain Linearity<0.02 %
Inter channel phase mismatch0.02° * fin [kHz] + 0.1° (5 V Range)
Channel Cross talkRange <10 V: -120 dB @ 10 kHz; Range ≥10 V: -95 dB @ 10 kHz
Input Coupling (see 1)DC, AC 1 Hz (3 Hz, 10 Hz per SW)
Input ImpedanceRange <10 V: 10 MΩ; Range ≥10 V: 1 MΩ between INx to GND
Max. common mode voltageIsolated version: ±500 V
Differential version: Ranges ≥10 Volt: ±60 V; all other Ranges: ±12 V
Overvoltage ProtectionRange <10 V: 100 V (200 V peak for 10 msec); Range ≥10 V: 300 V cont.
Excitation Voltage
Excitation Voltage Free programmable (16-bit DAC)
Predefined levels0, 1, 2.5, 5, 10, 15 and 20 VDC
Accuracy±0.05 % ±2 mV
Drift±10 ppm/K ±100 μV/K
Load stability 0 % to 100 % load<0.01 %
Line regulation over 20 Ω of change<0.005 % @ 120 Ω load
Noise @ 10 Volt / 350 Ω< 200 μVrms @ 10 kHz BW
Sense Impedance to Exc / to GND100 kΩ / 100 MΩ
Current limit100 mA (max. 800 mW)
ProtectionContinuous short to ground
Input short, Sensor offset adjustSoftware selectable
Excitation Current
Excitation CurrentFree programmable (16-bit DAC)
Predefined levels0.1, 1, 2, 5, 10, 20 and 60 mADC
Accuracy (>10 mA)0.1 % ±2 μA [0.5 % ±50 μA]
Drift (>10 mA)15 ppm/K [100 ppm/K]
Compliance voltage20 Volt, max. 300 mW
Output Impedance>1 MΩ
Bridge Connection Types
Bridge typesFull / Half / Quarter bridge (3-wire or 4-wire)
Ranges2 mV/V…1000 mV/V free programmable
Internal Bridge Completion½ bridge and ¼ bridge 120 Ω and 350 Ω
Bridge Completion Accuracy0.05 %; TCR: 5 ppm/K (others on request)
Internal Shunt Resistor59.88 kΩ and 175 kΩ, bipolar (to +Exc and -Exc)
Maximum sensor resistance5 kΩ for Full and Half bridge measurements
Typ. Shunt Resistor Accuracy0.05 %; TCR: 10 ppm/K (others on request)
Sensor Balance Range220 % of Range (70 % for input Range ≥5 Volt)
Input Short, Sensor Offset AdjustSoftware selectable
Counters (only on HS STG+)
Inputs1 digital counter input 3 digital inputs Fully synchronised with analog data
Counter modescounting, waveform timing, encoder, tacho, gear-tooth sensor
General Counter SpecificationsSee "SIRIUS counter specification"
Additional Specifications
Input connectorDSUB-9 (others on request)
TEDS supportStandard + DSI® adapters
1) In- must be within ±10 V referred to GND (iso); for Ranges ≥10 V the DC value of In- is not rejected
Rev: 1593504000
回到顶部
