EtherCAT® 액세서리 기술 사양
ECAT-SYNC-JUNCTION 기술 사양

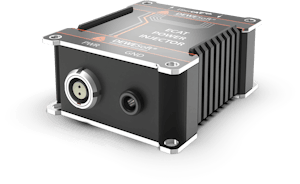

| EtherCAT SYNC JUNCTION | |
|---|---|
| Interface | |
| Data interface | EtherCAT® |
| Data Rate | 100 Mbps Full Duplex bus speed |
| Max. Throughput per Chain | From 6 MB/s to 10 MB/s (see 1) |
| Sync Accuracy | < 200 ns within same EtherCAT chain < 2 µs using sync for multiple EtherCAT chains below 1 sample to Sirius® |
| EtherCAT® | Max. Cable Length 100 m |
| Max. Number of Units | 64 or more (power injectors may be required) |
| Data Interface Connection | LEMO 1T EtherCAT® hybrid cable Single cable for data, power and sync, daisy chainable |
| Power specification | |
| Power Supply | 9-48 V DC |
| Current | 8 A DC max |
| Power Consumption | Typ. 1.3 W (Max. 1.5 W) (without additional power daisy-chain) |
| Environmental specification | |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Shock & Vibration | Shock: SIST EN 60068-2-27:2009 (100 g, 6 ms) Random vibration |
| 1) It depends on the devices connected, numbers of channels, configuration, length of cables and other parameters. | |
| Rev.: 1671516000 | |
DS-HUBe7 기술 사양
| DS-HUBe7 | |
|---|---|
| Interface | |
| Data interface | EtherCAT® |
| Data Rate | 100 Mbps Full Duplex bus speed |
| Max. Throughput per Chain | From 6 MB/s to 10 MB/s (see 1) |
| Sync Accuracy | below 1 sample to Sirius® |
| EtherCAT® | Max. Cable Length 100 m |
| Max. Number of Units | 64 or more (power injectors may be required) |
| Data Interface Connection | LEMO 1T EtherCAT® hybrid cable Single cable for data, power and sync, daisy chainable |
| Input | Single IN port, L1T8m (data only) |
| Output | 7x OUT port, L1T8f (data and power from POWER IN) |
| Power | |
| Power supply | 24 V typ. (18 - 30 V) |
| Maximum current | 10 A typ., 15 A max. |
| Power consumption | Typ. 4 W (excl. ECAT devices) |
| Power out | |
| Type | LEMO 2pin female, daisy chain |
| Output Voltage | Equal to input power supply voltage |
| EtherCAT® Power out | |
| Type | Switched input supply on EtherCAT® connector, LEMO 8pin female |
| Maximum current | 6 A typ. |
| Output Voltage | Equal to input power supply voltage |
| Environmental | |
| Operating Temperature | -25 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95 % RH non-condensing at 50 °C |
| IP rating | IP50 |
| Shock & Vibration | Vibration sweep sinus (EN 60068-2-6:2008) Vibration random (EN 60721-3-2: 1997 - Class 2M2) Shock (EN 60068-2-27:2009) MIL-STD-810D |
| Physical | |
| Dimensions | 266 x 139 x 65 mm |
| Weight | 1.2 kg |
| 1) It depends on the devices connected, numbers of channels, configuration, length of cables and other parameters. | |
| Rev: 1615809600 | |

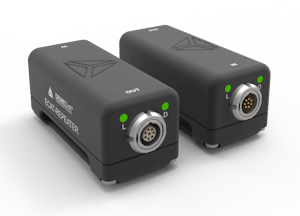

ECAT-REPEATER 기술 사양
| Interface | |
| Data interface | EtherCAT® |
| Data Rate | 100 Mbps Full Duplex bus speed |
| Max. Throughput per Chain | From 6 MB/s to 10 MB/s (see 1) |
| Sync Accuracy | below 1 sample to Sirius® |
| EtherCAT® | Max. Cable Length 50 m |
| Data Interface Connection | LEMO 1T EtherCAT® hybrid cable Single cable for data, power and sync, daisy chainable |
| Input connector | L1T8m (data, power and sync) |
| Output connector | L1T8f (data, power and sync) |
| Power | |
| Power supply | 9 - 48 VDC |
| Maximum current | max. 7.5 A |
| Power consumption | Typ. 0.72 W, Max. 1 W |
| Environmental | |
| Operating Temperature | -40 to 85 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95 % RH non-condensing at 50 °C |
| IP rating | IP67 |
| Shock & Vibration | Vibration sweep sinus (EN 60068-2-6:2008) Vibration random (EN 60721-3-2: 1997 - Class 2M2) Shock (EN 60068-2-27:2009) MIL-STD-810D |
| Physical | |
| Dimensions | 85.3 x 35 x 34 mm (incl. connectors) |
| Weight | 190 g |
| 1) It depends on the devices connected, numbers of channels, configuration, length of cables and other parameters. | |
