Технические характеристики стойки IOLITE®
- Технические характеристики системы IOLITE® R12
- Технические характеристики системы IOLITE® R8
- Технические характеристики системы IOLITE® R8r
- Обзор многоканальных усилительных модулей IOLITE®
- Технические характеристики IOLITE-8xACC
- Технические характеристики IOLITE-6xSTG
- Технические характеристики IOLITE-8xSTGS
- Технические характеристики IOLITE 8xSTGS (v2)
- Технические характеристики IOLITEi-8xLV
- Технические характеристики IOLITE-8xLVe
- Технические характеристики IOLITE-16xLV
- Технические характеристики IOLITEi-4xHV
- Технические характеристики IOLITEi-8xLA
- Технические характеристики IOLITEi-8xTH
- Технические характеристики IOLITEi-8xTH-HS
- Технические характеристики IOLITEi-8xRTD
- Технические характеристики IOLITEi-8xRTD-HS
- Технические характеристики IOLITEi-8xRTDp
- Технические характеристики IOLITE-32xDI
- Технические характеристики IOLITE-4xCNT
- Технические характеристики IOLITE-32xDO
- Технические характеристики IOLITE-8xDI-4xDO
- Технические характеристики IOLITE-16xAO
- Технические характеристики IOLITEi-4xCAN-FD
Технические характеристики системы IOLITE® R12
System | IOLITE R12 |
---|---|
Number of slots | 12 |
Synchronization | 2x SIRIUS® SYNC on L00B4f |
Sync Accuracy | < 200 ns within same EtherCAT chain < 2 µs using sync for multiple EtherCAT chains below 1 sample to Sirius® |
Dual EtherCAT® interface | |
Number of buses | Two (both with buffered DAQ or real time) |
Data Rate | Dual 100 Mbit bus speed |
Max. Throughput per Chain | From 6 MB/s to 10 MB/s |
Bus 1 connectors | 2x Ethernet RJ45 |
Bus 2 connectors | 2x Ethernet RJ45 |
Minimum delay (analog input to EtherCAT® bus) | 70 µs |
Minimum EtherCAT® cycle time | 100 µs |
Power | |
Power supply | Dual redundant 9 - 48 V DC |
Power consumption | 9 W to 11 W (incl. IOLITE-GATE) IOLITE-GATE: Max. 1.9 W |
Maximum input current | 10 A |
Environmental | |
Operating Temperature | -10 to 50 °C (-40 to 85 °C optional ) (see 1) |
Storage Temperature | -40 to 85 °C |
Humidity | 5 to 95 % RH non-condensing at 50 °C |
IP rating | IP30 |
Shock | Shock (EN 60068-2-27:2009) |
Vibration | Vibration random (MIL-STD-810D) Vibration random (EN 60721-3-2: 1997 - Class 2M2) |
Physical | |
Dimensions | 483 x 148 x 133 mm |
Weight | 3.1 kg (incl. IOLITE-GATE) 230 g (IOLITE-GATE) |
1) Extended operating temperature range depends of module configuration | |
Rev: 1668186000 |

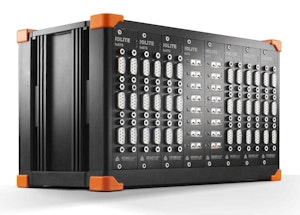

Технические характеристики системы IOLITE® R8
System | IOLITE R8 |
---|---|
Number of slots | 8 |
Synchronization | 2x SIRIUS® SYNC on L00B4f |
Sync Accuracy | < 200 ns within same EtherCAT chain < 2 µs using sync for multiple EtherCAT chains below 1 sample to Sirius® |
Dual EtherCAT® interface | |
Number of buses | Two (both with buffered DAQ or real time) |
Data Rate | Dual 100 Mbit bus speed |
Max. Throughput per Chain | From 6 MB/s to 10 MB/s |
Bus 1 connectors | 2x Lemo 1T |
Bus 2 connectors | 2x Ethernet RJ45 |
Minimum delay (analog input to EtherCAT® bus) | 70 µs |
Minimum EtherCAT® cycle time | 100 µs |
Power | |
Power supply | Dual redundant 9 - 48 V DC |
Power consumption | 8 W (Max: 9 W) |
Maximum input current | 10 A |
Environmental | |
Operating Temperature | -10 to 50 °C (-40 to 85 °C optional) (see 1) |
Storage Temperature | -40 to 85 °C |
Humidity | 5 to 95 % RH non-condensing at 50 °C |
IP rating | IP40 |
Shock | Shock (EN 60068-2-27:2009) |
Vibration | Random: Profile breakpoints: 10 Hz - 0.75 g²/Hz 150 Hz - 0.015 g²/Hz Profile RMS / Peak = 3.4 g / 10.2 g 4 hrs in each axis, 12 hrs total |
Physical | |
Dimensions | 266 x 169 x 139 mm |
Weight | 2.6 kg |
1) Extended operating temperature range depends of module configuration | |
Rev: 1668186000 |
Технические характеристики системы IOLITE® R8r
System | IOLITE R8r |
---|---|
Number of slots | 8 |
Synchronization | 2x SIRIUS® SYNC on L00B4f |
Sync Accuracy | < 200 ns within same EtherCAT chain < 2 µs using sync for multiple EtherCAT chains below 1 sample to Sirius® |
Dual EtherCAT® interface | |
Number of buses | Two (both with buffered DAQ or real time) |
Data Rate | Dual 100 Mbit bus speed |
Max. Throughput per Chain | From 6 MB/s to 10 MB/s |
Bus 1 connectors | 2x Lemo 1T |
Bus 2 connectors | 2x Ethernet RJ45 |
Minimum delay (analog input to EtherCAT® bus) | 70 µs |
Minimum EtherCAT® cycle time | 100 µs |
Power | |
Power supply | Dual redundant 9 - 48 V DC |
Power consumption | 2.2W |
Maximum input current | 10 A |
Environmental | |
Operating Temperature | -10 to 50 °C (-40 to 85 °C optional) (see 1) |
Storage Temperature | -40 to 85 °C |
Humidity | 5 to 95 % RH non-condensing at 50 °C |
IP rating | IP50 |
Shock | 50g 6ms, half sine 25x in all six directions (150x total) (-X, +X, -Y, +Y, -Z and +Z) |
Vibration | Random: Profile breakpoints: 24 Hz - 0.04 g²/Hz 60 Hz - 0.5 g²/Hz 100 Hz - 0.5 g²/Hz 240 Hz - 0.01 g²/Hz 2 kHz - 0.01 g²/Hz Profile RMS / Peak = 15 g / 45 g 2 hrs in each axis, 6 hrs total |
Physical | |
Dimensions | 321 x 155 x 151 mm |
Weight | 2.6 kg |
1) Extended operating temperature range depends of module configuration | |
Rev: 1668186000 |
Обзор многоканальных усилительных модулей IOLITE®
6xSTG | 8xSTGS | 8xLV | 8xLVe | 16xLV | 4xHV | 8xLA | 8xACC | 8xTH | 8xTH-HS | 8xRTD | 8xRTD-HS | 8xRTDp¹ | 32xDI | 32xDO¹ | 8xDI-4xDO¹ | 4xCNT | 16xAO² | 4xCAN-FD¹ | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Connectors | DSUB-9 | Terminal block, DSUB-37 | BNC, Terminal block | Terminal block, DSUB-37 | Terminal block | Banana plug | BNC, Terminal block | BNC | MINI TC | MINI TC | L0B6f, Terminal block | L0B6f, Terminal block | L0B6f | Terminal block | Terminal block | Terminal block | L1B7f | Terminal block | D-SUB9 |
Channels per module | 6x | 8x | 8x | 8x | 16x | 4x | 8x | 8x | 8x | 8x | 8x | 8x | 8x | 32x | 32x | 8x digital in, 4x digital out | 4x | 16x | 4x |
Data rate per channel IOLITE | 20 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 40 kS/s | 20 kS/s | 40 kS/s | 100 S/s | 100 S/s, upgradable to 10 kS/s | 100 S/s | 100 S/s, upgradable to 10 kS/s | 100 S/s | 20 kS/s | ✗ | ✗ | 20 kS/s | 1 kS/s | up to 5 Mbit/s |
Data rate per channel OBSIDIAN | 20 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 5 kS/s | 20 kS/s | 20 kS/s | 20 kS/s | 100 S/s | 100 S/s, upgradable to 5 kS/s | 100 S/s | 100 S/s, upgradable to 5 kS/s | not supported | 10 kS/s | not supported | not supported | 20 kS/s | 1 kS/s | not supported |
Resolution | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | 24-bit | digital | digital | digital | 100 MHz timebase 5 ppm, 20 ppm max | 16-bit | Digital |
Bandwidth | 0.49*fs | 0.433*fs | 0.49*fs | 0.433*fs | 0.433*fs | 0.433*fs | 0.49*fs | 0.433*fs | ✗ | 0.49*fs (max. 1 kHz) | ✗ | 0.49*fs (max. 1 kHz) | ✗ | ✗ | ✗ | ✗ | 10 MHz | ✗ | ✗ |
Voltage mode ranges | ±50 V, ±10 V, ±1 V, ±100 mV | ✗ | ±100 V, ±10 V (±10 V, ±1 V on request) | ±100 V, ±5 V | ±200 V, ±10 V | ±2000 V, ±1000 V, ±400 V, ±200 V | ✗ | ±10 V, ±5 V, ±1 V, ±200 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ±1 V, ±100 mV | ✗ | open collector | ✗ | TTL (Low: <0.8 V, High > 2 V) | ±10 V | ✗ |
Input coupling | DC, AC 1 Hz | DC | DC | DC | DC | DC | DC | DC, AC 1 Hz, AC 0.1 Hz | DC | DC | DC | DC | DC | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Sensor excitation | 0..24 V (unipolar), 0..12 V (bipolar), 0..44 mA (current), max. 0.55 W/ch | 1 V, 2 V, 5 V | ✗ | 0...24V (unipolar) | ✗ | ✗ | ✗ | 2 mA, 4 mA, 6 mA | ✗ | ✗ | 244 uA / 440 uA | 150 uA / 400 uA | 0.4 mA / 2 mA | ✗ | ✗ | ✗ | 5 V, 12 V | ✗ | 5 V (max. 240 mA), 12 V (max. 100 mA) |
Bridge connection | Full, ½, ¼ 350 Ω, ¼ 120 Ω 3-wire | Full, ½, ¼ 350 Ω, ¼ 120 Ω 3-wire, 4-wire (optional) | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Programmable shunt | 100 kΩ | 100 kΩ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
IEPE input | DSI-ACC | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Resistance | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | 1 kΩ, 10 kΩ | 1 kΩ, 10 kΩ | 100 Ω, 1 kΩ, 10 kΩ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Temperature (PTx) | DSI-RTD | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | PT100, 200, 500, 1000, 2000 | PT100, 200, 500, 1000, 2000 | PT100, 200, 500, 1000, 2000 | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Thermocouple | DSI-TH | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | K, J, T, R, S, N, E, C, B | K, J, T, R, S, N, E, C, B | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Current | 20 mA (internal shunt), DSI-5A, DSIi-10A, DSIi-20A | ✗ | ✗ | ✗ | ✗ | ✗ | ±20 mA, ±2 mA | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Potentiometer | ✓ | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
LVDT | DSI-LVDT | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Charge | DSI-CHG | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
TEDS | ✓ | ✓ (except DB37) | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Isolation voltage | Differential | Differential | 450 V | 250 V | 250 V | CATII 1000 V | 450 V | 250V | 1000 V | 1000 V | 1000 V | 1000 V | 150 V | 1000 V | 1000 V | 1000 V | ✗ | ✗ | CATII 150 V |
Isolation arrangement | None | Ch-GND | Ch-Ch & Ch-GND | Ch-GND | Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-Ch & Ch-GND | Ch-GND, groups of 8 ch. | Ch-GND, groups of 8 ch. | Ch-GND, group of 4/8 ch | Ch-GND | Ch-GND | Ch-Ch & Ch-GND |
Power consumption per module | Typ. 5.4 W, Max. 11.1 W | Typ. 2.7 W, Max. 5.1 W | Typ. 2.4 W, Max. 3.5 W | Typ. 3.3 W Max. 4.2 W | Typ. 3.4 W, Max. 4.2 W | Typ. 2.6 W Max. 3 W | Typ. 2.4 W, Max. 3.5 W | Typ. 4.5 W, Max. 6 W | 3.2 W | Typ. 2.6 W, Max. 3.4 W | Typ. 2.1 W, Max. 2.7 W | Typ. 3.5 W Max. 4.3 W | Typ. 2.1 W, Max. 2.7 W | Typ. 1.2 W, Max. 1.9 W | Typ. 1.2 W, Max. 2.0 W | Typ. 1.1 W, Max. 1.8 W | Typ. 1.9 W | Typ. 4.3 W, Max. 7.2 W | Typ. 2.5 W Max. 10.5 W |
Waterproof version | ✓ (IP67) | ✓ (IP67) | ✗ | ✓ (IP67) | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ (IP65) | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ (IP67) | ✗ | ✓ |
Passive PoE functionality | ✓³ | ✓ | ✓³ | ✓ | ✓ | ✓ | ✓³ | ✓ | ✓³ | ✓ | ✓³ | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✓ |
Advanced functions | Supports all strain types, high input range | Supports all strain types, low power consumption | High isolation, high input range | High isolation, high input range | High isolation, high input range | High isolation, high input range | High isolation, high input range | IEPE, supports TEDS, high channel density | High isolation, support of main TC types | High isolation, support of main TC types | High isolation | High isolation | Pulsed excitation, Cryogenic temperature range, High isolation | ✗ | Watchdog | High sink current, watchdog | Supercounter technology | Signal conditioning | CAN bus, Isolated |
¹ Not supported on the OBSIDIAN ² Third party ECAT master Data rate = 1 kS/s ³ Available for devices produced after September 2024. | |||||||||||||||||||
Rev: 1701068400 |
Технические характеристики IOLITE-8xACC
Analog inputs | |||||
---|---|---|---|---|---|
Input type | Voltage, IEPE | ||||
Number of channels | 8 | ||||
ADC Type | 24-bit delta-sigma with anti-aliasing filter | ||||
Sampling Rate IOLITE | Simultaneous 40 kS/sec per channel (software-selectable) | ||||
Sampling Rate OBSIDIAN | Simultaneous 20 kS/sec per channel (software-selectable) | ||||
Voltage Mode | |||||
Ranges | ±10 V | ±5 V | ±1 V | ±0.2 V | |
Input Accuracy | DC | ±0.02 % of reading ±0.02 % of range | |||
Noise floor, Typ. | 10 kS/s | -116 dB | -116 dB | -114 dB | -105 dB |
Dynamic Range, Typ. | 10 kS/s | -151 dB | -151 dB | -150 dB | -140 dB |
CMR, Typ. @ 40 kS/s | 0 dBFS sine wave @ 50 Hz | 113 dB | 113 dB | 111 dB | 102 dB |
0 dBFS sine wave @ 400 Hz | 112 dB | 112 dB | 110 dB | 102 dB | |
0 dBFS sine wave @ 1 kHz | 109 dB | 108 dB | 108 dB | 102 dB | |
THD, Typ. | 40 kS/s, -1 dBFS sine wave @ 1 kHz | -104 dB | -104 dB | -104 dB | -102 dB |
SFDR, Typ. | 40 kS/s, -1 dBFS sine wave @ 1 kHz | 106 dB | 106 dB | 99 dB | 96 dB |
Gain Linearity | < 0.02 % | ||||
Gain Drift | Typ. 5 ppm/K (Max. 15 ppm/K) | ||||
Offset Drift | Typ. 0.5 μV/K + 0.5 ppm of range/K (Max. 2 μV/K + 2 ppm of range/K) | ||||
Channel Cross talk, Typ. @ 1 kHz | -140 dB | -140 dB | -140 dB | -130 dB | |
Input Coupling | DC, AC 0.1 Hz, 1 Hz | ||||
Input Impedance | 1 MΩ | ||||
Overvoltage Protection | In+ to In-: 50 V continuous, 200 V peak (10 msec) | ||||
Isolation voltage | 250 Vpeak channel to ground | ||||
Analog input performance | |||||
Sampling rate | SR < 5 kS/s | SR ≥ 5 kS/s | |||
Bandwidth (-3 dB) | 0.49*fs | 0.433*fs | |||
Alias-free Bandwidth | DC to 0.44*fs | DC to 0.499*fs | |||
Alias Rejection | -105 dB | ||||
Delay Through ADC | 34 / fs | ||||
Oversampling | 128 | ||||
IEPE input | |||||
Excitation | 2 mA, 4 mA, 6 mA | ||||
Compliance voltage | 28 V | ||||
Output Impedance | >50 kΩ | ||||
Sensor detection | Shortcut: <4 V; Open: >19 V | ||||
Additional Specifications | |||||
Rack | IOLITEr-8xACC | ||||
Input connector | BNC | ||||
TEDs support | IEPE mode only (Class 1) | ||||
Power supply | 9 - 48 V DC | ||||
Power Consumption | Analog input only: Typ. 3.6 W (Max. 4 W) IEPE: Typ. 4.8 W @ 4 mA (Max. 6 W @ 6 mA) | ||||
Weight | 320 g | ||||
Slice Dimensions | 128.4 x 127.6 x 30.1 mm | ||||
Additional Specifications | |||||
Modular | IOLITE-8xACC | ||||
Input connector | BNC | ||||
TEDs support | IEPE mode only (Class 1) | ||||
Power supply | 9 - 48 V DC | ||||
Power Consumption | Analog input only: Typ. 3.7 W (Max. 4.5 W) IEPE: Typ. 4.9 W @ 4 mA (Max. 6.4 W @ 6 mA) | ||||
Weight | 575 g | ||||
Slice Dimensions | 136.75 x 127.2 x 35.0 mm | ||||
Rev: 1681991028 |
Технические характеристики IOLITE-6xSTG
Analog inputs | ||||
---|---|---|---|---|
Input type | Voltage Full / half / quarter bridge strain Current Potentiometer Resistance | |||
Number of channels | 6 | |||
ADC Type | 24-bit SAR with anti-aliasing filter | |||
Sampling Rate | Simultaneous 20 kS/s per channel (software-selectable) | |||
Voltage Mode | ||||
Ranges | ±50 V | ±10 V | ±1 V | ±100 mV |
Input Accuracy | ±0.03 % of reading, ±0.02 % of range, ±0.1 mV | |||
Typical Dynamic Range @ 10 kS | -100 dB | -110 dB | -130 dB | -145 dB |
Typical Noise floor @ 10 kS | -103 dB | -97 dB | -103 dB | -94 dB |
Typical CMR @ 400 Hz / 1 kHz | 71 dB / 66 dB | 72 dB / 66 dB | 96 dB / 88 dB | 96 dB / 87 dB |
Gain Drift | Typical 10 ppm/K (max. 40 ppm/K) | |||
Offset Drift | Typical 0.3 μV/K + 5 ppm of range/K, max 2 μV/K + 10 ppm of range/K | |||
Gain Linearity | < 0.02% | |||
Input Coupling | DC, AC 1Hz | |||
Input Impedance | Range ≥ 10 V; 1 MΩ between IN+ and IN- Range < 10 V: 20 MΩ | |||
Overvoltage Protection | In+ to In-: 50 V continuous, 200 V peak (10 msec) | |||
Current Mode | ||||
Ranges | 20 mA | 2 mA | ||
Input Accuracy | ±0.03 % of reading, ±0.02 % of range, ±2.1 μA | |||
Internal Shunt Resistor | 50 Ω | |||
Analog input performance | ||||
Bandwidth (-3 dB) | 0.49*fs | |||
Alias-free Bandwidth | DC to 0.453*fs | |||
Alias Rejection | -100 dB (all sample rates) | |||
Delay Through ADC | 37 / fs | |||
Oversampling | 32 | |||
Excitation Voltage | ||||
Excitation Voltage | Free programmable (16-bit DAC) | |||
Predefined Levels | Bipolar: 0, 1, 2, 5, 10 and 12 VDC Unipolar: 0, 2, 5, 10, 15, 24 VDC | |||
Accuracy | ±0.05 % ±2 mV | |||
Drift | ±50 ppm/K ±100 μV/K | |||
Stability 10 % to 90 % Load | < 0.01 % | |||
Current Limit | 42 mA (550 mW max. power) | |||
Protection | Continuous short to ground | |||
Excitation Current | ||||
Excitation Current | Free programmable (16-bit DAC) | |||
Predefined Levels | 0, 2, 4, 8, 16, 44 mA | |||
Accuracy | ±0.1 % ±2 μA (<10 mA), ±0.5 % ±5 μA (>10 mA) | |||
Bridge measurement | ||||
Bridge Connection Types | full bridge strain, ½ bridge strain, ¼ bridge strain (3-wire) | |||
Ranges | 2…1000 mV/V free programmable | |||
Internal Bridge Completion | ½ bridge and ¼ bridge 120 and 350 Ω | |||
Bridge Completion Accuracy | 0.05 %; TCR: 5 ppm/K (others on request) | |||
Internal Shunt Resistor | 100 kΩ (others on request) | |||
Shunt Resistor Accuracy | 0.05 %; TCR: 10 ppm/K (others on request) | |||
Input Short, Sensor Offset Adjust | Software-selectable | |||
Additional Specifications | ||||
Input connectors | DSUB-9 | |||
TEDS support | Standard + DSI adapters | |||
Power supply | 9 - 48 V DC | |||
Power Consumption | 5.4 W, Max. 11.1 W (7.9 W 120 Ω @ 5 V load, 8.8 W 350 Ω @ 10 V load) | |||
Weight | 340 g | |||
Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |||
Rev: 1620029200 |
Технические характеристики IOLITE-8xSTGS
Analog inputs | IOLITE 8xSTGS | |||
---|---|---|---|---|
Input type | Full / half / quarter bridge strain (3-wire), Potentiometer | |||
Number of channels | 8 | |||
ADC Type | 24-bit oversampled sigma-delta with anti-aliasing filter | |||
Sampling Rate | Simultaneous 20 kS/s per channel (software-selectable) | |||
Analog input performance (see 1) | ||||
Ranges | 1 V | 0.1 V | 0.02 V | |
Gain accuracy | 0.02 % of reading | 0.02 % of reading | 0.02 % of reading | |
Offset accuracy | 210 uV | 30 uV | 14 uV | |
Offset Accuracy after Balance Amplifier | 21 uV | 3 uV | 1.4 uV | |
Typical Noise floor @ 10 kS/s / 1 kS/s / 100 S/s | -107 / -114 / -122 dB | -99 / -107 / -117 dB | -87 / -96 / -108 dB | |
Typical Dynamic Range @ 10 kS/s / 1 kS/s / 100 S/s | -132 / -139 / -145 dB | -122 / -132 / -139 dB | -112 / -120 / -130 dB | |
Typ. Crosstalk @ 1 kHz | -120 dB | -126 dB | -114 dB | |
Typ. CMR @ 50 Hz / 400 Hz / 1 kHz | 76 / 74 / 73 dB | 97 / 90 / 84 dB | 108 / 91 / 83 dB | |
Gain Drift | Typical 10 ppm/K (max. 20 ppm/K) | |||
Offset Drift | Typical 0.03 μV/K + 2.5 ppm of range/K, max 0.1 μV/K + 9 ppm of range/K | |||
Gain Linearity | < 0.01 % | |||
Input Coupling | DC | |||
Input Impedance | >10 MΩ | |||
Overvoltage Protection | In+ to In-: 6 V continuous | |||
Bandwidth (-3 dB) | 0.433*fs (0.49*fs < 5 kS/s) | |||
Alias-free Bandwidth | DC to 0.499*fs (DC to 0.44*fs @ < 5 kS/s) | |||
Alias Rejection | -105 dB (all sample rates) | |||
Delay Through ADC | 34 / fs | |||
Oversampling | 128 | |||
Excitation Voltage | ||||
Excitation Voltage | Unipolar: 1 V, 2 V, 5 V (see 2) | |||
Excitation Accuracy | ±3 % of set ±50 mV | |||
Sense Accuracy | ±0.02 % of reading ±0.25 mV | |||
Sense Drift | Typical 10 μV/K + 10 ppm of reading/K, max 20 μV/K + 20 ppm of reading/K | |||
Current Limit | 42 mA | |||
Protection | Continuous short to ground | |||
Bridge measurement | ||||
Bridge Connection Types | full bridge strain, ½ bridge strain, ¼ bridge strain (3-wire) | |||
Ranges | 2 mV/V ... 1000 mV/V free programmable (software ranges) | |||
Accuracy | Range \ Excitation | 1 V | 2 V | 5 V |
200 mV/V | ±0.035 % of reading ±210 μV/V | ±0.028 % of reading ±105 μV/V | ±0.025 % of reading ±42 μV/V | |
20 mV/V | ±0.027 % of reading ±14 μV/V | ±0.027 % of reading ±15 μV/V | ±0.024 % of reading ±6 μV/V | |
2 mV/V | ±0.027 % of reading ±14 μV/V | ±0.024 % of reading ±7 μV/V | ±0.022 % of reading ±2.8 μV/V | |
Internal Bridge Completion | ¼ bridge 120 Ω and 350 Ω | |||
Bridge Completion Accuracy | ±125 µV/V, TCR: 5 ppm/K (others on request) | |||
Internal Shunt Resistor | 100 kΩ software selectable to SNS+ or SNS- and In+ or In- | |||
Shunt Resistor Accuracy | 0.05 %; TCR: 10 ppm/K (others on request) | |||
Input Short, Sensor Offset Adjust | Software-selectable | |||
Additional Specifications | ||||
Rack | IOLITEr-8xSTGS | |||
Input connectors | Terminal Block Weidmueller SL 2.50-04 | DSUB-37 | ||
TEDS support | Available | Not available | ||
Power supply | 9 - 48 V DC | |||
Power Consumption | Typ. 2.7 W Max. 5.1 W (120 Ω @ 5 V load) | |||
Weight | 340 g | 330 g | ||
Slice Dimensions | 128.4 x 118.4 x 30.14 mm | |||
Additional Specifications | ||||
Modular | IOLITE-8xSTGS | |||
Input connectors | Terminal Block Weidmueller SL 2.50-04 | DSUB-37 | ||
TEDS support | Available | Not available | ||
Power supply | 9 - 48 V DC | |||
Power Consumption | Typ. 2.6 W; Max. 4.7 W (120 Ω @ 5 V load) | |||
Weight | 570 g | 560 g | ||
Slice Dimensions | 136.75 x 115.0 x 35.0 mm | |||
Rev: 1697547600 | ||||
1) Voltage ranges are describing the input for the bridge mode and are not supported as voltage mode. | ||||
2) Ratiometric method |
Технические характеристики IOLITE 8xSTGS (v2)
Analog inputs | IOLITE STGSv2 | |||
---|---|---|---|---|
Input type | Full / half / quarter bridge strain (3-wire, 4-wire), Potentiometer | |||
Number of channels | 8 | |||
ADC Type | 24-bit oversampled sigma-delta with anti-aliasing filter | |||
Sampling Rate | Simultaneous 20 kS/s per channel (software-selectable) | |||
Voltage Mode | ||||
Ranges | ±1 V | ±100 mV | ±20 mV | |
Gain accuracy | 0.02 % of reading | 0.02 % of reading | 0.02 % of reading | |
Offset accuracy | 210 uV | 30 uV | 14 uV | |
Typical Noise floor @ 10 kS/s / 1 kS/s / 100 S/s | -107 / -114 / -122 dB | -99 / -107 / -117 dB | -87 / -96 / -108 dB | |
Typical Dynamic Range @ 10 kS/s / 1 kS/s / 100 S/s | -131/ -139/ -144 dB | -123/ -133/ -141 dB | -111 / -123 / -131 dB | |
Typ. Crosstalk @ 1 kHz | -137dB | -131dB | -121dB | |
Typ. CMR @ 50 Hz / 400 Hz / 1 kHz | 81 / 80 / 77 dB | 100 / 92 / 84 dB | 110 / 91 / 84 dB | |
Gain Drift | Typical 10 ppm/K (max. 20 ppm/K) | |||
Offset Drift | Typical 0.03 μV/K + 2.5 ppm of range/K, max 0.1 μV/K + 9 ppm of range/K | |||
Gain Linearity | < 0.01 % | |||
Input Coupling | DC | |||
Overvoltage Protection | In+ to In-: 6 V continuous | |||
Analog input performance | ||||
Bandwidth (-3 dB) | 0.433*fs (0.49*fs < 5 kS/s) | |||
Alias-free Bandwidth | DC to 0.499*fs (DC to 0.44*fs @ < 5 kS/s) | |||
Alias Rejection | -105 dB (all sample rates) | |||
Delay Through ADC | 34 / fs | |||
Oversampling | 128 | |||
Excitation Voltage | ||||
Excitation Voltage | Unipolar: 1 V, 2 V, 5 V (see 1) | |||
Excitation Accuracy | ±3 % of set ±50 mV | |||
Sense Accuracy | ±0.02 % of reading ±0.25 mV | |||
Sense Drift | Typical 10 μV/K + 10 ppm of reading/K, max 20 μV/K + 20 ppm of reading/K | |||
Current Limit | 42 mA | |||
Protection | Continuous short to ground | |||
Bridge measurement | ||||
Bridge Connection Types | full bridge strain, ½ bridge strain, ¼ bridge strain (4-wire), ¼ bridge strain (3-wire) | |||
Ranges | 2 mV/V ... 1000 mV/V free programmable (software ranges) | |||
Accuracy | Range \ Excitation | 1 V | 2 V | 5 V |
200 mV/V | ±0.035 % of reading ±210 μV/V | ±0.028 % of reading ±105 μV/V | ±0.025 % of reading ±42 μV/V | |
20 mV/V | ±0.027 % of reading ±14 μV/V | ±0.027 % of reading ±15 μV/V | ±0.024 % of reading ±6 μV/V | |
2 mV/V | ±0.027 % of reading ±14 μV/V | ±0.024 % of reading ±7 μV/V | ±0.022 % of reading ±2.8 μV/V | |
Internal Bridge Completion | ¼ bridge 120 Ω and 350 Ω | |||
Bridge Completion Accuracy | ±125 µV/V, TCR: 5 ppm/K (others on request) | |||
Internal Shunt Resistor | 100 kΩ software selectable to SNS+ or SNS- and In+ or In- | |||
Shunt Resistor Accuracy | 0.05 %; TCR: 10 ppm/K (others on request) | |||
Input Short, Sensor Offset Adjust | Software-selectable | |||
Internal switch configurations | Bridge type | Selectable connections | Internal SW on: | Additonal compensation |
Full | 6 or 4 Wires | 4 wires SNS + and EXC + & SNS- and EXC - | ||
Half | 5 or 3 Wires | 3 wires SNS + and EXC + & SNS- and EXC - | ||
QB 3W | SNS + and EXC + & SNS- and EXC - | SNS + and EXC + & SNS- and EXC - | Lead wire compensation available | |
QB 4W | SNS + and EXC + | SNS + and EXC + | ||
Sensor current measurement | ||||
Bridge configuration | Full / Half | QB | ||
Current measuring line | EXC+ line | R Line | ||
Current limit | 50 mAdc | |||
Resolution | 0.1 mAdc | |||
Additional math caculus | Resistance, Power | |||
Sample rate | 1 Hz | |||
Additional Specifications | ||||
Rack | IOLITEr-8xSTGSv2 | |||
Input connectors | Terminal block, DSUB-37 | |||
TEDS support | Available for Terminal block | |||
Power supply | 9 - 48 V DC | |||
Power Consumption | Typ. 3.1 W Max. 6 W (120 Ω @ 5 V load) | |||
Weight | 340 g | |||
Slice Dimensions | 128.4 x 118.4 x 30.14 mm | |||
Additional Specifications | ||||
Modular | IOLITE-8xSTGSv2 | |||
Input connectors | Terminal block, DSUB-37 | |||
TEDS support | Available for Terminal block | |||
Power supply | 9 - 48 V DC | |||
Power Consumption | Typ. 3.1 W Max. 6 W (120 Ω @ 5 V load) | |||
Weight | 570 g | |||
Slice Dimensions | 136.75 x 115.0 x 35.0 mm | |||
Rev: 1671786000 | ||||
1) Ratiometric method |
Технические характеристики IOLITEi-8xLV
Analog input | ||
---|---|---|
Input type | Isolated voltage | |
Number of channels | 8 | |
ADC Type | 24-bit oversampled SAR | |
Sampling Rates | Simultaneous 20k, 10k, 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
Voltage Mode | ||
Ranges | ±100 V | ±10 V |
Accuracy | ±0.03 % of reading ±50 mV | ±0.03 % of reading ±5 mV |
Typ. SNR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 91 dB | 90 dB |
Typical noise floor @ 10 kS | -105 dB | -98 dB |
Typ. THD (10 kS/s, -1 dBFS sine wave @ 1 kHz) | -91 dB | -91 dB |
Typ. SFDR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 93 dB | 92 dB |
Typical IMR @ 400 Hz / 1 kHz | 98 dB / 90 dB | 83 dB / 75 dB |
Gain Drift | Typical 10 ppm/K, Max. 40 ppm/K | |
Offset Drift | Typical 2 ppm of range/K, Max. 10 ppm of range/K | |
Gain Linearity | < 0.02 % | |
Input Coupling | DC | |
Input Impedance | 1 MΩ | |
Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | |
Analog input performance | ||
Bandwidth (-3 dB) | 0.49*fs | |
Alias-free Bandwidth | DC to 0.453*fs | |
Alias Rejection | -100 dB (all sample rates) | |
Delay Through ADC | 37 / fs | |
Oversampling | 32 | |
Additional Specifications | ||
Rack | IOLITEir-8xLV | |
Input Connectors | BNC | Terminal block 2 pole |
Power supply | 9 - 48 V DC | |
Isolation Voltage | 450 Vpeak channel to ground & channel to channel | |
Power Consumption | Typ. 2.4 W, Max. 3.5 W | |
Weight | 310 g | 270 g |
Slice Dimensions | 128.4 x 127.6 x 30.1 mm | |
Additional Specifications | ||
Modular | IOLITEi-8xLV | |
Input Connectors | BNC | Terminal block 2 pole |
Power supply | 9 - 48 V DC | |
Isolation Voltage | 450 Vpeak channel to ground & channel to channel | |
Power Consumption | Typ. 2.7 W, Max. 3.3 W | |
Weight | 545 g | 505 g |
Slice Dimensions | 137 x 115.0 x 35.0 mm | |
Rev: 1681991028 |
Технические характеристики IOLITE-8xLVe
Inputs | |||
---|---|---|---|
Input types | Voltage, Potentiometer, Current (Ext. shunt) | ||
ADC Type | 24-bit delta-sigma with anti-aliasing filter (-3 dB @ 160 kHz) Butterworth 2nd order | ||
Sampling Rate | Simultaneous 20 kS/s | ||
Voltage Mode | |||
Ranges | ±100 V | ±5 V | |
Accuracy | ±0.03 % of reading ±0.02 % of range | ||
Typ. Noise floor @ 10 kS/sec | -114 dB | -99 dB | |
Typ. THD (10 kS/s, -1 dBFS sine wave @ 1 kHz) | - | -103 dB | |
Typ. SFDR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | - | 114 dB | |
Typ. CMR @ 50 Hz / 400 Hz / 1 kHz | 100 dB / 85 dB / 85 dB | 96 dB / 88 dB / 88 dB | |
Gain Linearity | <0.02 % | <0.01 % | |
Gain Drift | Typical 5 ppm/K, Max. 20 ppm/K | ||
Offset Drift | Typical 5 ppm of range/K, Max. 10 ppm of range/K | ||
Channel Crosstalk | -130 dB | ||
Input Coupling | DC | ||
Input Impedance | 800 kΩ (between In+ and In-) | ||
Max. common mode voltage | ±200 V | ||
Input Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | ||
Isolation | 250 V functional isolation (channel to power supply ground) | ||
Analog input performance | |||
Bandwidth (-3 dB) | 0.433*fs | ||
Alias-free Bandwidth | DC to 0.499*fs (DC to 0.44*fs @ < 5 kS/s) | ||
Alias Rejection | -105 dB (all sample rates) | ||
Delay Through ADC | 34 / fs | ||
Oversampling | 128 | ||
Excitation Voltage | |||
Excitation voltage | Unipolar 2 ... 24V DC | ||
Current limit | 2.8 W max. power per channel, 22.4 W per slice | ||
Excitation accuracy | 0.05 % ± 2 mV | ||
Drift | ±20 ppm/K ± 60 μV/K | ||
Stability 10 % to 90 % load | < 0.06 % @ 5 V exc (< 0.01 % @ 24 V exc) | ||
Noise @ 10 V / 350 Ω | <150 μVrms @ 10 kS | ||
Line regulation over 10 Ω of change | < 0.04 % @ 120 Ω load | ||
Protection | Continuous short to ground | ||
Additional Specifications | |||
Rack | IOLITEr-8xLVe | ||
Input connector | Terminal block | DSUB-37 | |
TEDS support | Yes | ||
Power supply | 9 - 48 V DC | ||
Power consumption | Analog input only: Typ. 3.3 W (Max. 4.2 W) With Excitation: 6.9 W 120 Ω load @ 5 V, 38 W 120 Ω load @ 20 V | ||
Weight | 310 g | 300 g | |
Slice Dimensions | 128.4 x 118.4 x 30.14 mm | ||
Additional Specifications | |||
Modular | IOLITE-8xLVe | ||
Input connector | Terminal block | DSUB-37 | |
TEDS support | Yes | ||
Power supply | 9 - 48 V DC | ||
Power consumption | Analog input only: Typ. 3.3 W (Max. 4.2 W) With Excitation: 6.9 W 120 Ω load @ 5 V, 38 W 120 Ω load @ 20 V | ||
Weight | 550 g | 540 g | |
Slice Dimensions | 136.75 x 115.0 x 35.0 mm | ||
Rev.: 1721714400 |
Технические характеристики IOLITE-16xLV
Analog input | ||
---|---|---|
Input type | Voltage | |
Number of channels | 16 | |
ADC Type | 24-bit oversampled sigma-delta | |
Sampling Rates IOLITE | Simultaneous 20k, 10k, 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
Sampling Rates OBSIDIAN | Simultaneous 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
Voltage Mode | ||
Ranges | ±200 V | ±10 V |
Accuracy | ±0.03 % of reading ±40 mV | ±0.03 % of reading ±2 mV |
Typ. SNR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 103 dB | 101 dB |
Typical noise floor @ 10 kS | -115 dB | -105 dB |
Typ. THD (10 kS/s, -1 dBFS sine wave @ 1 kHz) | -93 dB | -108 dB |
Typ. SFDR (10 kS/s, -1 dBFS sine wave @ 1 kHz) | 95 dB | 111 dB |
Typical CMR @ 400 Hz / 1 kHz | 88 dB / 87 dB | 82 dB / 80 dB |
Crosstalk @ 1 kHz | -118 dB | -120 dB |
Gain Drift | Typical 10 ppm/K, Max. 40 ppm/K | |
Offset Drift | Typical 2 ppm of range/K, Max. 5 ppm of range/K | |
Gain Linearity | < 0.01 % | |
Input Coupling | DC | |
Input Impedance | 800 kΩ | |
Max. common mode voltage | ±200 V | |
Overvoltage Protection | In+ to In-: 200 V continuous, 350 Vpeak (100 ms) | |
Analog input performance | ||
Bandwidth (-3 dB) | 0.433*fs | |
Alias-free Bandwidth | DC to 0.45*fs (DC to 0.499*fs @ 20 kS/s) | |
Alias Rejection | -105 dB (all sample rates) | |
Delay Through ADC | 34 / fs | |
Oversampling | 128 | |
Additional Specifications | ||
Rack | IOLITEr-16xLV | |
Input Connectors | Terminal block 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 | |
Power supply | 9 - 48 V DC | |
Isolation Voltage | 250 V functional isolation (channel to power supply ground) | |
Power Consumption | Typ. 3.4 W (Max. 3.9 W) | |
Weight | 230 g | |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |
Modular | IOLITE-16xLV | |
Input Connectors | Terminal block 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 | |
Power supply | 9 - 48 V DC | |
Isolation Voltage | 250 V functional isolation (channel to power supply ground) | |
Power Consumption | Typ. 3.6 W (Max. 4.5 W) | |
Weight | 530g | |
Slice Dimensions | 136.75 x 115.0 x 35.0 mm | |
Rev: 1685344484 |
Технические характеристики IOLITEi-4xHV
Analog inputs | IOLITEi 4xHV | |||
---|---|---|---|---|
Input type | Voltage | |||
Number of channels | 4 | |||
ADC Type | 24-bit delta-sigma with anti-aliasing filter | |||
Sampling Rate IOLITE | Simultaneous 40 kS/s per channel (software-selectable) | |||
Sampling Rate OBSIDIAN | Simultaneous 20 kS/sec per channel (software-selectable) | |||
Anti-aliasing filter | -3 dB @ 150 kHz (Butterworth 3rd order) | |||
Voltage mode | ||||
Ranges | ±2000 V | ±1000 V | ±400 V | ±200 V |
Input Accuracy | ±0.03 % of reading ±0.02 % of range | |||
Typ. Dynamic Range @ 10 kS | -137 dB | -137 dB | -137 dB | - 132 dB |
Typ. Noise floor @ 10 kS | -113 dB | -112 dB | -109 dB | -104 dB |
Typ. THD (40 kS/s, -6 dBFS sine wave @ 1 kHz) | N/A | N/A | N/A | -103 dB |
Typ. CMR @ 20 kS/s | 80 dB @ 50 Hz, 64 dB @ 400 Hz | |||
Gain Drift | Typical 10 ppm/K, max. 25 ppm/K | |||
Offset Drift | Typical 100 μV/K + 2 ppm of range/K, max 200 μV/K + 4 ppm of range/K | |||
Gain Linearity | < 0.02% (2000 V range), < 0.01% (other ranges) | |||
Input Coupling | DC | |||
Input Impedance | 10 MΩ | |||
Overvoltage protection | CAT II 1000 V | |||
Analog input performance | ||||
Bandwidth (-3 dB) | 0.433*fs (0.49*fs < 5 kS/s) | |||
Alias-free Bandwidth | DC to 0.499*fs (DC to 0.45*fs @ < 5 kS/s) | |||
Alias Rejection | -105 dB (all sample rates) | |||
Delay Through ADC | 34 / fs | |||
Oversampling | 128 | |||
Additional Specifications | ||||
Rack | IOLITEir-4xHV | |||
Input connector | 4mm safety banana jack | |||
Power supply | 9 - 48 V DC | |||
Power Consumption | Typ. 2.6 W (max. 3 W) | |||
Weight | 310 g | |||
Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |||
Additional Specifications | ||||
Modular | IOLITEi-4xHV | |||
Input connector | 4mm safety banana jack | |||
Power supply | 9 - 48 V DC | |||
Power Consumption | Typ. 2.6 W (max. 3 W) | |||
Weight | 575 g | |||
Slice Dimensions | 136.75 x 127.2 x 35.0 mm | |||
Rev: 1701151200 |
Технические характеристики IOLITEi-8xLA
Analog input | ||
---|---|---|
Input type | Isolated current | |
Number of channels | 8 | |
ADC Type | 24-bit oversampled SAR | |
Sampling Rates | Simultaneous 20k, 10k, 5k, 2k, 1k, 500, 200, 100 S/s (software-selectable) | |
Current Mode | ||
Ranges | ±20 mA | ±2 mA |
Accuracy | ±0.05 % of reading ±10 µA | ±0.05 % of reading ±2 µA |
Typical noise floor @ 10 kS/sec | -100 dB | -100 dB |
Crosstalk (20 kS/sec, -1 dBFS @ 1 kHz) | -121 dB | -128 dB |
Gain Drift | Typical 10 ppm/K, Max. 40 ppm/K | |
Offset Drift | Typical 5 ppm of range/K, Max. 15 ppm of range/K | |
Gain Linearity | < 0.05 % | |
Input Coupling | DC | |
Input Impedance | 50 Ω | |
Overvoltage Protection | In+ to In-: 30 V continuous | |
Overcurrent Protection | In+ to In-: 70 mA continuous | |
Analog input performance | ||
Bandwidth (-3 dB) | 0.49 fs | |
Alias-free Bandwidth | DC to 0.453 fs | |
Alias Rejection | -100 dB (all sample rates) | |
Delay Through ADC | 37 / fs | |
Oversampling | 32 | |
Additional Specifications | ||
Power supply | 9 - 48 V DC | |
Isolation Voltage | 450 Vpeak channel to ground & channel to channel | |
Power Consumption | Typ. 2.8 W, Max. 3.5 W | |
Input Connectors | BNC | Terminal block 2 pole |
Weight | 310 g | 270 g |
Slice Dimensions | 128.4 x 127.6 x 30.1 mm | 128.4 x 115.4 x 30.1 mm |
Rev: 1632117100 |
Технические характеристики IOLITEi-8xTH
Inputs | ||
---|---|---|
Input type | Isolated universal thermocouple and voltage | |
Number of channels | 8 | |
ADC Type | 24-bit delta-sigma | |
Sampling Rate | Simultaneous 100 S/s | |
Voltage Mode | ||
Ranges | ±1 V | ±100 mV |
Input Accuracy | ±0.02 % of reading ±100 μV | ±0.02 % of reading ±10 μV |
Typical Noise floor @ 10/100 S/sec | -114 dB / -105 dB | -109 dB / -100 dB |
Gain Drift | Typical 4 ppm/K (max. 10 ppm/K) | Typical 4 ppm/K (max. 10 ppm/K) |
Offset Drift | Typical 0.05 μV/K (max. 0.2 μV/K) | Typical 0.05 μV/K (max. 0.2 μV/K) |
Gain Linearity | <0.01% | <0.01% |
Input Coupling | DC | DC |
Input Impedance | 100 MΩ | 100 MΩ |
Temperature Mode | ||
Thermocouple Types | K, J, T, R, S, N, E, C, B | |
Accuracy | ±0.02 % of reading ±0.5 °C ±10 μV | |
Sampling rates | 10, 20, 40, 80, 100 S/sec | |
Typical Noise | 0.007 °C RMS@Type K @ 10 S/sec 0.02 °C RMS@Type K @ 100 S/sec | |
Additional Specifications | ||
Input connectors | Mini Thermocouple connector (copper) | |
Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
Power supply | 9 - 48 V DC | |
Power consumption | 3.2 W | |
Weight | 230 g | |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |
Rev: 1578677400 |
Технические характеристики IOLITEi-8xTH-HS
Inputs | ||
---|---|---|
Input type | Isolated universal thermocouple and voltage | |
Number of channels | 8 | |
ADC Type | 24-bit delta-sigma | |
Sampling Rate IOLITE | Simultaneous 10, 20, 40, 50, 80, 100, 200, 500, 1k, 2k, 5k, 10k S/s (optional) | |
Sampling Rate OBSIDIAN | 100 S/s | |
Voltage Mode | ||
Ranges | ±1 V | ±100 mV |
Input Accuracy | ±0.02 % of reading ±50 μV | ±0.02 % of reading ±7 μV |
Typical Noise Floor @ 10 / 100 / 1k / 10k S/s | -130 dB / -120 dB / -110 dB / -104 dB | -120 dB / -110 dB / -100 dB / -90 dB |
Offset Drift | Typ. 0.05 μV/K (Max. 0.2 μV/K) | Typ. 0.01 μV/K (Max. 0.1 μV/K) |
Gain Drift | Typ. 2 ppm/K (Max. 10 ppm/K) | |
Gain Linearity | < 0.007% | |
Input Coupling | DC | |
Input Impedance | 100 MΩ | |
Temperature Mode | ||
Thermocouple Types | K, J, T, R, S, N , E, C, B | |
Accuracy | ±0.02 % of reading ±0.5 °C ±7 μV | |
Typical Noise | 0.002 °C RMS @ Type K @ 10 S/s 0.006 °C RMS @ Type K @ 100 S/s 0.02 °C RMS @ Type K @ 1 kS/s 0.05 °C RMS @ Type K @ 10 kS/s | |
Additional Specifications | ||
Rack | IOLITEir-8xTH-HS | |
Input connectors | Mini Thermocouple connector (copper) | |
Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
Power supply | 9 - 48 V DC | |
Power consumption | Typ. 2.6 W (Max. 3.4 W) | |
Weight | 290 g | |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm | |
Additional Specifications | ||
Modular | IOLITEi-8xTH-HS | |
Input connectors | Mini Thermocouple connector (copper) | |
Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
Power supply | 9 - 48 V DC | |
Power consumption | Typ. 2.6 W (Max. 3.8 W) | |
Weight | 555 g | |
Slice Dimensions | 137 x 115.0 x 35.0 mm | |
Rev: 1701151200 |
Технические характеристики IOLITEi-8xRTD
Analog inputs | ||
---|---|---|
Input types | Voltage, Resistance or Universal PTxxx inputs | |
Number of channels | 8 | |
ADC Type | 24-bit delta-sigma | |
Sampling Rate | Simultaneous 100 S/s | |
Voltage Mode | ||
Ranges | ±1 V | ±100 mV |
Input Accuracy | ±0.02 % of reading ±0.01 % of range ±10 μV | |
Typical Noise floor @ 10/100 s/sec | -117 dB / -107 dB | -111 dB / -101 dB |
Gain Drift | Typical 4 ppm/K (max. 10 ppm/K) | |
Offset Drift | Typical 0.05 μV/K (max. 0.2 μV/K) | |
Gain Linearity | < 0.01 % | |
Input Coupling | DC | |
Input Impedance | 1 MΩ | |
Temperature Mode | ||
Types | PT100, PT200, PT500, PT1000, PT2000 | |
Measurement range | -200 °C to +850 °C | |
Accuracy | ±0.05 % of reading ±0.2 °C | |
Temperature Drift | typ. ±5 ppm/K (max. ±12 ppm/K ±0.003 °C/K) | |
Input Connection | 3-wire or 4-wire | |
Resistance Mode | ||
Ranges | 0…10 kΩ | 0…1 kΩ |
Accuracy | ±0.02 % of reading ±0.01 % of range | |
Input Connection | 3-wire or 4-wire | |
Additional Specifications | ||
Rack | IOLITEir-8xRTD | |
Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
Power supply | 9 - 48 V DC | |
Power consumption | Typ. 2.1 W, Max. 2.7 W | |
Weight | 325 g | 225 g |
Dimensions | 128.4 x 115.4 x 30.1 mm | |
Modular | IOLITEi-8xRTD | |
Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
Power supply | 9 - 48 V DC | |
Power consumption | Typ. 3.5 W (Max. 4.7 W) | |
Weight | 585 g | 485 g |
Dimensions | 137 x 115.0 x 35.0 mm | |
Rev: 1727427136 |
Технические характеристики IOLITEi-8xRTD-HS
Analog inputs | ||
---|---|---|
Input types | Voltage, Resistance or Universal PTxxx inputs | |
Number of channels | 8 | |
ADC Type | 24-bit delta-sigma | |
Sampling Rate IOLITE | Simultaneous 10, 20, 40, 50, 80, 100, 200, 500, 1k, 2k, 5k, 10k S/s (optional) | |
Sampling Rate OBSIDIAN | 100 S/s | |
Voltage mode | ||
Ranges | ±1 V | ±100 mV |
Input Accuracy | ±0.02 % of reading ±0.01 % of range | |
Typical Noise Floor @ 10 / 100 / 1k / 10k S/s | -130 dB / -120 dB / -110 dB / -104 dB | -120 dB / -108 dB / -98 dB / -90 dB |
Offset Drift | Typ. 0.05 μV/K (Max. 0.2 μV/K) | Typ. 0.01 μV/K (Max. 0.1 μV/K) |
Gain Drift | Typ. 2 ppm/K (Max. 10 ppm/K) | |
Gain Linearity | < 0.007 % | |
Input Coupling | DC | |
Input Impedance | 10 MΩ | |
Temperature mode | ||
Ranges | PT500, PT1000, PT2000 | PT100, PT200 |
Excitation current | 150 uA | 400 uA |
Measurement range | -200 °C to +850 °C | |
Accuracy | ±0.02 % of reading ±0.2 °C | |
Temperature Drift | Typ. ±2 ppm/K (Max. ±10 ppm/K) | |
Input Connection | 3-wire or 4-wire | |
Resistance mode | ||
Ranges | 0…10 kΩ | 0…1 kΩ |
Excitation current | 150 uA | 400 uA |
Accuracy | ±0.02 % of reading ±0.008 % of range | |
Input Connection | 3-wire or 4-wire | |
Additional Specifications | ||
Rack | IOLITEir-8xRTD-HS | |
Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
Power supply | 9 - 48 V DC | |
Power consumption | Typ. 3.5 W (Max. 4.3 W) | |
Weight | 325 g | 225 g |
Dimensions | 128.4 x 115.4 x 30.1 mm | |
Additional Specifications | ||
Modular | IOLITEi-8xRTD-HS | |
Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | Terminal Block Weidmueller SL 2.50-04 |
Isolation voltage | 1000 Vpeak channel to ground & channel to channel | |
Power supply | 9 - 48 V DC | |
Power consumption | Typ. 3.5 W (Max. 4.7 W) | |
Weight | 585 g | 485 g |
Dimensions | 137 x 115.0 x 35.0 mm | |
Rev: 1701151200 |
Технические характеристики IOLITEi-8xRTDp
Analog inputs | |||
---|---|---|---|
Input types | Voltage, resistor or universal PTxxx inputs | ||
Number of channels | 8 | ||
ADC Type | 24-bit delta-sigma | ||
Sampling Rate | Simultaneous 100 S/s | ||
Voltage Mode | |||
Ranges | ±1 V | ±100 mV | |
Input Accuracy | ±0.02 % of reading ±0.01 % of range ±10 μV | ±0.02 % of reading ±0.01 % of range ±10 μV | |
Typical Noise floor @ 10/100 s/sec | -117 dB / -107 dB | -111 dB / -101 dB | |
Gain Drift | Typical 4 ppm/K (max. 10 ppm/K) | Typical 4 ppm/K (max. 10 ppm/K) | |
Offset Drift | Typical 0.05 μV/K (max. 0.2 μV/K) | Typical 0.05 μV/K (max. 0.2 μV/K) | |
Gain Linearity | < 0.01 % | < 0.01 % | |
Input Coupling | DC | DC | |
Input Impedance | 1 MΩ | 1 MΩ | |
Temperature Mode | |||
Ranges | PT200, PT500, PT1000, PT2000 | PT100 | |
Excitation current | 0.4 mA or ±0.4 mA | 2 mA or ±2 mA | |
Excitation type | DC or square wave from 5 Hz to 50 Hz | DC or square wave from 5 Hz to 50 Hz | |
Measurement range | -200 °C to +850 °C | -200 °C to +850 °C | |
Accuracy | ±0.05 % of reading ±0.2 °C | ±0.05 % of reading ±0.2 °C | |
Temperature Drift | typ. ±5 ppm/K (max. ±12 ppm/K ±0.003 °C/K) | typ. ±5 ppm/K (max. ±12 ppm/K ±0.003 °C/K) | |
Input Connection | 2-wire or 4-wire | 2-wire or 4-wire | |
Resolution | < 0.001 °C | < 0.001 °C | |
Resistance Mode | |||
Ranges | 0…10 kΩ | 0…1 kΩ | 0…100 Ω |
Excitation current | 0.4 mA or ±0.4 mA | 2 mA or ±2 mA | 2 mA or ±2 mA |
Excitation type (See 1) | DC or square wave from 5 Hz to 50 Hz | DC or square wave from 5 Hz to 50 Hz | DC or square wave from 5 Hz to 50 Hz |
Accuracy | ±0.02 % of reading ±0.01 % of range | ±0.02 % of reading ±0.01 % of range | ±0.02 % of reading ±0.01 % of range |
Input Connection | 2-wire or 4-wire | 2-wire or 4-wire | 2-wire or 4-wire |
Additional Specifications | |||
Input connectors | Lemo 0B 6pin EEA.0B.306.CLN | ||
Isolation voltage | 210 Vdc or 150 Vacrms channel to ground & channel to channel | ||
Power supply | 9 - 48 V DC | ||
Power consumption | Typ. 2.1 W, Max. 2.7 W | ||
Weight | 330 g | ||
Dimensions | 128.4 x 115.4 x 30.1 mm | ||
Rev: 1667583000 | |||
1) The frequency of the square wave is related to the SR/2. |
Технические характеристики IOLITE-32xDI
Digital Input | |
---|---|
Isolated Input Channels | 32 |
Input low level | -1 V ~ +1 V |
Input high level | -48 V ~ -3 V, +3 V ~ +48 V |
Input high current @ 5 V | UIN < 1 mA |
Input high current @ 30 V | UIN < 1 mA |
Sampling rate | Simultaneous 20 kS/s |
Overvoltage protection | 100 V continuous (250 Vpeak) |
Isolation voltage peak | 1000 V Isolated common GND, groups of 8 ch |
Additional Specifications | |
Input connectors | Terminal block, 2 pole, 4 x 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 |
Power supply | 9 - 48 V DC |
Power out | max. 2 A (unprotected) |
Power consumption | Typ. 1.2 W, Max. 1.9 W |
Weight | 220 g |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
Rev: 1668186000 |
Технические характеристики IOLITE-4xCNT
Counter | |
---|---|
Number of channels | 4 |
Timebase | 100 MHz |
Time base accuracy | Typical: 5 ppm, Max: 20 ppm |
Max. bandwidth | 10 MHz |
Input Filter | 500 ns, 1 μs, 2 μs, 4 μs, 5 μs and 7.5 μs |
Input Level Compatibility | TTL (Low: <0.8 V, High >2 V) |
Input impedance | 100 kΩ pull-up to +3.3 V |
Input Protection | ±25 V continuous |
Counter modes | counting, waveform timing, encoder, gear-tooth sensor |
Isolated Sensor Power Supply | |
Output Voltage +5 V | 5 V +/- 10 % 100 mA max. (400 mA to supply 4 channels) |
Output Voltage +12 V | 12 V +/-10 % 50 mA max. (100 mA to supply 4 channels) |
Isolation | Ch to GND isolation |
Additional Specifications | |
Input connector | 7-pin LEMO 1B series EEG.1B.307.CLNY |
Power Consumption @ 24 V | Typ. 1.9 W |
Power supply | 9 - 48 V DC |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
Технические характеристики IOLITE-32xDO
Digital Output¹ | |
---|---|
Isolated Output Channels | 32 |
Compatibility | Solid state relay |
Maximum sink current | 0.5 A |
Maximum switching voltage | 50 V |
Maximum update rate | depending on EtherCAT master |
Isolation voltage peak | 1000 V Isolated common GND, groups of 8 ch |
Additional Specifications | |
Input connectors | Terminal block, 2 pole, 4 x 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 |
Power supply | 9 - 48 V DC |
Power out | max. 2 A (unprotected) |
Power consumption | Typ. 1.2 W, Max. 2.0 W |
Weight | 230 g |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
¹ Not supported on the OBSIDIAN | |
Rev: 1668186000 |
Технические характеристики IOLITE-8xDI-4xDO
Digital Input | |
---|---|
Isolated Input Channels | 8 |
Input low level | -1 V ~ +1 V |
Input high level | -48 V ~ -3 V, +3 V ~ +48 V |
Input high current @ 5 V | UIN < 1 mA |
Input high current @ 30 V | UIN < 1 mA |
Sampling rate | Simultaneous 40 kS/s |
Overvoltage protection | 100 V continuous (250 Vpeak) |
Isolation voltage peak | 1000 V Isolated common GND |
Digital Output¹ | |
Isolated Output Channels | 4 |
Compatibility | Solid state relay |
Maximum sink current | 0.5 A |
Maximum switching voltage | 50 V |
Maximum update rate | depending on EtherCAT master |
Isolation voltage peak | 1000 V Isolated common GND |
Additional Specifications | |
Input connectors | Terminal block (3 x 2 pole, 2 x 12 pole, 1 x 8 pole) OMNIMATE SL 2.50 / BLF 2.50/180 |
Power supply | 9 - 48 V DC |
Power out | max. 2 A (unprotected) |
Power consumption | 1.8 |
Weight | 184 g |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
¹ Not supported on the OBSIDIAN | |
Rev: 1668186000 |
Технические характеристики IOLITE-16xAO
Analog Output | |
---|---|
Output types | Voltage |
Number of channels | 16 |
Output connector | Terminal block |
DAC Resolution | 16-bit |
Update Rate | 20000 S/s (see 1) |
Update Rate | |
Full Scale Output Range | ±10 V (see 2) |
Accuracy (typ.) | 0.05 % ±1.5 mV (0 to 20 mA load) |
Temperature gain drift (typ.) | ±10 ppm/K |
Temperature offset drift (typ.) | ±5 uV/K |
Output impedance | < 1 Ω DC |
Minimal load resistance | 500 Ω load @ 10 V output |
Settling time (0.05 % of set value) | 140 µs |
Max slew rate | 0.20 V/µs |
Max capacitive load (2 % overshoot) | 10 nF |
Output protection | Short circuit protected |
Current limit | 20 mA per channel (160 mA per module) |
Isolation | Channel to ground |
Additional Specifications | |
Output connectors | Terminal block, 2 pole, 4 x 9 pole OMNIMATE SL 2.50 / BLF 2.50/180 |
Power supply | 9 - 48 V DC |
Power out | max. 2 A |
Power consumption | Typ. 4.5 W, Max. 8 W |
Weight | 210 g |
Slice Dimensions | 128.4 x 115.4 x 30.1 mm |
Rev: 1603360800 | |
1) Only asynchronous mode is supported in Dewesoft, function generator is not supported | |
2) Only DC output voltage, function generator not supported |
Технические характеристики IOLITEi-4xCAN-FD
CAN ports specification | |
---|---|
Number of ports | 4 |
Interface type | CAN-FD, CAN 2.0B |
CAN 2.0B data rate | Up to 1 Mbit/s (see 1) |
CAN-FD data rate | Up to 5 Mbit/s (see 1) |
Special protocols | J1939, XCP, OBDII |
Galvanic isolation | Isolated |
Bus pin fault protection | ±36 V |
Power specification | |
Power supply | 9 - 48 V DC |
Maximum sensor power consumption | 5 V / max. 250 mA (1.25 W) 12 V / max. 90 mA (1.1 W) |
Maximum power consumption | max. 2 W (no load) |
Sensor supply isolation | Channel to ground |
Additional Specifications | |
Rack | IOLITEir-4xCAN-FD |
Input connector | DSUB9 |
Power supply | 9 - 48 V DC |
Weight | 310 g |
Slice Dimensions | 128.4 x 118.4 x 30.14 mm |
Additional Specifications | |
Modular | IOLITEi-4xCAN-FD |
Input connector | DSUB9 |
Power supply | 9 - 48 V DC |
Weight | 550 g |
Slice Dimensions | 136.75 x 115.0 x 35.0 mm |
1) For more information please see the manual. |
